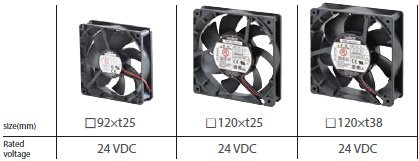

*1. Compared with □120×t38 AC axial fans
R89F-D
產品特色

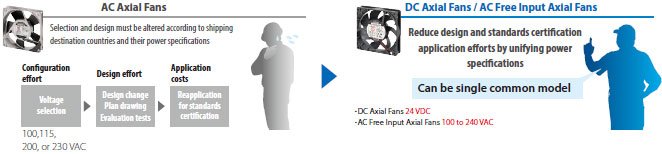

Reducing required design work through unified power supply voltage
For less design effort
DC Axial Fans R89F-DS
Not affected by changes in voltage so no need to redesign for export

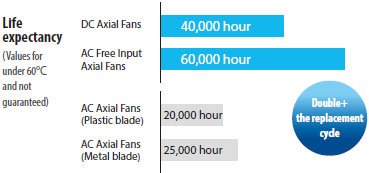

Also, the service life of the fans themselves increased by twofold*1 or more
No need to connect ground lines

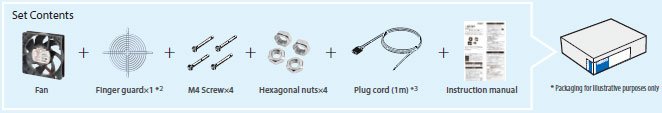

This Set Model allows you to purchase the necessary parts with a single order.
There’s no need to purchase and manage each parts, and this reduces the hassle of parts management.
*2. Model differs according to the number of finger guards. Refer to Set Model on Catalog for details.
*3. AC Free Input Axial Fans only
Model Number Structure

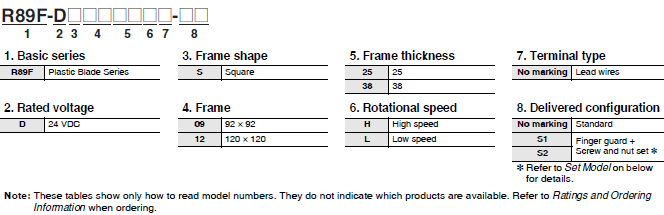

Model Number Legend
Ordering Information
DC Axial Fans
| Series | Size (mm) | Speed | Model |
|---|---|---|---|
| R89F-D series | 92 × 92 × t25 | High | R89F-DS0925H |
| 92 × 92 × t25 | Low | R89F-DS0925L | |
| 120 × 120 × t25 | High | R89F-DS1225H | |
| 120 × 120 × t25 | Low | R89F-DS1225L | |
| 120 × 120 × t38 | High | R89F-DS1238H | |
| 120 × 120 × t38 | Low | R89F-DS1238L |
Options (Order Separately)
| Name | Model |
|---|---|
| Finger Guard | R87F-FG[] |
| Filter | R87F-FL[](S) |
Note: Mounting screws are not provided.
Set Model
| Model | Set Contents |
|---|---|
| R89F-DS0925H-S1 | Fan, Finger guard × 1, M4 Screw (40 mm) × 4 and nut set × 4 |
| R89F-DS0925L-S1 | Fan, Finger guard × 1, M4 Screw (40 mm) × 4 and nut set × 4 |
| R89F-DS1225H-S1 | Fan, Finger guard × 1, M4 Screw (40 mm) × 4 and nut set × 4 |
| R89F-DS1225L-S1 | Fan, Finger guard × 1, M4 Screw (40 mm) × 4 and nut set × 4 |
| R89F-DS1238H-S1 | Fan, Finger guard × 1, M4 Screw (55 mm) × 4 and nut set × 4 |
| R89F-DS1238L-S1 | Fan, Finger guard × 1, M4 Screw (55 mm) × 4 and nut set × 4 |
| R89F-DS0925H-S2 | Fan, Finger guard × 2, M4 Screw (40 mm) × 4 and nut set × 4 |
| R89F-DS0925L-S2 | Fan, Finger guard × 2, M4 Screw (40 mm) × 4 and nut set × 4 |
| R89F-DS1225H-S2 | Fan, Finger guard × 2, M4 Screw (40 mm) × 4 and nut set × 4 |
| R89F-DS1225L-S2 | Fan, Finger guard × 2, M4 Screw (40 mm) × 4 and nut set × 4 |
| R89F-DS1238H-S2 | Fan, Finger guard × 2, M4 Screw (55 mm) × 4 and nut set × 4 |
| R89F-DS1238L-S2 | Fan, Finger guard × 2, M4 Screw (55 mm) × 4 and nut set × 4 |
R89F-DS0925[] DC Axial Fans (92 × 92 × t25 mm)
| Model | Rated voltage |
Permitted voltage fluctuation range |
Fre- quency [Hz] |
Rated current [A] * |
Rated input [W] * |
Rated rotational speed [r/min-1] * |
Maximum flow rate [m3/min] * |
Maximum static pressure [Pa] * |
Noise [dB] * |
|---|---|---|---|---|---|---|---|---|---|
| R89F-DS0925H | 24 VDC | 12 to 27.6 V | --- | 0.15 | 3.6 | 3550 | 1.66 | 56.1 | 39 |
| R89F-DS0925L | 24 VDC | 12 to 27.6 V | --- | 0.08 | 1.92 | 2650 | 1.24 | 32.2 | 30 |
* An asterisk (*) indicates a nominal value.
R89F-DS1225[] DC Axial Fans (120 × 120 × t25 mm)
| Model | Rated voltage |
Permitted voltage fluctuation range |
Fre- quency [Hz] |
Rated current [A] * |
Rated input [W] * |
Rated rotational speed [r/min-1] * |
Maximum flow rate [m3/min] * |
Maximum static pressure [Pa] * |
Noise [dB] * |
|---|---|---|---|---|---|---|---|---|---|
| R89F-DS1225H | 24 VDC | 20.4 to 27.6 V | --- | 0.47 | 11.28 | 4100 | 3.68 | 120 | 51 |
| R89F-DS1225L | 24 VDC | 12 to 27.6 V | --- | 0.17 | 4.08 | 2850 | 2.5 | 64 | 40 |
* An asterisk (*) indicates a nominal value.
R89F-DS1238[] DC Axial Fans (120 × 120 × t38 mm)
| Model | Rated voltage |
Permitted voltage fluctuation range |
Fre- quency [Hz] |
Rated current [A] * |
Rated input [W] * |
Rated rotational speed [r/min-1] * |
Maximum flow rate [m3/min] * |
Maximum static pressure [Pa] * |
Noise [dB] * |
|---|---|---|---|---|---|---|---|---|---|
| R89F-DS1238H | 24 VDC | 20.4 to 27.6 V | --- | 0.5 | 12 | 3600 | 3.88 | 135 | 49 |
| R89F-DS1238L | 24 VDC | 14 to 27.6 V | --- | 0.11 | 2.64 | 1950 | 2.1 | 39.6 | 32 |
* An asterisk (*) indicates a nominal value.
R87F-FG Finger Guards
Ordering Information
| Size | Model number | Weight (g) |
|---|---|---|
| 150 dia. | R87F-FG150 | Approx. 58 |
| 120 × 120 | R87F-FG120 | Approx. 45 |
| 92 × 92 | R87F-FG90 | Approx. 25 |
| 80 × 80 | R87F-FG80 | Approx. 20 |
Applicable Axial Fans
| AC Axial Fan | Finger Guard | |
|---|---|---|
| Size | Model | |
| 150 dia. | R87T-A[]A0 Series | R87F-FG150 |
| 120 × 120 | R89F-DS1225[] series R89F-DS1238[] series R89F-MS1238HP |
R87F-FG120 |
| R87F-A[]A1 Series R87T-A[]A1 Series |
||
| 92 × 92 | R89F-DS0925[] series R89F-MS0938[]P series R87F-A[]A9 Series |
R87F-FG90 |
| 80 × 80 | R87F-A[]A8 Series R87T-A[]A8 Series |
R87F-FG80 |
Note: Finger Guards reduce the flow rate by approximately 2% to 5%.
R87F-FL Filters
Ordering Information
Filter
| Size | Model number | Weight (g) |
|---|---|---|
| 120 × 120 | R87F-FL120 | Approx. 43 |
| 92 × 92 | R87F-FL90 | Approx. 30 |
| 80 × 80 | R87F-FL80 | Approx. 21 |
| 120 × 120 | R87F-FL120S | Approx. 19 |
Note: The filter contains one medium.
Media
| Size | Model number |
|---|---|
| 120 × 120 | R87F-FL120-M120 |
| 92 × 92 | R87F-FL90-M90 |
| 80 × 80 | R87F-FL80-M80 |
Note: Use the following model number to order the Media only.
R87F-FL[]-M[] ([]: 120, 90, or 80)
(One set containing five Media, weight: 5 g max.)
R87F-FL[]-M[] ([]: 120, 90, or 80)
(One set containing five Media, weight: 5 g max.)
Applicable Axial Fans
| AC Axial Fan | Filter | ||
|---|---|---|---|
| Size | Model | Plastic | Aluminum |
| 150 dia. | R87T-A[]A0 Series | --- | --- |
| 120 × 120 | R89F-DS1225[] series | R87F-FL120 | R87F-FL120S |
| R89F-DS1238[] series | |||
| R89F-MS1238HP | |||
| R87F-A[]A1 Series R87T-A[]A1 Series |
|||
| 92 × 92 | R87F-A[]A9 Series | R87F-FL90 | --- |
| 80 × 80 | R87F-A[]A8 Series R87T-A[]A8 Series |
R87F-FL80 | --- |
Note: Filters reduce the flow rate by approximately 20% to 40%.
Ensure that there is no clogging.
Ensure that there is no clogging.
R89F-DS0925[] DC Axial Fans (92 × 92 × t25 mm)
Characteristics
| Motor type | Brushless DC motor | |
|---|---|---|
| Terminal type | Lead wires | |
| Insulation class | Class E (UL class A) | |
| Insulation resistance | 10 MΩ min. (at 500 VDC) Between lead wire conductor and frame |
|
| Insulation withstand voltage | 500 VAC (1 minute) Between lead wire conductor and frame |
|
| Ambient operating temperature | -20 to +70°C (no icing) | |
| Ambient storage temperature | -30 to +70°C (no icing) | |
| Ambient humidity | 20% to 85% | |
| Protection | Restraint burnout protection (Current blocking function) Power supply lead wire reverse polarity protection |
|
| Materials | Frame | PBT/ABS alloy (UL94V-0) |
| Blades | PBT/ABS alloy (UL94V-0) | |
| Bearings | Ball bearings | |
| Weight | Approx. 100 g | |
| Compliant standards | EN/IEC60950-1 EN/IEC60335-2-80 (CE marking compliant) EAC RCM |
|
| Certified standards | UL: UL507 (Recognition) CSA: C22.2 No.113 |
|
R89F-DS1225[] DC Axial Fans (120 × 120 × t25 mm)
Characteristics
| Motor type | Brushless DC motor | |
|---|---|---|
| Terminal type | Lead wires | |
| Insulation class | Class E (UL class A) | |
| Insulation resistance | 10 M min. (at 500 VDC) Between lead wire conductor and frame |
|
| Insulation withstand voltage | 500 VAC (1 minute) Between lead wire conductor and frame |
|
| Ambient operating temperature | -20 to +70°C (no icing) | |
| Ambient storage temperature | -30 to +70°C (no icing) | |
| Ambient humidity | 20% to 85% | |
| Protection | Restraint burnout protection (Current blocking function) Power supply lead wire reverse polarity protection |
|
| Materials | Frame | PBT/ABS alloy (UL94V-0) |
| Blades | PPHOX (UL94V-1) | |
| Bearings | Ball bearings | |
| Weight | Approx. 280 g | |
| Compliant standards | EN/IEC60950-1 EN/IEC60335-2-80 CE marking compliant) EAC RCM |
|
| Certified standards | UL: UL507 (Recognition) CSA: C22.2 No.113 |
|
R89F-DS1238[] DC Axial Fans (120 × 120 × t38 mm)
Characteristics
| Motor type | Brushless DC motor | |
|---|---|---|
| Terminal type | Lead wires | |
| Insulation class | Class E (UL class A) | |
| Insulation resistance | 10 M min. (at 500 VDC) Between lead wire conductor and frame |
|
| Insulation withstand voltage | 500 VAC (1 minute) Between lead wire conductor and frame |
|
| Ambient operating temperature | -20 to +70°C (no icing) | |
| Ambient storage temperature | -30 to +70°C (no icing) | |
| Ambient humidity | 20% to 85% | |
| Protection | Restraint burnout protection (Current blocking function) Power supply lead wire reverse polarity protection |
|
| Materials | Frame | PBT/ABS alloy (UL94V-0) |
| Blades | PPHOX (UL94V-1) | |
| Bearings | Ball bearings | |
| Weight | Approx. 330 g | |
| Compliant standards | EN/IEC60950-1 EN/IEC60335-2-80 (CE marking compliant) EAC RCM |
|
| Certified standards | UL: UL507 (Recognition) CSA: C22.2 No.113 |
|
（單位：mm）

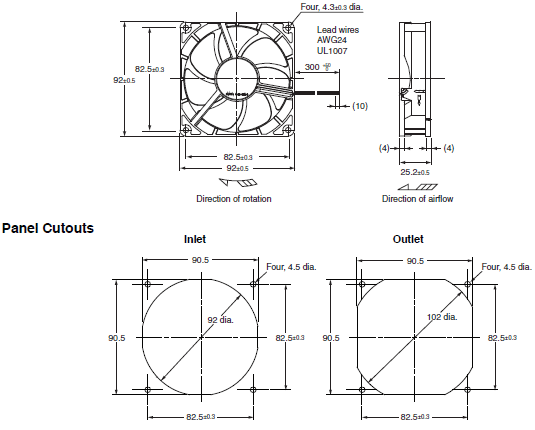

R89F-DS0925[] DC Axial Fans (92 × 92 × t25 mm)

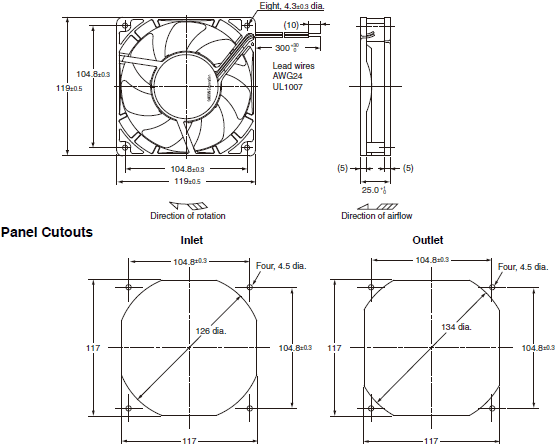

R89F-DS1225[] DC Axial Fans (120 × 120 × t25 mm)

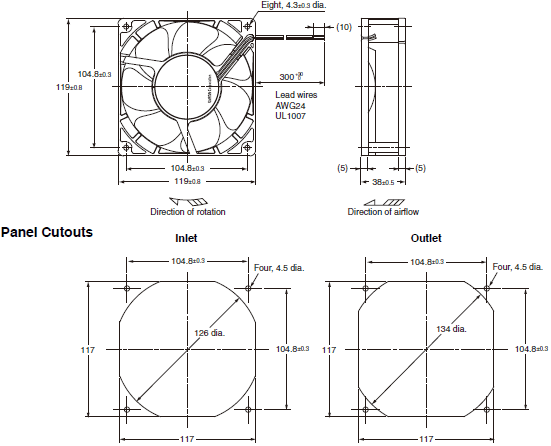

R89F-DS1238[] DC Axial Fans (120 × 120 × t38 mm)
R87F-FG Finger Guards
Material: steel, Joints: spot welded, Surface: nickel-chrome plated

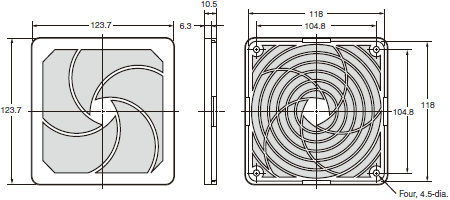

R87F-FG150

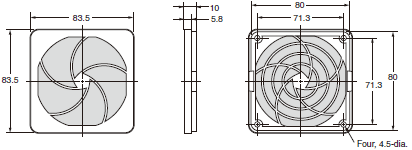

R87F-FG120

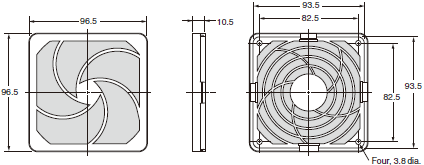

R87F-FG90
R87F-FG80
R87F-FL Filters
R87F-FL120
R87F-FL90
R87F-FL80
R87F-FL120S
Note: 1. The Screen Filter is made using aluminium and has an EMI/RFI shielding effect.
2. When mounting the Screen Filter, make sure that it does not come in contact with the fan blades.
3. The screen is a 30 × 30 aluminum mesh.
(30 aluminum wires per inch)
2. When mounting the Screen Filter, make sure that it does not come in contact with the fan blades.
3. The screen is a 30 × 30 aluminum mesh.
(30 aluminum wires per inch)
