R89F-M

R89F-M

產品特色
Reducing required design work through unified power supply voltage
商品洽詢
- 產品描述 - 種類 額定/性能 外觀尺寸 型錄 操作手冊 CAD

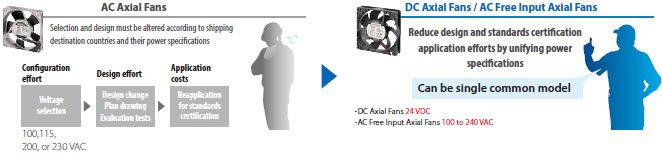

For less design effort

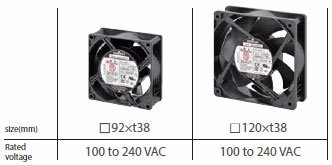

AC Free Input Axial Fans R89-MS

R89F-M 特長 2

Note: “AC Free Input Axial Fan” refers to an axial fan which allows multiple input voltage ranging 100 to 240 VAC.

Not affected by changes in voltage so no need to redesign for export

R89F-M 特長 3

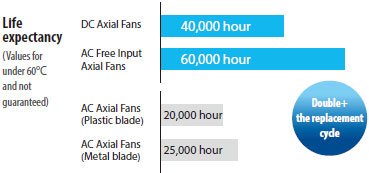

Also, the service life of the fans themselves increased by twofold*1 or more

R89F-M 特長 4

*1. Compared with □120×t38 AC axial fans

No need to connect ground lines

R89F-M 特長 5

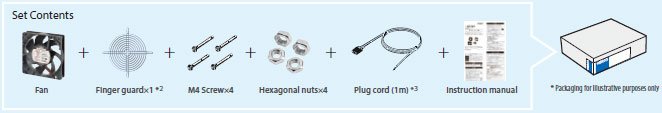

This Set Model allows you to purchase the necessary parts with a single order.

There’s no need to purchase and manage each parts, and this reduces the hassle of parts management.

R89F-M 特長 7

*2. Model differs according to the number of finger guards. Refer to Set Model on Catalog for details.
*3. AC Free Input Axial Fans only

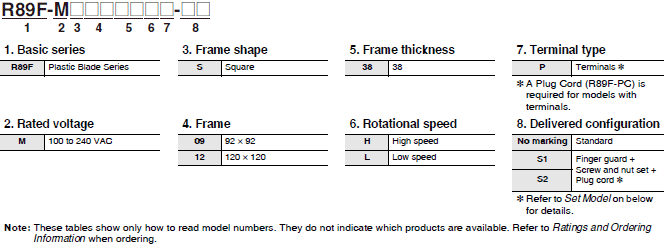

Model Number Structure

Model Number Legend

R89F-M 種類 2

Ordering Information

AC Free Input Axial Fans

Series Size (mm) Speed Model
R89F-M series 92 × 92 × t38 High R89F-MS0938HP
92 × 92 × t38 Low R89F-MS0938LP
120 × 120 × t38 High R89F-MS1238HP

Options (Order Separately)

Name Model
Plug Cord R89F-PC-[]
Finger Guard R87F-FG[]
Filter R87F-FL[](S)

Note: Mounting screws are not provided.

Set Model

Model Set Contents
R89F-MS0938HP-S1 Fan, Finger guard × 1, M4 Screw (55 mm) × 4 and nut set × 4, Plug cord (1 m)
R89F-MS0938LP-S1 Fan, Finger guard × 1, M4 Screw (55 mm) × 4 and nut set × 4, Plug cord (1 m)
R89F-MS1238HP-S1 Fan, Finger guard × 1, M4 Screw (55 mm) × 4 and nut set × 4, Plug cord (1 m)
R89F-MS0938HP-S2 Fan, Finger guard × 2, M4 Screw (55 mm) × 4 and nut set × 4, Plug cord (1 m)
R89F-MS0938LP-S2 Fan, Finger guard × 2, M4 Screw (55 mm) × 4 and nut set × 4, Plug cord (1 m)
R89F-MS1238HP-S2 Fan, Finger guard × 2, M4 Screw (55 mm) × 4 and nut set × 4, Plug cord (1 m)

R89F-MS0938[] AC Free Input Axial Fans (92 × 92 × t38 mm)

Model Rated
voltage		 Permitted
voltage
fluctuation
range		 Fre-
quency
[Hz]		 Rated
current
[A] *		 Rated
input
[W] *		 Rated
rotational
speed
[r/min-1]
*		 Maximum
flow rate
[m3/min]
*		 Maximum
static
pressure
[Pa] *		 Noise
[dB] *
R89F-MS0938HP 100 to
240 VAC		 90 to 264 V 50/60 0.08 4.5 3850 1.5 90 40
R89F-MS0938LP 100 to
240 VAC		 90 to 264 V 50/60 0.06 3.0 3100 1.18 56 33

* An asterisk (*) indicates a nominal value.

R89F-MS1238[] AC Free Input Axial Fans (120 × 120 × t38 mm)

Model Rated
voltage		 Permitted
voltage
fluctuation
range		 Fre-
quency
[Hz]		 Rated
current
[A] *		 Rated
input
[W] *		 Rated
rotational
speed
[r/min-1]
*		 Maximum
flow rate
[m3/min]
*		 Maximum
static
pressure
[Pa] *		 Noise
[dB] *
R89F-MS1238HP 100 to
240 VAC		 90 to 264 V 50/60 0.08 4.4 3250 3.0 84 42

* An asterisk (*) indicates a nominal value.

R89F-PC Plug Cord

Cable length Model Weight
1 m R89F-PC Approx. 38 g
2 m R89F-PC-20 Approx. 74 g

R87F-FG Finger Guards

Ordering Information

Size Model number Weight (g)
150 dia. R87F-FG150 Approx. 58
120 × 120 R87F-FG120 Approx. 45
92 × 92 R87F-FG90 Approx. 25
80 × 80 R87F-FG80 Approx. 20

Applicable Axial Fans

AC Axial Fan Finger Guard
Size Model
150 dia. R87T-A[]A0 Series R87F-FG150
120 × 120 R89F-DS1225[] series
R89F-DS1238[] series
R89F-MS1238HP		 R87F-FG120
R87F-A[]A1 Series
R87T-A[]A1 Series
92 × 92 R89F-MS0938[]P series R87F-FG90
92 × 92 R87F-A[]A9 Series R87F-FG90
80 × 80 R87F-A[]A8 Series
R87T-A[]A8 Series		 R87F-FG80

Note: Finger Guards reduce the flow rate by approximately 2% to 5%.

R87F-FL Filters

Ordering Information

Filter

Size Model number Weight (g)
120 × 120 R87F-FL120 Approx. 43
92 × 92 R87F-FL90 Approx. 30
80 × 80 R87F-FL80 Approx. 21
120 × 120 R87F-FL120S Approx. 19

Note: The filter contains one medium.

Media

Size Model number
120 × 120 R87F-FL120-M120
92 × 92 R87F-FL90-M90
80 × 80 R87F-FL80-M80

Note: Use the following model number to order the Media only.
R87F-FL[]-M[] ([]: 120, 90, or 80)
(One set containing five Media, weight: 5 g max.)

Applicable Axial Fans

AC Axial Fan Filter
Size Model Plastic Aluminum
150 dia. R87T-A[]A0 Series --- ---
120 × 120 R89F-DS1225[] series R87F-FL120 R87F-FL120S
R89F-DS1238[] series
R89F-MS1238HP
R87F-A[]A1 Series
R87T-A[]A1 Series
92 × 92 R87F-A[]A9 Series R87F-FL90 ---
80 × 80 R87F-A[]A8 Series
R87T-A[]A8 Series		 R87F-FL80 ---

Note: Filters reduce the flow rate by approximately 20% to 40%.
Ensure that there is no clogging.

R89F-MS0938[] AC Free Input Axial Fans (92 × 92 × t38 mm)

Characteristics

Motor type Brushless DC motor
Terminal type Terminals
Insulation class Class E (UL class A)
Insulation resistance 10 M min. (at 500 VDC)
Between lead wire conductor and frame
Insulation withstand voltage 1,500 VAC (1 minute)
Between input terminal and frame
Ambient operating temperature -20 to 75°C (with no icing)
Ambient storage temperature -30 to +75°C (no icing)
Ambient humidity 20% to 85%
Protection Restraint burnout protection (Current blocking function)
Materials Frame PBT/PC alloy (UL94V-0)
Blades PBT/PC alloy (UL94V-0)
Bearings Ball bearings
Weight Approx. 250 g
Compliant standards EN/IEC60950-1
EN/IEC60335-2-80
CE marking compliant)
EAC, RCM
PSE
Certified standards UL: UL507 (Recognition)
CSA: C22.2 No.113

R89F-MS1238[] AC Free Input Axial Fans (120 × 120 × t38 mm)

Characteristics

Motor type Brushless DC motor
Terminal type Terminals
Insulation class Class E (UL class A)
Insulation resistance 10 M min. (at 500 VDC)
Between lead wire conductor and frame
Insulation withstand voltage 1,500 VAC (1 minute)
Between input terminal and frame
Ambient operating temperature -20 to 75°C (with no icing)
Ambient storage temperature -30 to +75°C (no icing)
Ambient humidity 20% to 85%
Protection Restraint burnout protection (Current blocking function)
Materials Frame PBT/PC alloy (UL94V-0)
Blades PPHOX (UL94V-1)
Bearings Ball bearings
Weight Approx. 290 g
Compliant standards EN/IEC60950-1
EN/IEC60335-2-80
(CE marking compliant)
EAC, RCM
PSE
Certified standards UL: UL507 (Recognition)
CSA: C22.2 No.113

（單位：mm）

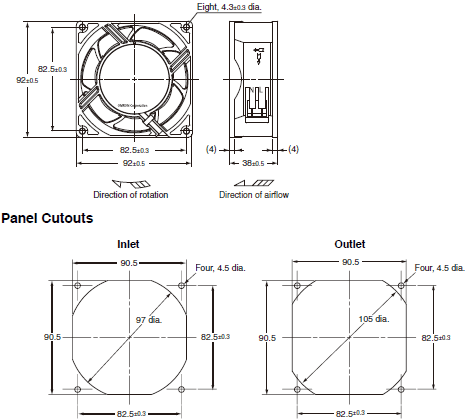

R89F-MS0938[] AC Free Input Axial Fans (92 × 92 × t38 mm)

R89F-M 外觀尺寸 1

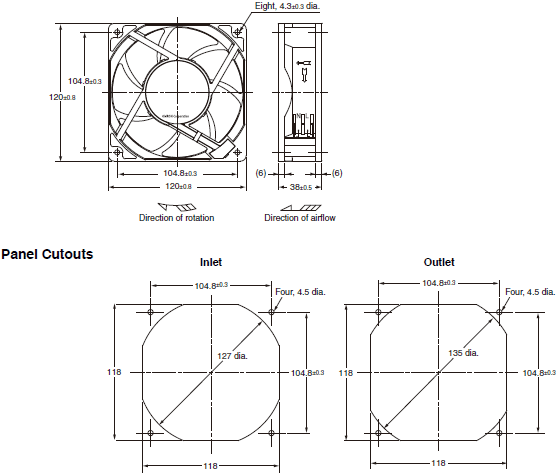

R89F-MS1238[] AC Free Input Axial Fans (120 × 120 × t38 mm)

R89F-M 外觀尺寸 2

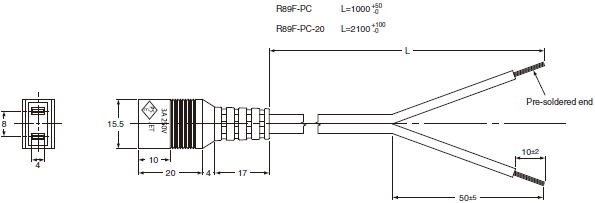

R89F-PC Plug Cord

R89F-PC

R89F-M 外觀尺寸 4

Note: This Plug Cord is used for Axial Fans with terminals.

R87F-FG Finger Guards

Material: steel, Joints: spot welded, Surface: nickel-chrome plated

R87F-FG150

R89F-M 外觀尺寸 6

R87F-FG120

R89F-M 外觀尺寸 7

R87F-FG90

R89F-M 外觀尺寸 8

R87F-FG80

R89F-M 外觀尺寸 9

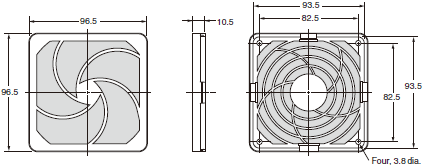

R87F-FL Filters

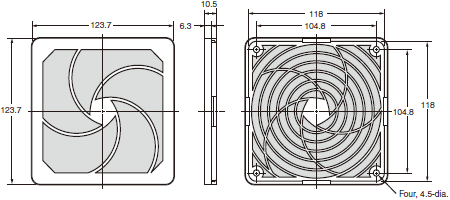

R87F-FL120

R89F-M 外觀尺寸 11

R87F-FL90

R89F-M 外觀尺寸 12

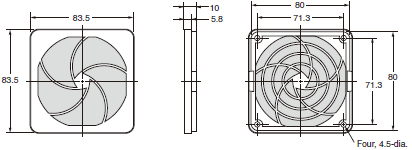

R87F-FL80

R89F-M 外觀尺寸 13

R87F-FL120S

R89F-M 外觀尺寸 14

Note: 1. The Screen Filter is made using aluminium and has an EMI/RFI shielding effect.
2. When mounting the Screen Filter, make sure that it does not come in contact with the fan blades.
3. The screen is a 30 × 30 aluminum mesh.
(30 aluminum wires per inch)
