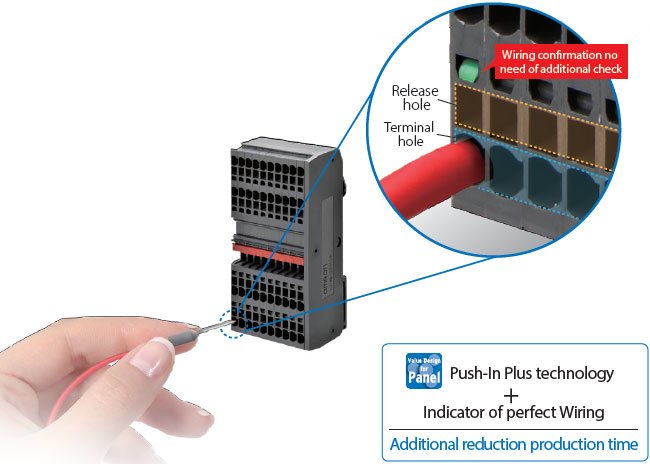

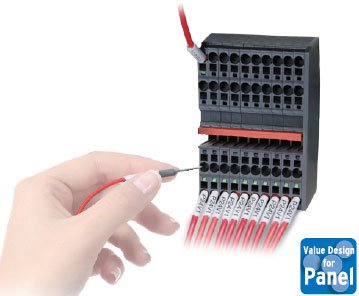

A green indicator comes out when a cable is insert deeply into the terminal hole giving immediate confirmation of the proper wiring insertion.
Enabling secure wiring.
XW6T
產品特色
Our Value Design Products Increase the Value of Your Control Panels. Contributing to downsize control panels and save work. It can proper wiring without skillful operators, because of indicators make wiring completion simply visible.
Wiring Completion is Simply Visible
Production
Wiring indicator for confirmation of a correct operation.

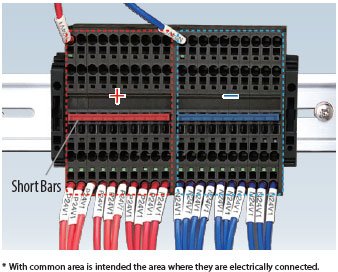

No Troublesome Crossover Wiring Required. Easy Recognition of the Common Area .*
Colored Short Bars are built in. You can easily know the common area thanks to the visible Short Bars placed at the front face of the Terminal Blocks.
Quick Inspection and Installation.

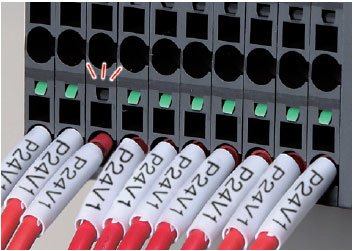

You can immediately judge the wiring state thanks to the visible indicators avoiding errors, such as non-wiring and incomplete wiring.
Maintenance

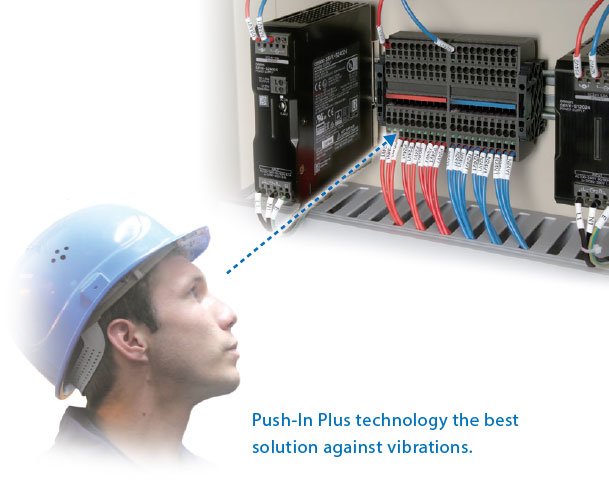

You can judge the wiring state Just looking at the indicators. No Retightening is Required.
Simply check the indicators for wiring maintenance.
No retightening is required, the terminals are firmly hold in place thanks to Push-In Plus technology.
Help to Downsize Control Panel and Reduce Design Time.
Design

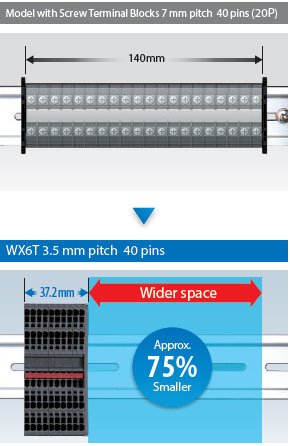

The Best-in-Class Slim Models Available to Help Downsize Control Panels.
Example of 40 pins

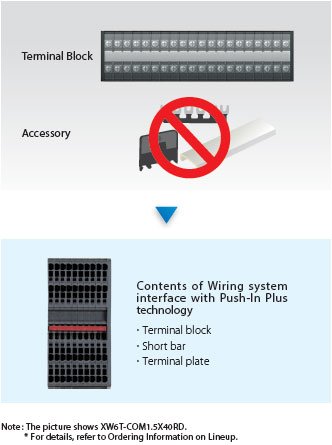

No Need to Select Accessories for Making Common Part.
Necessary Items for a Wiring System Interface Are Contained in a Set.
Push-In Plus technology for Easy Wiring
Now you can use Push-In Plus technology to reduce wiring time and work: Just insert wires, no tools required.
Easy to Insert
OMRON’s Push-In Plus technology are as easy as inserting to an earphone jack. They help reduce the work load and improve wiring quality.
Held Firmly in Place
Even though less insertion force is required, the wires are held firmly in place. The advanced mechanism and the manufacturing technology produce a spring that ensures better workability and reliability. The same strength as screw terminal blocks is provided.

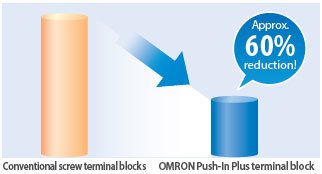

Greatly Reduce Wiring Work with Push-In Plus technology
*Information for Push-In Plus and screw terminal blocks is based on OMRON's actual measurement value data.
No Retightening Required
If you use Push-In Plus technology you don't need to tighten screws, necessary for screw TB.
Wiring Possible with Stranded Wires
You can insert wires with ferrules or you can also insert solid wires or stranded wires.
Work with Both Hands
Thanks to the holding mechanism of the screw you can easily wire stranded cables using both hands.
Model Number Legend
Model Reference
Use this legend when determining the product specifications from the model number. Select models from Ordering Information for orders.
Ordering Information
Model
| Appearance and internal wiring |
Maximum Conductor Cross Section Fine Stranded (mm2) |
Number of pins |
Color of Short Bars |
Weight (g) | Model |
|---|---|---|---|---|---|
 |
1.5 | 8 | Red | Approx. 16 | XW6T-COM1.5X8RD |
| Blue | XW6T-COM1.5X8BL | ||||
| Yellow | XW6T-COM1.5X8YL | ||||
 |
12 | Red | Approx. 23 | XW6T-COM1.5X12RD | |
| Blue | XW6T-COM1.5X12BL | ||||
| Yellow | XW6T-COM1.5X12YL | ||||
 |
16 | Red | Approx. 29 | XW6T-COM1.5X16RD | |
| Blue | XW6T-COM1.5X16BL | ||||
| Yellow | XW6T-COM1.5X16YL | ||||
 |
20 | Red | Approx. 36 | XW6T-COM1.5X20RD | |
| Blue | XW6T-COM1.5X20BL | ||||
| Yellow | XW6T-COM1.5X20YL | ||||
 |
40 | Red | Approx. 68 | XW6T-COM1.5X40RD | |
| Blue | XW6T-COM1.5X40BL | ||||
| Yellow | XW6T-COM1.5X40YL | ||||
 |
2.5 | 8 | Red | Approx. 28 | XW6T-COM2.5X8RD |
| Blue | XW6T-COM2.5X8BL | ||||
| Yellow | XW6T-COM2.5X8YL | ||||
 |
12 | Red | Approx. 41 | XW6T-COM2.5X12RD | |
| Blue | XW6T-COM2.5X12BL | ||||
| Yellow | XW6T-COM2.5X12YL | ||||
 |
16 | Red | Approx. 53 | XW6T-COM2.5X16RD | |
| Blue | XW6T-COM2.5X16BL | ||||
| Yellow | XW6T-COM2.5X16YL | ||||
 |
20 | Red | Approx. 65 | XW6T-COM2.5X20RD | |
| Blue | XW6T-COM2.5X20BL | ||||
| Yellow | XW6T-COM2.5X20YL | ||||
 |
40 | Red | Approx. 126 | XW6T-COM2.5X40RD | |
| Blue | XW6T-COM2.5X40BL | ||||
| Yellow | XW6T-COM2.5X40YL |
Note: Products will be delivered in the form of common terminal blocks (with terminal blocks, a short bar, and an end cover)
as shown in the appearance.
(Example) XW6T-COM1.5X8RD set contents
Terminal block unit (4 terminals) × 2
Short bar (two-poles, red) × 1
End cover × 1
as shown in the appearance.
(Example) XW6T-COM1.5X8RD set contents
Terminal block unit (4 terminals) × 2
Short bar (two-poles, red) × 1
End cover × 1
Accessories (Order separately)
Terminal Block Unit (For addition)
| Appearance and internal wiring |
Applicable Terminal Blocks | Model | Application |
|---|---|---|---|
 |
XW6T-COM1.5X[][][][] | XW6T-COM1.5 | This is a Terminal Block for addition. By using it with Short Bars as a set, Addition of the common points is available. Always attach the end cover after addition to prevent electrical shock. (Refer to Catalog for details.) |
| XW6T-COM2.5X[][][][] | XW6T-COM2.5 |
Short Bars
| Appearance | Applicable Terminal Blocks | Number of poles |
Covering color |
Model* | Application |
|---|---|---|---|---|---|
 |
XW6T-COM1.5X[][][][] | 2 | Red (RD) Blue (BL) Yellow (YL) |
XW5S-P1.5-2[] | Used for crossover wiring between Terminal Blocks. |
| 3 | XW5S-P1.5-3[] | ||||
| 4 | XW5S-P1.5-4[] | ||||
| 5 | XW5S-P1.5-5[] | ||||
| 10 | XW5S-P1.5-10[] | ||||
| XW6T-COM2.5X[][][][] | 2 | Red (RD) Blue (BL) Yellow (YL) |
XW5S-P2.5-2[] | ||
| 3 | XW5S-P2.5-3[] | ||||
| 4 | XW5S-P2.5-4[] | ||||
| 5 | XW5S-P2.5-5[] | ||||
| 10 | XW5S-P2.5-10[] |
* Replace the box ([]) in the model number with the code for the covering color. Selection of the box ([]): RD=Red, BL=Blue,
YL=Yellow
YL=Yellow
End Cover
| Appearance | Applicable Terminal Blocks |
Model | Application |
|---|---|---|---|
 |
XW6T-COM1.5X[][][][] | XW6E-COM1.5 | This part is required to prevent electrical shock. Attach end covers for the Terminal Blocks before use on the following parts. (Refer to Catalog for details.) • Exposed metal surface of the last Terminal Block • Any Terminal Block that is next to a different shape of Terminal Blocks. |
| XW6T-COM2.5X[][][][] | XW6E-COM2.5 |
End Brackets
| Appearance | Width (mm) | Model | Application |
|---|---|---|---|
 |
6 | XW5Z-EP6 | End Brackets are installed on the both ends of the Terminal Blocks to prevent them from moving on DIN Track. |
Note: Short bars and end covers come attached to the common terminal blocks. Please select when necessary for
expansion applications.
expansion applications.
Ratings
| Model | XW6T-COM1.5X[][][][] | XW6T-COM2.5X[][][][] | ||||
|---|---|---|---|---|---|---|
| Appearance |  |
 |
||||
| Applicable wire sizes *1 |
Standard wire | 0.08 mm2 to 1.5 mm2 | 0.14 mm2 to 2.5 mm2 | |||
| Solid wire | 0.14 mm2 to 1.5 mm2 | 0.14 mm2 to 4.0 mm2 | ||||
| Stranded wire with ferrule with Plastic sleeve |
0.14 mm2 to 0.75 mm2 (1.5 mm2) *2 | 0.14 mm2 to 2.5 mm2 | ||||
| Dimensions | A × 78 × 31.3 (Dimension A…8 pins: 9.2, 12 pins: 12.7, 16 pins: 16.2, 20 pins: 19.7, 40 pins: 37.2) |
A × 82.6 × 36.1 (Dimension A…8 pins: 12.6, 12 pins: 17.8, 16 pins: 23.0, 20 pins: 28.2, 40 pins: 54.2) |
||||
| Rated voltage | 500 V | 800 V | ||||
| Rated cuurent *3 | 17.5 A | 24 A | ||||
| IEC rated voltage | 500 V | 800 V | ||||
| IEC rated current *3 | 17.5 A/1.5 mm2 | 24 A/2.5 mm2 | ||||
| Usage Group (UG) | B, C | D | B, C | |||
| UL rated voltage | 300 V | 51 to 150 V | 151 to 300 V |
301 to 600 V |
600 V | |
| UL rated current *3 | 15 A/AWG14 (solid wires) 10 A/AWG16 |
15 A/AWG14 (solid wires) 10 A/AWG16 |
10 A/ AWG16 |
5 A/AWG 16-20 |
20 A/AWG12 (solid wire), 15 A/AWG14 |
|
| Withstand voltage | 1,890 VAC for 1 min (leakage current: 1 mA max.) | 2,000 VAC for 1 min (leakage current: 1 mA max.) |
||||
| End Cover | XW6E-COM1.5 | XW6E-COM2.5 | ||||
| Special tool | XW4Z-00B | XW4Z-00B | ||||
| Applicable nameplates | Commercially available nameplate with 9.5 mm width and 0.5 mm thickness |
Commercially available nameplate with 9.5 mm width and 0.5 mm thickness |
||||
*1. For the recommended applicable wire ranges, refer to Catalog for solid and stranded wires and to Catalog for ferrules.
*2. You can also use ferrules for 1.0 to 1.5 mm2 wires if you use ferrules without insulation sleeve. Refer to Catalog for
details.
*3. Do not apply more than the rated current to the terminal block.
*2. You can also use ferrules for 1.0 to 1.5 mm2 wires if you use ferrules without insulation sleeve. Refer to Catalog for
details.
*3. Do not apply more than the rated current to the terminal block.
Performance
| Ambient temperature range | -40 to 55°C (with no condensation or icing) |
|---|---|
| Ambient humidity range | 5 to 95%RH |
| Insulating material | PA resin |
| Fire resistance | UL94 V-0 |
| Insertion durability | 50 times |
| Vibration resistance | 10 to 150 Hz, Acceleration of 50 m/s2 for 80 min each in X, Y, and Z directions. |
| Shock resistance | 500 m/s2 for 11 ms each in 6 directions 5 times |
| Ambient storage temperature | -40 to 85°C (with no condensation or icing) |
| Ambient storage humidity | 5 to 95%RH |
Standards
Compliant standard
• UL1059
• CSA (C22.2 No.158)
• IEC 60947-7-1
Certification
• cURus (File No. E245101)
（單位：mm）
Model

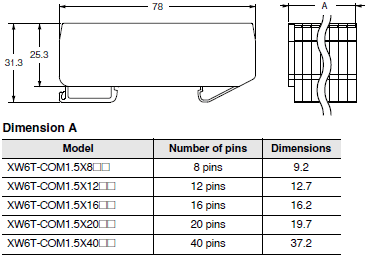

XW6T-COM1.5X[][][][]

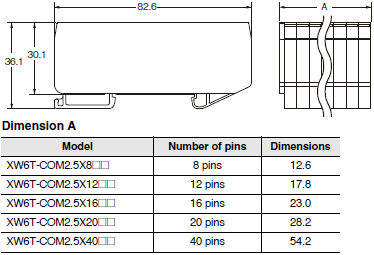

XW6T-COM2.5X[][][][]
Accessories (Order separately)
(For addition) Terminal Block
XW6T-COM1.5
XW6T-COM2.5

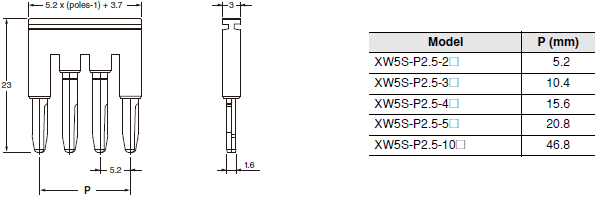

Short Bars

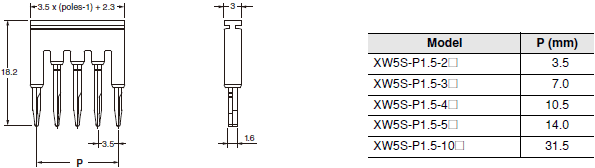

XW5S-P1.5-[]
XW5S-P2.5-[]

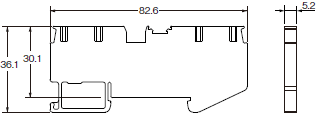

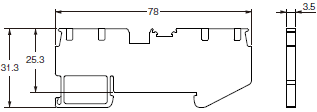

End Cover
XW6E-COM1.5
XW6E-COM2.5

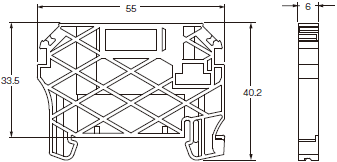

End Brackets
XW5Z-EP6
