E5ED / E5ED-B

E5ED / E5ED-B

產品特色
48 x 96 mm 偵測狀態變動最佳化控制性能。輕鬆兼顧生產力和品質要求。

藉由AI,自動實現如同熟練人員的調整。 揭開生產現場革新序幕。

無需手動作業,自動實現最佳溫度控制,輕鬆兼顧生產效率及品質。

以往的溫度控制器不僅在啟動設定或變動調整上相當耗時外,且若缺乏經驗或領悟力
則難以達到最佳調整,亦對品質造成不小的影響。
為此,OMRON開發了配置「適應控制技術」的溫度控制器,該技術可像熟練者般地
掌握品質變化的狀態,執行自動調整,確保溫度控制始終處在最佳狀態。
避免繁瑣的啟動設定與調整作業,提高作業現場效率。

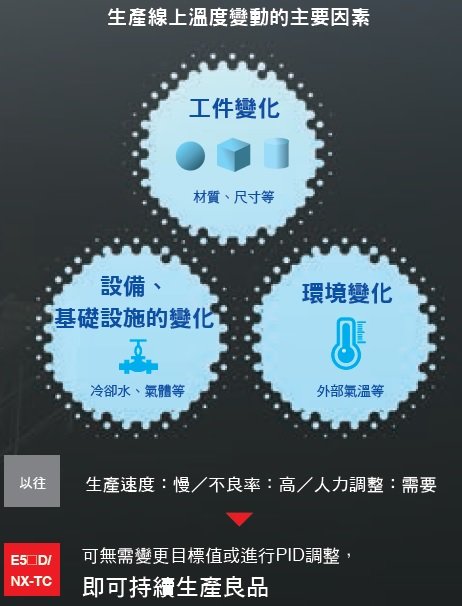

生產線上溫度變動的主要因素

E5ED / E5ED-B 特長 3

答案為業界首創*的「適應控制技術」

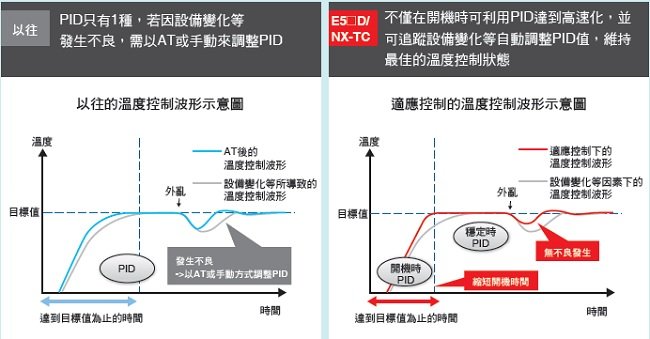

利用本產品所配置的「適應控制」,便可在啟動時與穩定時分別自動算出最佳的PID值。
此外,還可監視設備的溫度控制狀態,並針對工件變化與設備變化等自動調節PID值,以達到最佳的溫度控制。

E5ED / E5ED-B 特長 4

*針對FA用途之通用型溫度控制器,2017年3月時的本公司調查結果。

[創造包裝機進化的新價值] 讓包裝機正確掌握封口溫度,並在自動控制與高速化的條件下維持同樣的品質。

生產現場的課題

・想要透過包裝的高速化來應對新興國家的人口增加而產生的食品需求

・想要讓使用多種包材的多樣性生產達成高速化

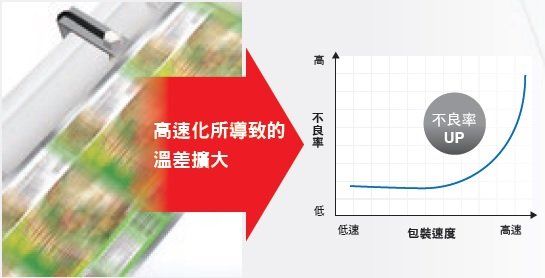

・一旦進行高速化後,由於封口面與控制溫度之間的溫差擴大,因此導致不良率上升…

E5ED / E5ED-B 特長 7

由E5[]D/NX-TC來解決

透過精確溫度測量及抑制波動技術,即能對封口面的溫度進行穩定地自動控制。

即使讓包裝工程高速化,也可藉由將封口溫度與控制溫度之間的誤差控制到最小以及穩定地自動控制,可維持產品品質且實現高速化的生產。

即使是需要變更設定的多樣性生產, 也能透過自動控制來降低工時

過去因應包材的變更所做的設定變更相當耗時,因此產能無法提升。
即使是多樣性生產,亦可透過與封口溫度誤差較小的自動控制,來迅速因應生產現場的需求。

實現全新價值的控制性能

透過包裝機用感溫棒*+包裝機專用的演算法 〈自動過濾調整功能〉,將溫度誤差降到最低

*另售

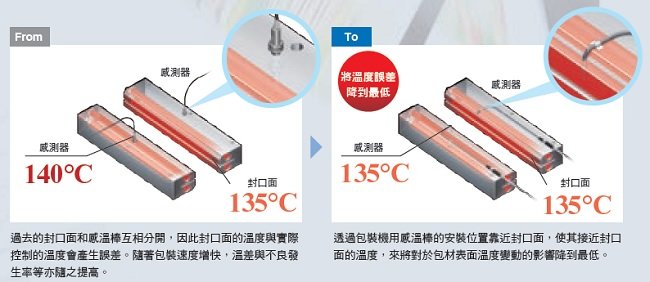

量測封口面溫度的「包裝機用感溫棒」

不受包裝機速度、包材變化等溫度變動要因的影響,正確量測加熱棒表面的溫度。

E5ED / E5ED-B 特長 13

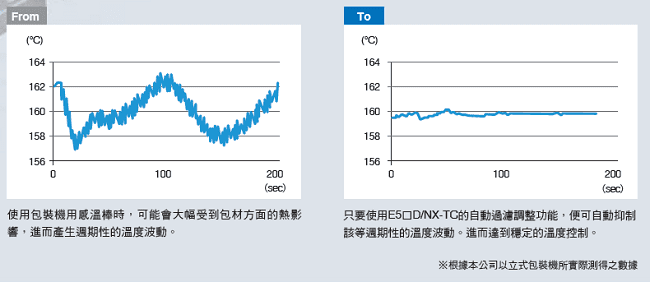

表面溫度量測時能夠抑制波動的「自動過濾調整功能」

透過包裝機用感溫棒以及自動過濾調整功能的使用,得以封口溫度進行控制, 並且同時在不倚賴人力調整之下,僅由溫度控制器來抑制溫度波動。

E5ED / E5ED-B 特長 14

[協助成型機進化的新價值] 讓成型機進化成能夠以自動的方式穩定控制高速化所導致的溫度變化,進而使生產力達到最高。

生產現場的課題

・隨著新興國家的經濟發展、生產據點的海外移管,基礎設施相關需求不斷擴大,因此希望能夠提高生產力

・若要進行高速化,需對材料或冷卻水等引起的溫度波動進行現場調整…

・在維持品質之下進行高速生產是一個課題…

E5ED / E5ED-B 特長 16

由E5[]D/NX-TC來解決

無需現場調整,即可抑制速 度變更或設備狀態變化, 所引起的溫動波動。

可檢測押出成型機在高速運轉下材料發熱處的溫度波動,以及冷卻水變動所導致的溫度波動等,進而以自動的方式穩定控制。 還可大幅降低設定工時。

另可幫助設備節能

透過穩定控制,無效的加熱用能量 相較於過去,最高可減少40%的能源使用。
※根據本公司使用水冷式雙軸押出成型機所實際測得的數據

實現全新價值的控制性能

透過成型機專用的演算法〈水冷輸出調整功能〉, 將溫度波動降到最低

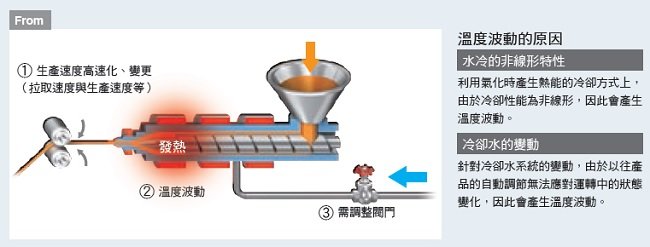

水冷式的押出機在進行高速化時會由於各種原因而導致溫度波動,為了品質穩定,需在現場反覆調整水閥門。
若使用E5[]D/NX-TC,則能夠以水冷輸出調整功能來將溫度波動降到最低,進而在品質不變的狀態下提高生產力。

E5ED / E5ED-B 特長 21

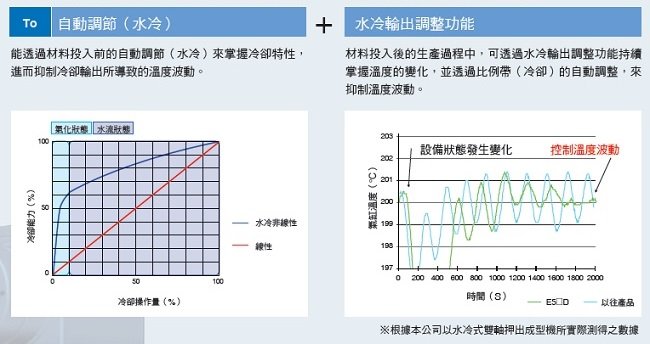

可同時抑制溫度波動的要因,並維持穩定性能的「水冷輸出調整功能」

E5ED / E5ED-B 特長 22

利用Push-In Plus端子台,即可輕鬆配線

E5[]D-B/NX-TC

無需使用工具,僅需插入端子台即可。降低配線作業的負擔及所需工時,新增Push-In Plus端子台系列。

大幅縮減配線所需工時

E5ED / E5ED-B 特長 25

註. 上圖所示為OMRON針對Push-In Plus端子台、螺絲端子台實測後之數據。

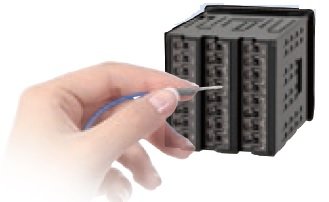

容易插入

使用OMRON的Push-In Plus端子台就像插入耳機孔一樣簡單。減輕作業負擔,提升配線品質。

E5ED / E5ED-B 特長 26
E5ED / E5ED-B 特長 27

Value Design for Panel是OMRON針對控制盤產品規格的通用思維,搭配對應產品使用,為顧客的控制盤帶來嶄新的價值。

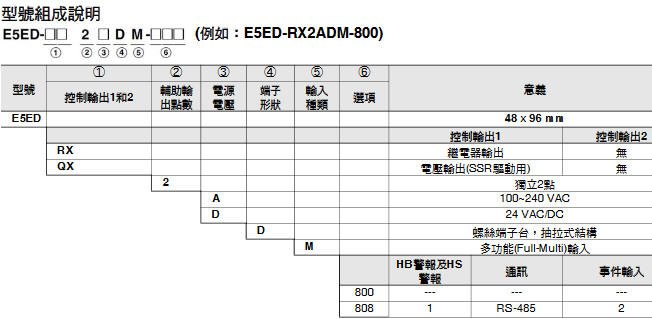

Model Number Legend

Models with Screw Terminal Blocks

E5ED / E5ED-B 種類 2

Heating and Cooling Control

Using Heating and Cooling Control

(1) Control Output Assignment
If there is no control output 2, an auxiliary output is used as the cooling control output.
If there is a control output 2, the two control outputs are used for heating and cooling.
(It does not matter which output is used for heating and which output is used for cooling.)
(2) Control
If PID control is used, you can set PID control separately for heating and cooling.
This allows you to handle control systems with different heating and cooling response characteristics.

List of Models

Model
E5ED-RX4A6M-000
E5ED-RX4D6M-000
E5ED-RX4A6M-008
E5ED-RX4D6M-008
E5ED-RX4A6M-010
E5ED-RX4D6M-010
E5ED-QX4A6M-000
E5ED-QX4D6M-000
E5ED-QX4A6M-008
E5ED-QX4D6M-008
E5ED-QX4A6M-010
E5ED-QX4D6M-010
E5ED-CX4A6M-000
E5ED-CX4D6M-000
E5ED-CX4A6M-004
E5ED-CX4D6M-004
E5ED-CX4A6M-022
E5ED-CX4D6M-022
E5ED-RR4A6M-000
E5ED-RR4A6M-008
E5ED-QR4A6M-000
E5ED-QR4A6M-008

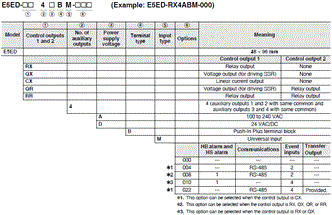

Model Number Legend

Models with Push-In Plus Terminal Blocks

E5ED / E5ED-B 種類 7

Heating and Cooling Control

Using Heating and Cooling Control

(1) Control Output Assignment
If there is no control output 2, an auxiliary output is used as the cooling control output.
If there is a control output 2, the two control outputs are used for heating and cooling. (It does not matter which output is used for heating and which output is used for cooling.)
(2) Control
If PID control is used, you can set PID control separately for heating and cooling.
This allows you to handle control systems with different heating and cooling response characteristics.

List of Models

Model
E5ED-RX4ABM-000
E5ED-RX4DBM-000
E5ED-RX4ABM-008
E5ED-RX4DBM-008
E5ED-RX4ABM-010
E5ED-RX4DBM-010
E5ED-QX4ABM-000
E5ED-QX4DBM-000
E5ED-QX4ABM-008
E5ED-QX4DBM-008
E5ED-QX4ABM-010
E5ED-QX4DBM-010
E5ED-CX4ABM-000
E5ED-CX4DBM-000
E5ED-CX4ABM-004
E5ED-CX4DBM-004
E5ED-CX4ABM-022
E5ED-CX4DBM-022
E5ED-RR4ABM-000
E5ED-RR4ABM-008
E5ED-QR4ABM-000
E5ED-QR4ABM-008

Optional Products (Order Separately)

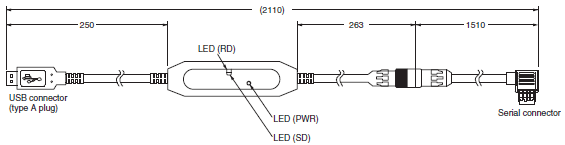

USB-Serial Conversion Cable

Model
E58-CIFQ2

Communication Conversion Cable

Model
E58-CIFQ2-E

Note:Always use this product together with the E58-CIFQ2.

Terminal Covers

(Cannot be used on a Push-In Plus terminal block type)

Model
E53-COV24 (3pcs)

Note:Terminal Covers are provided with the Digital Temperature Controller.

Waterproof Packing

Model
Y92S-P9

Note:This Waterproof Packing is provided with the Digital Temperature Controller.

Waterproof Cover

Model
Y92A-49N

Front Port Cover

Model
Y92S-P7

Note:This Front Port Cover is provided with the Digital Controller.

Mounting Adapter

Model
Y92F-51 (2pcs)

Note:This Mounting Adapter is provided with the Digital Temperature Controller.

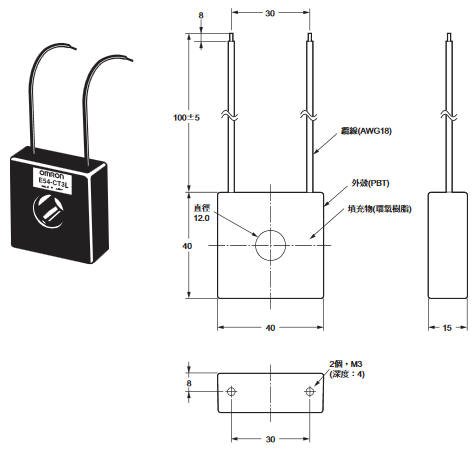

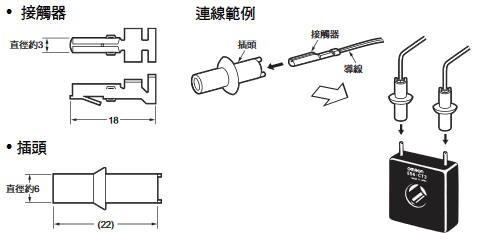

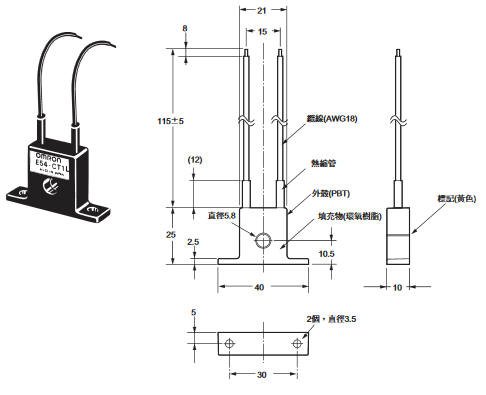

Current Transformers (CTs)

Hole diameter Model

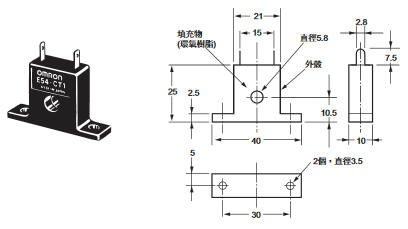

5.8 mm E54-CT1
5.8 mm E54-CT1L*

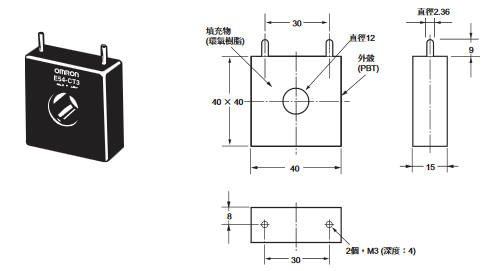

12.0 mm E54-CT3
12.0 mm E54-CT3L*

*Lead wires are included with these CTs. If UL certification is required, use these CTs.

Draw-out Jig

(Cannot be used on a Push-In Plus terminal block type)

Model
Y92F-59

CX-Thermo Support Software

Model
EST2-2C-MV4

Note:CX-Thermo version 4.66 or higher is required for the E5ED.
CX-Thermo version 4.67 or higher is required for the E5ED-B.
For the system requirements for the CX-Thermo, refer to information on the EST2-2C-MV4.

Ratings

Power supply voltage A in model number: 100 to 240 VAC, 50/60 Hz
D in model number: 24 VAC, 50/60 Hz; 24 VDC
Operating voltage range 85% to 110% of rated supply voltage
Power consumption Models with option selection of 000: 6.6 VA max. at 100 to 240 VAC,
and 4.1 VA max. at 24 VAC or 2.3 W max. at 24 VDC
All other models: 8.3 VA max. at 100 to 240 VAC, and 5.5 VA max. at
24 VAC or 3.2 W max. at 24 VDC
Sensor input Temperature input
Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, or PL II
Platinum resistance thermometer: Pt100 or JPt100
Infrared temperature sensor (ES1B): 10 to 70°C, 60 to 120°C,
115 to 165°C, or 140 to 260°C
Analog input
Current input:4 to 20 mA or 0 to 20 mA
Voltage input:1 to 5 V, 0 to 5 V, or 0 to 10 V
Input impedance Current input: 150 Ω max., Voltage input: 1 MΩ min.
(Use a 1:1 connection when connecting the ES2-HB-N/THB-N.)
Control method ON/OFF control or 2-PID control (with auto-tuning)
Control
output

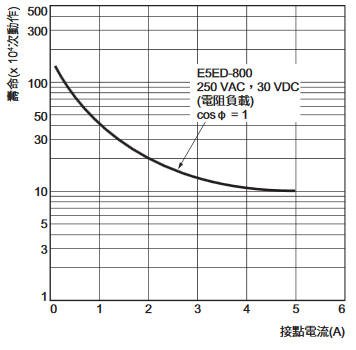

Relay output SPST-NO, 250 VAC, 5 A (resistive load), electrical life: 100,000 operations,
minimum applicable load: 5 V, 10 mA (reference value)
Voltage output
(for driving SSR)
Output voltage: 12 VDC ±20% (PNP), max. load current: 40 mA,
with short-circuit protection circuit
(The maximum load current is 21 mA for models with two control outputs.)
Linear current
output
4 to 20 or 0 to 20 mA DC, Load: 500 Ω max., Resolution: Approx. 10,000
Auxiliary
output
Number of outputs 4
Output
specifications
SPST-NO relay outputs, 250 VAC, 2 A (resistive load)
Electrical life: 100,000 operations,
Minimum applicable load: 10 mA at 5 V (reference values)
Event
input
Number of inputs 2 or 4 (depends on model)
External contact
input
specifications
Contact input: ON: 1 kΩ max., OFF: 100 kΩ min.
Non-contact input: ON: Residual voltage: 1.5 V max.,
OFF: Leakage current: 0.1 mA max.
Current flow: Approx. 7 mA per contact
Transfer
Output
Number of outputs 1 (depends on model): Transfer output type
Output
specifications
Current output: 4 to 20 mA DC, Load: 500 Ω, Resolution: Approx. 10,000
Linear voltage output: 1 to 5 V DC, Load: 1 kΩ min., Resolution: Approx. 10,000
Setting method Digital setting using front panel keys
Indication method 11-segment digital display, individual indicators, and bar display
Character height: PV: 18.0 mm, SV: 11.0 mm, MV: 7.8 mm
Three displays Contents: PV/SV/MV, PV/SV/Multi-SP, PV/SV/Remaining
soak time, etc.
Numbers of digits: 4 digits each for PV, SV, and MV displays
Multi SP Up to eight set points (SP0 to SP7) can be saved and selected using
the event inputs, key operations, or serial communications.
Bank switching None
Other functions Adaptive control, automatic filter adjustment, water-cooling output adjustment,
indication data (power ON time monitor, ambient temperature monitor, and
control output ON/OFF count monitors), parameter masking, operation afte
power ON, manual output, heating/cooling control, loop burnout alarm,
SP ramp, other alarm functions, heater burnout (HB) alarm (including SSR failure
(HS) alarm), 40% AT, 100% AT, MV limiter, input digital filter, robust tuning,
PV input shift, run/stop, protection functions, extraction of square root,
MV change rate limit, logic operations,temperature status display, simple
programming, moving average of input value, and display brightness setting
Ambient operating
temperature
-10 to 55°C (with no condensation or icing),
For 3-year warranty: -10 to 50°C with standard mounting
(with no condensation or icing)
Ambient operating
humidity
25% to 85%
Storage temperature -25 to 65°C (with no condensation or icing)
Altitude 2,000 m max.
Recommended fuse T2A, 250 VAC, time-lag, low-breaking capacity
Installation environment Overvoltage category II, Pollution Degree 2 (EN/IEC/UL 61010-1)

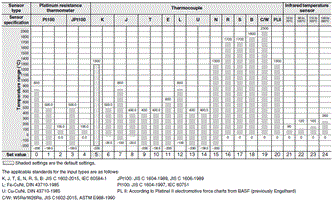

Input Ranges

Thermocouple/Platinum Resistance Thermometer (Universal inputs)

E5ED / E5ED-B 額定/性能 3

Analog input

Input type Current Voltage
Input specification 4 to 20 mA 0 to 20 mA 1 to 5 V 0 to 5 V 0 to 10 V
Setting range Usable in the following ranges by scaling:
-1999 to 9999, -199.9 to 999.9, -19.99 to 99.99 or
-1.999 to 9.999
Set value 25 26 27 28 29

Alarm Types

Each alarm can be independently set to one of the following 17 alarm types. The default is 2: Upper limit. (see note.)
Auxiliary outputs are allocated for alarms. ON delays and OFF delays (0 to 999 s) can also be specified.

Note:In the default settings for models with HB or HS alarms, alarm 1 is set to a heater alarm (HA) and the Alarm Type 1 parameter is not displayed.
To use alarm 1, set the output assignment to alarm 1.

Set
value
Alarm type Alarm output operation Description of function
When alarm
value X is
positive
When alarm
value X is
negative
0 Alarm function
OFF
Output OFF No alarm

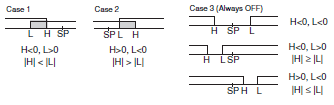

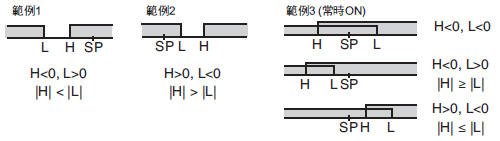

1 Upper- and
lower-limit *1
3669_sp_4_1 *2 Set the upward deviation in the set point for the
alarm upper limit (H) and the lower deviation in
the set point for the alarm lower limit (L).
The alarm is ON when the PV is outside this
deviation range.
2
(default)
Upper-limit 3669_sp_4_2 3669_sp_4_18 Set the upward deviation in the set point by setting
the alarm value (X). The alarm is ON when the PV
is higher than the SP by the deviation or more.
3 Lower-limit 3669_sp_4_3 3669_sp_4_19 Set the downward deviation in the set point by
setting the alarm value (X). The alarm is ON when
the PV is lower than the SP by the deviation or more.
4 Upper- and
lower-limit
range *1
3669_sp_4_4 *3 Set the upward deviation in the set point for the
alarm upper limit (H) and the lower deviation in the
set point for the alarm lower limit (L). The alarm
is ON when the PV is inside this deviation range.
5 Upper- and
lower-limit
with standby
sequence *1
*5
3669_sp_4_5
*4 A standby sequence is added to the upper- and
lower-limit alarm (1). *6
6 Upper-limit
with standby
sequence
3669_sp_4_6 3669_sp_4_20 A standby sequence is added to the upper-limit
alarm (2). *6
7 Lower-limit
with standby
sequence
3669_sp_4_7 3669_sp_4_21 A standby sequence is added to the lower-limit
alarm (3). *6
8 Absolute-value
upper-limit
3669_sp_4_8 3669_sp_4_22 The alarm will turn ON if the process value is
larger than the alarm value (X) regardless of the
set point.
9 Absolute-value
lower-limit
3669_sp_4_9 3669_sp_4_23 The alarm will turn ON if the process value is
smaller than the alarm value (X) regardless of the
set point.
10 Absolute-value
upper-limit
with standby
sequence
3669_sp_4_10 3669_sp_4_24 A standby sequence is added to the absolute-value
upper-limit alarm (8). *6
11 Absolute-value
lower-limit
with standby
sequence
3669_sp_4_11 3669_sp_4_25 A standby sequence is added to the absolute-value
lower-limit alarm (9). *6
12 LBA (alarm
1 type only)
- *7
13 PV change
rate alarm
- *8
14 SP
absolute-value
upper-limit
alarm
3669_sp_4_12 3669_sp_4_26 This alarm type turns ON the alarm when the set
point (SP) is higher than the alarm value (X).
15 SP
absolute-value
lower-limit
alarm
3669_sp_4_13 3669_sp_4_27 This alarm type turns ON the alarm when the set
point (SP) is lower than the alarm value (X).
16 MV
absolute-value
upper-limit
alarm *9
Standard Control
3669_sp_4_14
Standard Control
3669_sp_4_28
This alarm type turns ON the alarm when the
manipulated variable (MV) is higher than the alarm
value (X).
Heating/Cooling
Control
(Heating MV)
3669_sp_4_15
Heating/Cooling
Control
(Heating MV)
Always ON
17 MV
absolute-value
lower-limit
alarm *9
Standard Control
3669_sp_4_16
Standard Control
3669_sp_4_29
This alarm type turns ON the alarm when the
manipulated variable (MV) is lower than the alarm
value (X).
Heating/Cooling
Control
(Heating MV)
3669_sp_4_17
Heating/Cooling
Control
(Heating MV)
Always ON

*1.With set values 1, 4 and 5, the upper and lower limit values can be set independently for each alarm type, and are
expressed as “L” and “H.”
*2.Set value: 1, Upper- and lower-limit alarm

E5ED / E5ED-B 額定/性能 7

*3.Set value: 4, Upper- and lower-limit range

E5ED / E5ED-B 額定/性能 8

*4.Set value: 5, Upper- and lower-limit with standby sequence
For Upper- and Lower-Limit Alarm Described Above *2
• Case 1 and 2
Always OFF when the upper-limit and lower-limit hysteresis overlaps.
• Case 3: Always OFF
*5.Set value: 5, Upper- and lower-limit with standby sequence Always OFF when the upper-limit and lower-limit hysteresis
overlaps.
*6.Refer to the E5[]D Digital Temperature Controllers User's Manual (Cat. No. H224) for information on the operation of
the standby sequence.
*7.Refer to the E5[]D Digital Temperature Controllers User's Manual (Cat. No.H224) for information on the loop burnout
alarm (LBA).
*8.Refer to the E5[]D Digital Temperature Controllers User's Manual (Cat. No. H224) for information on the PV change
rate alarm.
*9.When heating/cooling control is performed, the MV absolute upper limit alarm functions only for the heating operation
and the MV absolute lower limit alarm functions only for the cooling operation.

Characteristics

Indication accuracy
(at the ambient
temperature of 23°C)
Thermocouple: (±0.3% of indication value or ±1°C, whichever is greater) ±1 digit max. *1
Platinum resistance thermometer: (±0.2% of indication value or ±0.8°C, whichever is
greater) ±1 digit max.
Analog input: ±0.2% FS ±1 digit max.
CT input: ±5% FS ±1 digit max.
Influence of
temperature *2
Thermocouple input (R, S, B, C/W, PL II): (±1% of indication value or ±10°C, whichever is
greater) ±1 digit max.
Other thermocouple input: (±1% of indication value or ±4°C, whichever is greater) ±1
digit max. *3
Platinum resistance thermometer: (±1% of indication value or ±2°C, whichever is greater)
±1 digit max.
Analog input: ±1%FS ±1 digit max.
CT input: ±5% FS ±1 digit max.
Influence of
voltage *2
Influence of EMS.
(at EN 61326-1)
Input sampling
period
50 ms
Hysteresis Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F)
Analog input: 0.01% to 99.99% FS (in units of 0.01% FS)
Proportional band (P) Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F)
Analog input: 0.1% to 999.9% FS (in units of 0.1% FS)
Integral time (I) 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *4
Derivative time (D) 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *4
Proportional band (P)
for cooling
Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F)
Analog input: 0.1% to 999.9% FS (in units of 0.1% FS)
Integral time (I) for
cooling
0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *4
Derivative time (D)
for cooling
0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *4
For
adaptive
control
SP response
proportional
band
Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F)
SP response
integral
time
0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *4
SP response
derivative
time
0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *4
Disturbance
proportional
band
Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F)
Disturbance
integral time
0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *4
Disturbance
derivative
time
0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *4
Control period 0.1, 0.2, 0.5, 1 to 99 s (in units of 1 s)
Manual reset value 0.0 to 100.0% (in units of 0.1%)
Alarm setting range -1999 to 9999 (decimal point position depends on input type)
Influence of signal
source resistance
Thermocouple: 0.1°C/Ω max. (100Ω max.)
Platinum resistance thermometer: 0.1°C/Ωmax. (10Ω max.)
Insulation resistance 20 MΩ min. (at 500 VDC)
Dielectric strength 3,000 VAC, 50/60 Hz for 1 min between terminals of different charge
Vibration Malfunction 10 to 55 Hz, 20 m/s2 for 10 min each in X, Y, and Z directions
Resistance 10 to 55 Hz, 20 m/s2 for 2 hrs each in X, Y, and Z directions
Shock Malfunction 100 m/s2, 3 times each in X, Y, and Z directions
Resistance 300 m/s2, 3 times each in X, Y, and Z directions
Weight Controller: Approx. 210 g, Mounting Adapter: Approx. 4 g × 2
Degree of protection Front panel: IP66, Rear case: IP20, Terminals: IP00
Memory protection Non-volatile memory (number of writes: 1,000,000 times)
Setup Tool E5ED: CX-Thermo version 4.66 or higher
E5ED-B: CX-Thermo version 4.67 or higher
Setup Tool port E5ED/E5ED-B top panel: An E58-CIFQ2 USB-Serial Conversion Cable is used to connect a
USB port on the computer.*5
E5ED/E5ED-B front panel: An E58-CIFQ2 USB-Serial Conversion Cable and E58-CIFQ2-E
Conversion Cable are used together to connect a USB port on the computer. *5
Standards Approved
standards
cULus: UL 61010-1/CSA C22.2 No.61010-1, Korean wireless regulations (Radio law: KC Mark)
Conformed
standards
EN 61010-1 (IEC 61010-1) and RCM standards
EMC EMI: EN 61326-1 *6
Radiated Interference Electromagnetic Field Strength: EN 55011 Group 1, class A
Noise Terminal Voltage:EN 55011 Group 1, class A
EMS:EN 61326-1 *6
ESD Immunity:EN 61000-4-2
Electromagnetic Field Immunity:EN 61000-4-3
Burst Noise Immunity:EN 61000-4-4
Conducted Disturbance Immunity:EN 61000-4-6
Surge Immunity:EN 61000-4-5
Voltage Dip/Interrupting Immunity:EN 61000-4-11

*1.The indication accuracy of K thermocouples in the −200 to 1,300°C range, T and N thermocouples at a temperature of
−100°C max., and U and L thermocouples at any temperatures is ±2°C ±1 digit max. The indication accuracy of the
B thermocouple at a temperature of 400°C max. is not specified. The indication accuracy of B thermocouples at a
temperature of 400 to 800°C is ±3°C max. The indication accuracy of the R and S thermocouples at a temperature of
200°C max. is ±3°C ±1 digit max. The indication accuracy of C/W thermocouples is (±0.3% of PV or ±3°C, whichever
is greater) ±1 digit max. The indication accuracy of PL II thermocouples is (±0.3% of PV or ±2°C, whichever is
greater) ±1 digit max.
*2.Ambient temperature: −10°C to 23°C to 55°C, Voltage range: −15% to 10% of rated voltage
*3.K thermocouple at −100°C max.: ±10°C max.
*4.The unit is determined by the setting of the Integral/Derivative Time Unit parameter.
*5.External communications (RS-485) and USB-serial conversion cable communications can be used at the same time.
*6.Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)

USB-Serial Conversion Cable

Applicable OS Windows XP/Vista/7/8/8.1/10 *1
Applicable software CX-Thermo version 4.66 or higher
(E5ED-B: version 4.67 or higher)
Applicable models E5[]C-T Series, E5[]C Series, E5CB Series, and E5[]D Series
USB interface standard Conforms to USB Specification 2.0.
DTE speed 38,400 bps
Connector specifications Computer: USB (type A plug)
Digital Temperature Controller: Special serial connector
Power supply Bus power (Supplied from USB host controller.)*2
Power supply voltage 5 VDC
Current consumption 450 mA max.
Output voltage 4.7±0.2 VDC
(Supplied from USB-Serial Conversion Cable to the Digital
Temperature Controller.)
Output current 250 mA max.
(Supplied from USB-Serial Conversion Cable to the Digital
Temperature Controller.)
Ambient operating temperature 0 to 55°C (with no condensation or icing)
Ambient operating humidity 10% to 80%
Storage temperature -20 to 60°C (with no condensation or icing)
Storage humidity 10% to 80%
Altitude 2,000 m max.
Weight Approx. 120 g

Windows is a registered trademark of Microsoft Corporation in the United States and or other countries.
*1.CX-Thermo version 4.65 or higher runs on Windows 10.
*2.Use a high-power port for the USB port.
Note:A driver must be installed on the computer. Refer to the Instruction Manual included with the Cable for the installation procedure.

Communications Specifications

Transmission line connection method RS-485: Multidrop
Communications RS-485 (two-wire, half duplex)
Synchronization method Start-stop synchronization
Protocol CompoWay/F, or Modbus
Baud rate * 9,600, 19,200, 38,400, 57,600, or 115,200 bps
Transmission code ASCII
Data bit length * 7 or 8 bits
Stop bit length * 1 or 2 bits
Error detection Vertical parity (none, even, odd)
Block check character (BCC) with CompoWay/F or CRC-16 Modbus
Flow control None
Interface RS-485
Retry function None
Communications buffer 217 bytes
Communications response wait time 0 to 99 ms
Default: 20 ms

*The baud rate, data bit length, stop bit length, and vertical parity can be individually set using the Communications Setting Level.

Communications Functions

Programless
communications
You can use the memory in the PLC to read and write E5ED/E5ED-B parameters, start and stop
operation, etc. The E5ED/E5ED-B automatically performs communications with PLCs.
No communications programming is required.
Number of connected Digital Temperature Controllers: 32 max. (Up to 16 for the FX3)
Applicable PLCs
OMRON PLCs
CS Series, CJ Series, CP Series, NJ Series, or NX1P
Mitsubishi Electric PLCs
MELSEC Q Series, L Series, FX3 Series, or iQ-R Series
KEYENCE PLCs
KEYENCE KV Series
Copying * When Digital Temperature Controllers are connected, the parameters can be copied from the
Digital Temperature Controller that is set as the master to the Digital Temperature Controllers
that are set as slaves.

MELSEC is a registered trademark of Mitsubishi Electric Corporation.
KEYENCE is a registered trademark of Keyence Corporation.
*Programless communications supports the copying function.

Current Transformer (Order Separately) Ratings

E54-CT1
E54-CT3
E54-CT1L
E54-CT3L
Dielectric strength 1,000 VAC for 1 min 1,500 VAC for 1 min
Vibration resistance 50 Hz, 98 m/s2
Weight E54-CT1: Approx. 11.5 g
E54-CT3: Approx. 50 g
E54-CT1L: Approx. 14 g
E54-CT3L: Approx. 57 g
Accessories E54-CT3 Only
Armatures (2)
Plugs (2)
None

Heater Burnout Alarms and SSR Failure Alarms

CT input (for heater current detection) Models with detection for single-phase heaters: One input
Maximum heater current 50 A AC
Input current indication accuracy ±5% FS ±1 digit max.
Heater burnout alarm setting range *1 0.1 to 49.9 A (in units of 0.1 A)
Minimum detection ON time: 100 ms *3
SSR failure alarm setting range *2 0.1 to 49.9 A (in units of 0.1 A)
Minimum detection OFF time: 100 ms *4

*1.For heater burnout alarms, the heater current will be measured when the control output is ON, and the output will turn
ON if the heater current is lower than the set value (i.e., heater burnout detection current value).
*2.For SSR failure alarms, the heater current will be measured when the control output is OFF, and the output will turn ON
if the heater current is higher than the set value (i.e., SSR failure detection current value).
*3.The value is 30 ms for a control period of 0.1 s or 0.2 s.
*4.The value is 38 ms for a control period of 0.1 s or 0.2 s.

Electrical Life Expectancy Curve for Control Output Relay (Reference Values)

E5ED / E5ED-B 額定/性能 21

(單位:mm)

Controllers

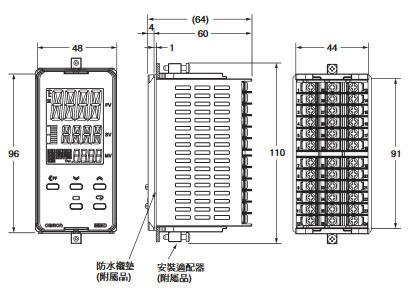

E5ED

E5ED / E5ED-B 外觀尺寸 2

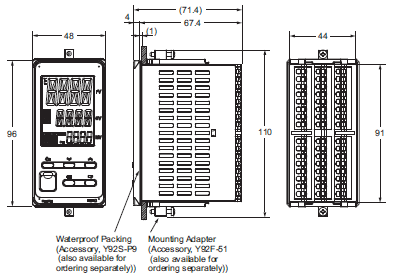

E5ED-B

E5ED / E5ED-B 外觀尺寸 3

•Setup Tool ports are provided as standard feature. Use these ports to connect a computer to the Digital Temperature Controller. The E58-CIFQ2 USB-Serial Conversion Cable is required to connect to the port on the top panel. The E58-CIFQ2 USB-Serial Conversion Cable and E58-CIFQ2-E Communications Conversion Cable are required to connect to the port on the front panel. (You cannot leave either port connected constantly during operation.)

E5ED / E5ED-B 外觀尺寸 5

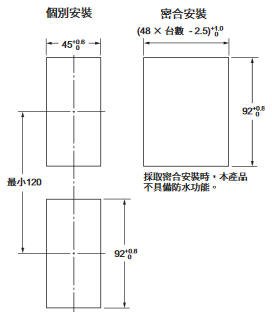

•Recommended panel thickness is 1 to 8 mm.
•Group mounting is not possible in the vertical direction. (Maintain the specified mounting space between Controllers.)
•To mount the Controller so that it is waterproof, insert the waterproof packing onto the Controller.
•When two or more Controllers are mounted, make sure that the surrounding temperature does not exceed the
allowable operating temperature specified in the specifications.
•Use a control panel thickness of 1 to 3 mm if the Y92A-49N and a USB-Serial Conver-sion Cable are used together.

* Selections for Control Outputs 1 and 2: QR or RR
If you also specify 022 for the option selection and use group
mounting, the ambient temperature must be 45°C or less. Maintain the following spacing when more than one Digital Controller is installed at an ambient temperature of 55°C.

E5ED / E5ED-B 外觀尺寸 6

Accessories (Order Separately)

USB-Serial Conversion

CableE58-CIFQ2

E5ED / E5ED-B 外觀尺寸 8

Conversion Cable

E58-CIFQ2-E

E5ED / E5ED-B 外觀尺寸 9

Note:Always use this product together with the E58-CIFQ2.

Terminal Covers (Cannot be used on a Push-In Plus terminal block type)

E53-COV24 (Three Covers provided.)

E5ED / E5ED-B 外觀尺寸 12

The Terminal Covers are provided with the Digital Temperature Controller.
Order the Terminal Cover separately if it becomes lost or damaged.

Waterproof Packing

Y92S-P9 (for DIN 48 × 96)

E5ED / E5ED-B 外觀尺寸 14

The Waterproof Packing is provided with the Digital Temperature Controller.
Order the Waterproof Packing separately if it becomes lost or damaged.
The Waterproof Packing can be used to achieve an IP66 degree of protection.
Also, keep the Port Cover on the front-panel Setup Tool port of the E5ED securely closed.
(Deterioration, shrinking, or hardening of the waterproof packing may occur depending on the operating environment. Therefore, periodic replacement is recommended to ensure the level of waterproofing specified in IP66. The time for periodic replacement depends on the operating environment. Be sure to confirm this point at your site. Consider three years as a rough standard.)

Setup Tool Port Cover for front panel

Y92S-P7

E5ED / E5ED-B 外觀尺寸 16

Order this Port Cover separately if the Port Cover on the front-panel Setup Tool port is lost or damaged. The Waterproof Packing must be periodically replaced because it may deteriorate, shrink, or harden depending on the operating environment.

Mounting Adapter

Y92F-51 (Two Adapters provided.)

E5ED / E5ED-B 外觀尺寸 18

One pair is provided with the Controller.
Order this Adapter separately if it becomes lost or damaged.

Waterproof Cover

Y92A-49N (for DIN 48 × 96)

E5ED / E5ED-B 外觀尺寸 19

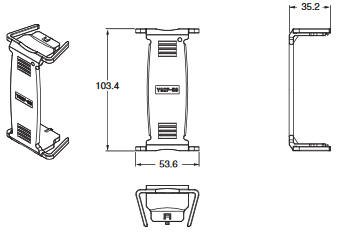

Draw-out Jig (Cannot be used on a Push-In Plus terminal block type)

Y92F-59

Use this Draw-out Jig to remove the interior body of the Digital Temperature Controller from the case to perform maintenance without removing the terminal wiring.

E5ED / E5ED-B 外觀尺寸 21

Current Transformers

E54-CT1

E5ED / E5ED-B 外觀尺寸 23

E54-CT1L

E5ED / E5ED-B 外觀尺寸 24

Thru-current (Io) vs. Output Voltage (Eo)
(Reference Values)
E54-CT1 or E54-CT1L

Maximum continuous heater current: 50 A (50/60 Hz)
Number of windings: 400±2
Winding resistance: 18±2 Ω

E5ED / E5ED-B 外觀尺寸 26

E54-CT3

E5ED / E5ED-B 外觀尺寸 27

E54-CT3 Accessories

E5ED / E5ED-B 外觀尺寸 28

E54-CT3L

E5ED / E5ED-B 外觀尺寸 29

Thru-current (Io) vs. Output Voltage (Eo)
(Reference Values)
E54-CT3 or E54-CT3L

Maximum continuous heater current: 120 A (50/60 Hz)
(Maximum continuous heater current for an OMRON Digital Temperature Controller is 50 A.)
Number of windings: 400±2
Winding resistance: 8±0.8 Ω

E5ED / E5ED-B 外觀尺寸 31

中文

※若型錄PDF檔案太大,建議按滑鼠右鍵"另存目標"下載。

型錄名稱 型錄編號
[容量]
更新日期
E5[]D/NX-TC 型錄 H226-E1-TW5
[20833KB]
2019年1月29日
20190129
E5[]D/NX-TC 型錄

English

Global Edition

以下是海外共通的產品型錄,其中可能包含不在台灣銷售的型號。

在台灣訂購時請注意確認。

※若型錄PDF檔案太大,建議按滑鼠右鍵"另存目標"下載。

Catalog Name Catalog Number
[size]
Last Update
E5[]D Data Sheet H223-E1-05
[14385KB]
Nov 08, 2021
20211108
E5[]D Data Sheet
E5[]D/NX-TC Catalog H222-E1-04
[2814KB]
Oct 01, 2019
20191001
E5[]D/NX-TC Catalog
如有需要請洽各所營業人員

誠睿台南所 TEL:06-2493086
誠睿台中所 TEL:04-23380790
誠睿新竹所 TEL:03-6685558
客服信箱 service@hitifa.com.tw
如有需要請洽各所營業人員

誠睿台南所 TEL:06-2493086
誠睿台中所 TEL:04-23380790
誠睿新竹所 TEL:03-6685558
客服信箱 service@hitifa.com.tw
更多案例 更多產品 TOP
