G3S / G3SD

產品特色

Ultra-small Relay Breaks up to 1 A

商品洽詢

- 產品描述 - 種類額定/性能外觀尺寸型錄操作手冊

• Ultra-small, dual in-line package (DIP) SSR.

• Terminals are compatible with G6B Electromagnetic Relay's. Be capable mix with G6Bs as the application requires.

• Close mounting possible. In addition, heat sink dedicated to this mounting style also available.

• Both AC- and DC-load versions available.

• High isolation of 2,500 VAC between input and output.

• Built-in varistor effectively absorbs external surges (for AC switching).

• Lineup includes models with UL and CSA certification (model numbers ending in “-US”).

Isolation	Zero cross function	Indicator	Rated output load	Rated input voltage	Model	Minimum packing unit
Phototriac	No	No	1 A 100 to 240 VAC *1	5 VDC	G3S-201PL	100 pcs
				12 VDC
				24 VDC
			1.2 A 100 to 240 VAC *1	5 VDC	G3S-201PL-PD
				12 VDC
				24 VDC
Photocoupler			1 A 4 to 24 VDC *2	5 VDC	G3SD-Z01P
				12 VDC
				24 VDC
			1.1 A 4 to 24 VDC *2	5 VDC	G3SD-Z01P-PD
				12 VDC
				24 VDC

*1. Product is labelled "250 VAC".
*2. Product is labelled “24 VDC”.

Ratings

Input (Each models has 5-VDC, 12-VDC, and 24-VDC input versions.)

Rated voltage	Operating voltage	Must operate voltage level	Must release voltage level	Impedance
Rated voltage	Operating voltage	Must operate voltage level	Must release voltage level	G3S-201PL G3S-201PL-PD	G3SD-Z01P G3SD-Z01P-PD
5 VDC	4 to 6 VDC	4 VDC max.	1 VDC min.	450 Ω ±20%	630 Ω ±20%
12 VDC	9.6 to 14.4 VDC	9.6 VDC max.		1.1 kΩ ±20%	1.5 kΩ ±20%
24 VDC	19.2 to 28.8 VDC	19.2 VDC max.		2.2 kΩ ±20%	2.8 kΩ ±20%

Output

Model Item	Rated load voltage	Rated load voltage range	Load current	Inrush current
G3S-201PL	100 to 240 VAC	75 to 264 VAC	0.1 to 1 A *	15 A (60 Hz, 1 cycle)
G3S-201PL-PD	100 to 240 VAC	75 to 264 VAC	0.1 to 1.2 A *	15 A (60 Hz, 1 cycle)
G3SD-Z01P	4 to 24 VDC	3 to 26 VDC	0.01 to 1 A *	3 A (10 ms)
G3SD-Z01P-PD	4 to 24 VDC	3 to 26 VDC	0.01 to 1.1 A *	3 A (10 ms)

* The applicable output load current varies depending on the ambient temperature.
Refer to reference data the "Load Current vs. Ambient Temperature" rating characteristic for details.

Characteristics

Model	G3S-201PL, G3S-201PL-PD	G3SD-Z01P, G3SD-Z01P-PD
Operate time	1 ms max.	1 ms max.
Release time	1/2 of load power source cycle + 1 ms max.	1 ms max.
Output ON voltage drop	1.6 V (RMS) max.	1.5 V max.
Leakage current	2 mA (at 200 VAC)	0.1 mA max. (at 26 VDC)
Insulation resistance	100 MΩ min. (at 500 VDC)
Dielectric strength	2,500 VAC, 50/60 Hz for 1 min between input and output
Vibration resistance	10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Shock resistance	1,000 m/s²
Storage temperature	- 30°C to 100°C (with no icing or condensation)
Ambient operating temperature	- 30°C to 80°C (with no icing or condensation)
Ambient operating humidity	45% to 85% RH
Weight	Approx. 13 g

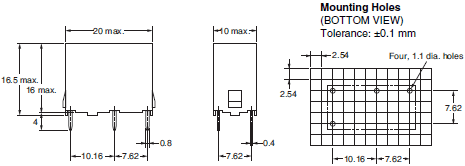

（單位：mm）

G3S
G3SD

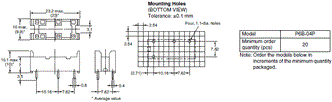

Connecting Socket

G6B-04P

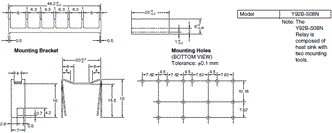

Heat Sink
Y92B-S08N

English

Global Edition

以下是海外共通的產品型錄，其中可能包含不在台灣銷售的型號。

在台灣訂購時請注意確認。

※若型錄PDF檔案太大，建議按滑鼠右鍵＂另存目標＂下載。
Catalog Name	Catalog Number [size]	Last Update
G3S, G3SD Data Sheet	K060-E1-07 [541KB]	Oct 30, 2014 20141030	G3S, G3SD Data Sheet
