• Direct mounting to PCBs.
Also standardized with input indicator.
• High dielectric strength of 2,500 VAC for 2-A models.
• High-voltage DC version also available.
• Lineup includes models with UL and CSA certification (model numbers ending in “-US”).
| Terminals | Isolation | Zero cross function |
Indicator | Rated output load | Rated input voltage |
Model | Minimum packing unit |
|---|---|---|---|---|---|---|---|
| PCB | Phototriac | Yes | Yes | 2 A at 100 to 120 VAC *1 | 5, 12, 24 VDC |
G3R-102PN | 20 pcs |
| No | G3R-102PLN | ||||||
| Yes | 2 A at 100 to 240 VAC *2 | G3R-202PN | |||||
| No | G3R-202PLN | ||||||
| Photocoupler | - | 1.5 A at 5 to 110 VDC | G3RD-101PN | ||||
| 2 A at 4 to 48 VDC *3 | G3RD-X02PN |
*1. Product is labelled "125 VAC".
*2. Product is labelled "250 VAC".
*3. Product is labelled "50 VDC".
| Model | Rated voltage | Operating voltage | Must operate voltage level |
Must release voltage level |
Input impedance |
|---|---|---|---|---|---|
| G3R-102PN G3R-202PN |
5 VDC | 4 to 6 VDC | 3.5 VDC max. | 0.375 VDC min. | 250 Ω± 20% |
| 12 VDC | 9.6 to 14.4 VDC | 8.4 VDC max. | 0.9 VDC min. | 600 Ω± 20% | |
| 24 VDC | 19.2 to 28.8 VDC | 16.8 VDC max. | 1.8 VDC min. | 1.5 kΩ± 20% |
| Model | Rated voltage | Operating voltage | Must operate voltage level |
Must release voltage level |
Input impedance |
|---|---|---|---|---|---|
| G3R-102PLN G3R-202PLN G3RD-X02PN G3RD-101PN |
5 VDC | 4 to 6 VDC | 3.5 VDC max. | 0.375 VDC min. | 300 Ω± 20% |
| 12 VDC | 9.6 to 14.4 VDC | 8.4 VDC max. | 0.9 VDC min. | 750 Ω± 20% | |
| 24 VDC | 19.2 to 28.8 VDC | 16.8 VDC max. | 1.8 VDC min. | 1.5 kΩ± 20% |
| Item | Applicable load | |||
|---|---|---|---|---|
| Model | Rated load voltage | Load voltage range | Load current | Inrush current |
| G3R-102PN G3R-102PLN |
100 to 120 VAC | 75 to 132 VAC | 0.1 to 2 A * | 30 A (60 Hz, 1 cycle) |
| G3R-202PN G3R-202PLN |
100 to 240 VAC | 75 to 264 VAC | 0.1 to 2 A * | |
| G3RD-X02PN | 4 to 48 VDC | 3 to 52.8 VDC | 0.01 to 2 A * | 8 A (10 ms) |
| G3RD-101PN | 5 to 110 VDC | 3 to 125 VDC | 0.01 to 1.5 A * | 2.5 A (10 ms) |
* The load current varies depending on the ambient temperature. Refer to Load Current vs.
Ambient Temperature under Engineering Data.
| Model | G3R-102PLN | G3R-102PN | G3R-202PLN | G3R-202PN | G3RD-X02PN G3RD-101PN |
|---|---|---|---|---|---|
| Operate time | 1 ms max. | 1/2 of load power source cycle + 1 ms max. |
1 ms max. | 1/2 of load power source cycle + 1 ms max. |
1 ms max. |
| Release time | 1/2 of load power source cycle + 1 ms max. | 1 ms max. | |||
| Output ON voltage drop | 1.6 V (RMS) max. | 1.5 V max. | |||
| Leakage current | 2 mA max. (at 100 VAC) | 2 mA max. (at 100 VAC) 5 mA max. (at 200 VAC) |
0.1 mA max. (at 50 VDC) 0.1 mA max. (at 125 VDC) |
||
| Insulation resistance | 100 MΩ min. (at 500 VDC) | ||||
| Dielectric strength | 2,500 VAC, 50/60Hz for 1 min. between input and output | ||||
| Vibration resistance | 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude) | ||||
| Shock resistance | 1,000 m/s2 | ||||
| Ambient operating temperature |
-30°C to 80°C (with no icing or condensation) | ||||
| Ambient operating humidity |
45% to 85%RH | ||||
| Storage temperature | -30°C to 100°C (with no icing or condensation) | ||||
| Weight | Approx. 12g (1-A load model), Approx. 18 g (2-A LOAD, DC output model) | ||||

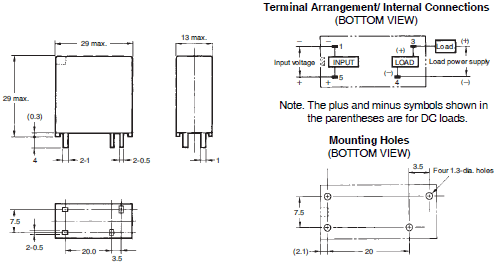

（單位：mm）
G3R-102P[]
G3R-202P[]
G3RD-101PN
G3RD-X02PN
