G70D-SOC16 / FOM16

產品特色

Compact, Low-profile 16-point Output terminal

商品洽詢

- 產品描述 - 種類額定/性能外觀尺寸型錄 CAD

• Compact terminal is just 156 × 51 × 39 mm (W × D × H)

• Models with Power MOSFET Relays are available for high-frequency switching of AC or DC loads.

• Wire loads directly from terminals; no need for relaying.

• Operation indicators show each I/O signal’s ON/OFF status at a glance.

• The G70D-SOC16 and G70D-FOM16 can be combined with a DRT1-OD32ML I/O Terminal for DeviceNet connectivity or an SRT2-VOD16ML Connector Terminal for CompoBus/S connectivity.

• Equipped with surge-absorbing diodes.

• Relay Removal Tool included.

• Mount either to DIN rail or via screws.

Relay Terminals

Classification	Points	Internal I/O common	Rated voltage	Model
Relay outputs	16 points (SPST-NO × 16)	NPN (+ common)	24 V DC	G70D-SOC16
Relay outputs		PNP (- common)		G70D-SOC16-1
Power MOSFET relay outputs		NPN (+ common)		G70D-FOM16

Note: These are all non-standard model and require a special order. Contact your OMRON representative for details on
availability.

Accessories (Order Separately)

Cables for I/O Relay Terminals XW2Z-R

• Cable with Loose Wire and Crimp Terminals: XW2Z-RY[]C
• Cable with Loose Wires: XW2Z-RA[]C
• Cable with Fujitsu connectors (1:1): XW2Z-R[]C
(1:2): XW2Z-RI[]C-[]
XW2Z-RO[]C-[]
(1:3): XW2Z-R[]C-[]-[]
• Cable with MIL connectors (1:1): XW2Z-RI[]C
XW2Z-RO[]C
(1:2): XW2Z-RI[]-[]-D[]
XW2Z-RM[]-[]-D[]
XW2Z-RO[]-[]-D1
Refer to the XW2Z-R Datasheet (Cat. No. G126) for details.

Replacement Relays

Applicable Output Relay Terminals	Rated voltage	Model
G70D-SOC16 G70D-SOC16-1	24 V DC	G6D-1A-ASI DC24
G70D-FOM16	24 V DC	G3DZ-2R6PL DC24 *

* This is a non-standard model and requires a special order.
Contact your OMRON representative for details on availability.

Accessories for DIN Track Mounting

Refer to your OMRON website for details on the PFP-[].

Ratings

Relay Specifications (G6D Relay)

The following specifications apply to G6D Relays mounted in a G70D Relay Terminal and not the G6D Relay itself.

Coil Ratings (per G6D Relay)

Rated voltage	24 V DC
Rated current	10.5 mA
Coil resistance	2,880 Ω
Must-operate voltage	70% max. of rated voltage
Must release voltage	10% min. of rated voltage
Max. voltage	130% of rated voltage
Power consumption	Approx. 200 mW

Note: 1. The must-operate voltage is 75% or less of the rated voltage if the relay is mounted upside down.
2. Rated current and coil resistance were measured at a coil temperature of 23° C with a tolerance of ±10%.
3. Operating characteristics were measured at a coil temperature of 23° C.
4. The maximum allowable voltage is the maximum value of the allowable voltage range for the relay coil operating
power supply. There is no continuous allowance.
5. The rated current includes the terminal’s LED current.

Contact Ratings (per G6D Relay *1)

Load		Resistive load (cosφ = 1)
Rated load		3 A at 250 V AC, 3 A at 30 V DC
Rated carry current		3 A
Max. switching voltage		250 V AC, 30 V DC
Max. switching current		3 A
*Min. permissible load (reference value) 2**		10 mA at 5 V DC
Endurance	Electrical	100,000 operations min. (under and at the rated load at 1,800 operations/hr)
Endurance	Mechanical	20,000,000 operations min. (at 18,000 operations/hr)

*1. Up to 3 A can be carried by the power supply terminals for outputs (terminals B0 to B7.)
*2. This value is for a switching frequency of 120 times per minute.

Power MOSFET Relay Specifications (G3DZ Power MOSFET Relay)

Note: The following specifications apply to G3DZ Power MOSFET relays mounted in a G70D Relay terminal and not the G3.

Input (per G3DZ Power MOSFET Relay)

Rated voltage		24 V DC
Operating voltage		19.2 to 28.8 V DC
Voltage level	Must-operate	19.2 V DC max.
Voltage level	Must release	1 V DC min.
Input impedance		4 kΩ±20%
Rated current		8.2 mA±20%

Note: The rated current includes the terminal’s LED current.

Output (per G3DZ Power MOSFET Relay)

Load voltage	3 to 264 V AC, 3 to 125 V DC
Load current	100 μA to 0.3 A
Inrush current	6 A (10 ms)

Characteristics

Item	G70D-SOC16(-1)	G70D-FOM16
Classification	Relay outputs	Power MOSFET relay outputs
Contact configuration	16 points (SPST-NO × 16)
Contact structure	Single	---
Contact material	Ag-Alloy (Cd free)	---
Contact resistance	100 mΩ max. *1	---
Must-operate time	10 ms max. *2	6 ms max.
Release time	10 ms max. *2
Isolation method	---	Photocoupler
Output ON-resistance	---	2.4 Ω max.
Open-state leakage current	---	10 μA max. (at 125 V DC)
Max. switching frequency	Mechanical: 18,000 operations/h Rated load: 1,800 operations/h	---
Insulation resistance	100 MΩ min. (at 500 V DC)
Dielectric strength	2,000 V AC for 1 min between coil and contact	2,000 V AC for 1 min between input and output terminals
Noise immunity	Power input (normal mode): 600 V for 10 min with a pulse width of 100 ns to 1 μs Power input (common mode): 1.5 kV for 10 min with a pulse width of 100 ns to 1 μs Input cable (coiling): 1.5 kV for 10 min with a pulse width of 100 ns to 1 μs Unit body (coiling): 600 V for 10 min with a pulse width of 100 ns to 1 μs
Vibration resistance	Destruction: 10 to 55 to 10 Hz, 0.5-mm amplitude (1.0-mm double) Malfunction: 10 to 55 to 10 Hz, 0.375-mm amplitude (0.75-mm double)
Shock resistance	Destruction: 300 m/s² Malfunction: 100 m/s²
Operating voltage range	24 V DC +10%/-15%
Current consumption	Approx. 300 mA at 24 V DC *3	Approx. 300 mA at 24 V DC *4
Cable length	Between block and controller: 5 m max. (reference value for AWG28) Between block and external device: Dependent on load
LED color	Operation indicator: orange; power supply: green
Coil surge absorber	Diode (400 V, 300 mA)
Ambient temperature	Operating: 0 to 55°C (with no icing or condensation) Storage: -20 to 65°C (with no icing or condensation)
Ambient humidity	Operating: 35% to 85%
Mounting strength	No damage when 49 N pull load was applied for 1 s in all directions (except for 9.8 N in direction of rail)
Terminal strength	Tightening torque: 0.78 to 0.98 N·m Pull strength: 49 N for 1 min
Weight	Approx. 200 g

Note: These values are initial values.
*1. Measurement: 1 A at 5 V DC
*2. Ambient temperature: 23°C
*3. Current consumption is when all points are ON and includes G6D Relay coil current but does not include any external
load current.
*4. Current consumption is when all points are ON and includes G3DZ input current but does not include any external load
current.

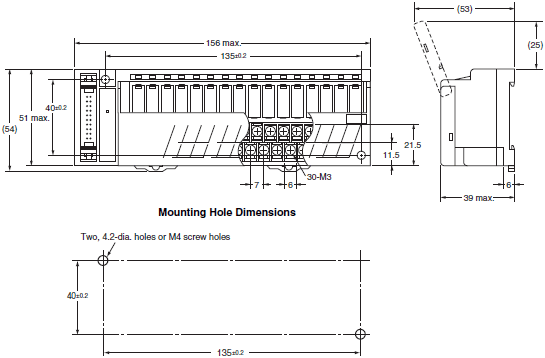

（單位：mm）

G70D-SOC16(-1)
G70D-FOM16

English

Global Edition

以下是海外共通的產品型錄，其中可能包含不在台灣銷售的型號。

在台灣訂購時請注意確認。

※若型錄PDF檔案太大，建議按滑鼠右鍵＂另存目標＂下載。
Catalog Name	Catalog Number [size]	Last Update
G70D-SOC16/FOM16 Data Sheet	- [1392KB]	Jul 01, 2021 20210701	G70D-SOC16/FOM16 Data Sheet
XW2Z-R Data Sheet	G126-E1-02 [2435KB]	Apr 03, 2017 20170403	XW2Z-R Data Sheet
G70V/G7TC/G70A/G70D Table of I/O Relay Terminal and connectable device combinations	J217-E1-02 [1471KB]	Dec 02, 2019 20191202	G70V/G7TC/G70A/G70D Table of I/O Relay Terminal and connectable device combinations
Table of PLC I/O Unit Connection Correspondance	G154-E1-01 [1466KB]	Oct 11, 2022 20221011	Table of PLC I/O Unit Connection Correspondance
