• Relay terminal is just 68 × 80 × 44 mm (W × H × D, when mounted upright).
• Independent contacts and short bar allow easy common connections.
• The common can now be connected with a short bar in the G70D-SOC08.
• No tools are required to remove Relays, so Relay replacement is easier than ever.
• The attached terminal cover prevents shocks.
• Equipped with operation indicators.
• Built-in diodes absorb coil surge.
• Mount either to DIN rail or via screws.
| Classification | Points | Internal I/O common | Rated voltage | Model |
|---|---|---|---|---|
| Relay outputs | 8 points (SPST-NO × 8) | NPN (+common) | 24 V DC | G70D-SOC08 |
| Applicable Output Relay Terminals | Model |
|---|---|
| G70D-SOC08 G70R-SOC08 |
G6B-4-SB |
• Cable with Loose Wire and Crimp Terminals: XW2Z-RY[]C
• Cable with Loose Wires: XW2Z-RA[]C
• Cable with connectors
• Fujitsu connectors (1:1): XW2Z-R[]C
• Fujitsu connectors (1:2):
XW2Z-RI[]C-[]
XW2Z-RO[]C-[]
• Fujitsu connectors (1:3): XW2Z-R[]C-[]-[]
• MIL connectors (1:1):
XW2Z-RI[]C
XW2Z-RO[]C
• MIL connectors (1:2):
XW2Z-RI[]-[]-D[]
XW2Z-RM[]-[]-D[]
XW2Z-RO[]-[]-D1
Check the internal circuit before use and confirm the pins to be used.
Refer to the XW2Z-R Datasheet (Cat. No. G126) for details.
| Applicable Output Relay Terminal | Rated voltage | Model |
|---|---|---|
| G70D-SOC08 | 24 V DC | G6D-1A-ASI DC24 |
Refer to your OMRON website for details on the PFP-[].
The following specifications apply to G6D Relays mounted in a G70D Relay Terminal and not the G6D Relay itself.
| Rated voltage | 24 V DC |
|---|---|
| Rated current | 10.5 mA |
| Coil resistance | 2,880 Ω |
| Must-operate voltage | 70% max. of rated voltage |
| Must release voltage | 10% min. of rated voltage |
| Max. voltage | 130% of rated voltage |
| Power consumption | Approx. 200 mW |
| Load | Resistive load (cosφ = 1) | |
|---|---|---|
| Rated load | 5 A at 250 V AC, 5 A at 30 V DC | |
| Rated carry current | 5 A | |
| Max. switching voltage | 250 V AC, 30 V DC | |
| Max. switching current | 5 A | |
| Max. switching capacity (reference value) |
1,250 VA, 150 W | |
| Min. permissible load (reference value) * |
10 mA at 5 V DC | |
| Endurance | Electrical | 70,000 operations min. (under and at the rated load at 1,800 operations/h) |
| Mechanical | 20,000,000 operations min. (at 18,000 operations/h) | |
* This value is for a switching frequency of 120 times per minute.
| Model | G70D-SOC08 | |
|---|---|---|
| Classification | Relay outputs | |
| Contact configuration | 8 points (SPST-NO × 8) | |
| Contact structure | Single | |
| Contact resistance *1 | 100 mΩ max. | |
| Must-operate time *2 | 10 ms max. | |
| Release time *2 | 10 ms max. | |
| Max. switching frequency |
Mechanical | 18,000 operations/h |
| Rated load | 1,800 operations/h | |
| Insulation resistance | 100 MΩ min. (at 500 V DC) | |
| Dielectric strength |
Between coil and contact | 2,000 V AC for 1 min between coil and contact |
| Between contacts of same polarity |
750 V AC for 1 min | |
| Between contacts of different polarity |
1,500 V AC for 1 min | |
| Vibration resistance |
Destruction | 10 to 55 to 10 Hz, 0.5-mm amplitude (1.0-mm double) |
| Malfunction | 10 to 55 to 10 Hz, 0.5-mm amplitude (1.0-mm double) | |
| Shock resistance |
Destruction | 300 m/s2 |
| Malfunction | 100 m/s2 | |
| Noise immunity |
Power input (normal mode) | 600 V for 10 min with a pulse width of 100 ns to 1 μs |
| Power input (common mode) | 1.5 kV for 10 min with a pulse width of 100 ns to 1 μs | |
| Input cable (coiling) | 1.5 kV for 10 min with a pulse width of 100 ns to 1 μs | |
| Unit body (coiling) | 600 V for 10 min with a pulse width of 100 ns to 1 μs | |
| Operating voltage range | 24 V DC +10%/-15% | |
| Current consumption *3 | Approx. 170 mA at 24 V DC | |
| Cable length | Between block and controller | 5 m max. (reference value for AWG28) |
| Between block and external device |
Determine appropriate length for the connected load. | |
| LED indicator color | Orange | |
| Coil surge absorber | Diode | |
| Ambient operating temperature | -10 to 55°C | |
| Ambient storage temperature | 35% to 85% | |
| Ambient operating humidity | -20 to 65°C | |
| Mounting strength | No damage when 49 N pull load was applied for 1 s in all directions (except for 9.8 N in direction of rail) |
|
| Terminal strength |
Tightening torque | 9.8 N·m |
| Pull strength | 49 N for 1 min | |
| Weight | Approx. 145 g | |
Note: These values are initial values.
*1. Measurement: 1 A at 5 V DC
*2. Ambient temperature: 23°C
*3. The current consumption is the value when all points are ON and includes the G6D Relay coil current.

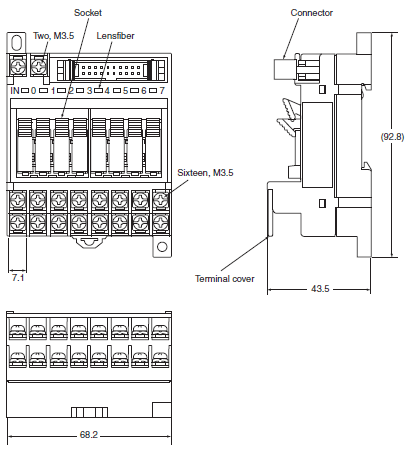

（單位：mm）
