NX-SL5[][][]

• Meets EN ISO 13849-1 (PLe/Safety Category 4) and IEC 61508 (SIL3)

• CIP Safety^TM allows standard devices and safety devices to be mixed on the same EtherNet/IP network

• Safety over EtherCAT (FSoE) allows standard devices and safety devices to be mixed on the same EtherCAT® network

• Reusable safety program POUs according to IEC 61131-3 make programming more efficient

• PLCopen® Function Blocks for Safety reduce time and cost to learn safety design

• Safety I/O wiring diagrams, safety circuit programs, and user-defined Function Blocks can be automatically generated, minimizing safety design errors

• Simple Automatic Test using Offline Simulation is available. Online Functional Test ensures and maintains safety during machine commissioning and operation

• Sysmac and SYSMAC are trademarks or registered trademarks of OMRON Corporation in Japan and other countries for OMRON factory automation products.

• Microsoft, Windows, Windows Vista, Excel, and Visual Basic are either registered trademarks or trademarks of Microsoft Corporation in the United States and other countries.

• EtherCAT® is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany.

• Safety over EtherCAT® is a registered trademark and a patented technology licensed by Beckhoff Automation GmbH, Germany.

• ODVA, CIP^TM, CompoNet^TM, DeviceNet^TM, EtherNet/IP^TM, and CIP Safety^TM are trademarks of ODVA.

• PLCopen® and related logo are registered trademarks of PLCopen®.

• The SD and SDHC logos are trademarks of SD-3C, LLC.

Other company names and product names in this document are the trademarks or registered trademarks of their respective companies.

There is no accessory.

Please purchase a DVD and required number of licenses the first time you purchase the Sysmac Studio. DVDs and licenses are available individually. Each model of licenses does not include any DVD.

Note: For details of the automation software Sysmac Studio, refer to your local OMRON website.
*1. SYSMAC-SE200D-64 runs on Windows 10 (64-bit edition) or higher.
*2. Multi licenses are available for the Sysmac Studio (3, 10, 30, or 50 licenses).

*1. The FSoE protocol was certified for applications in which OMRON FSoE devices are connected to each other.
For compatibility with FSoE devices other than OMRON FSoE devices, the customer must validate FSoE communications.
*2. Only NX-SL5500/5700 have obtained IEC 61131-6 and FSPC certifications.

The NX-series Safety Control Units allow you to build a safety control system that meets the following standards.
• Requirements for SIL 3 (Safety Integrity Level 3) in IEC 61508, IEC/EN 62061, (Functional Safety of Electrical/Electronic/Programmable Electronic Safety-related Systems)
• Requirements for PLe (Performance Level e) and for safety category 4 in EN ISO13849-1

* The specification is for the Communication Control Unit, Safety Input Unit, and Safety Output Unit, not for the Safety CPU Unit.

*1. This is the maximum number of Safety I/O connections that can be set to this Unit. The value is the total number of CIP Safety originator connections, CIP Safety target connections, and FSoE master connections.
*2. The cable length for the Units (Communication Control Unit and Power Supply Unit for NX Units) that supply power to the corresponding Unit must be up to 20 m.
*3. Only NX102 CPU Units and Communication Control Units can be connected. NX1P2 CPU Units or Communications Coupler Units cannot be connected.

Refer to your local OMRON website for function specifications of the Safety Control Unit.

This section describes the combinations that can be used of the unit versions of the Safety Control Unit and NX102 CPU unit, and the version of the Sysmac Studio.

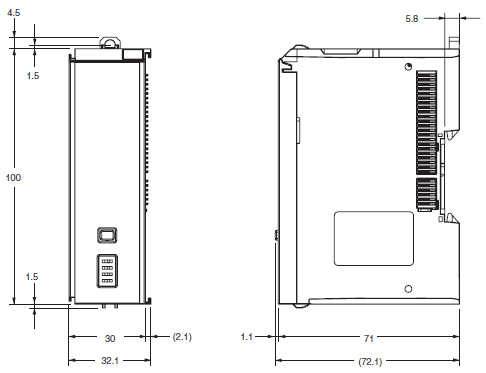

（單位：mm）
