J7KC Series

產品特色

Best Match for upto 2.2 kW (240 VAC) *, 5.5 kW (440 VAC) Motor and Primary Side switches * Based on JIS C 8201-4-1

商品洽詢

- 產品描述 - 種類額定/性能外觀尺寸型錄操作手冊 CAD

New Value For Control Panels

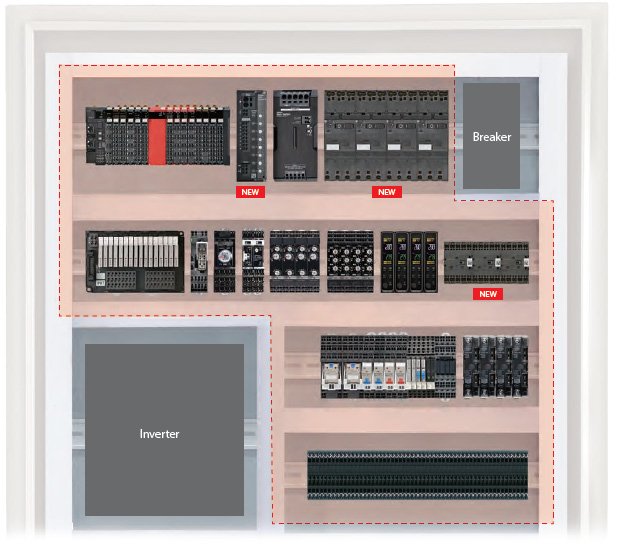

Control Panels: The Heart of Manufacturing Sites.
Evolution in control panels results in large evolution in production facilities.
And if control panel design, control panel manufacturing processes, and human interaction with them are innovated, control panel manufacturing becomes simpler and takes a leap forward.
OMRON will continue to achieve a control panel evolution and process innovation through many undertakings starting with the shared Value Design for Panel *1 concept for the specifications of products used in control panels.

*1 Value Design for Panel

Our shared Value Design for Panel (herein after referred to as "Value Design") concept for the specifications of products used in control panels will create new value to our customer’s control panels.
Combining multiple products that share the Value Design concept will further increase the value provided to control panels.

Finally Low Voltage Switching Gears joining into the OMRON’s Panel Solution portfolio

A wide product lineup of Control Panel Solution that cover even motor control contributes to TCO*1 reduction in control panel manufacturing.

*1. TCO: Total Cost of Ownership. Total cost from control panel design / production to operation / maintenance.

Main Features of Value Design

To further improve control panels with newly added Low Voltage Switch Gears for motor control

Best match for a motor drive (AC3 Class) and a primary side of drive control equipment

Compact

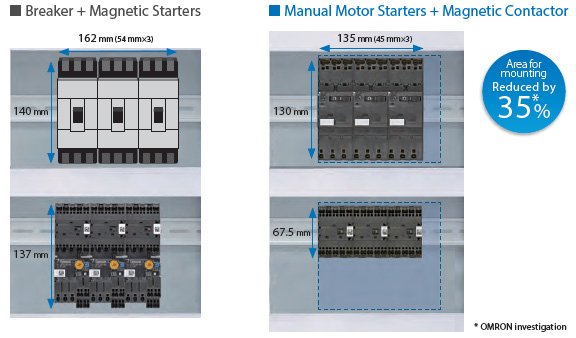

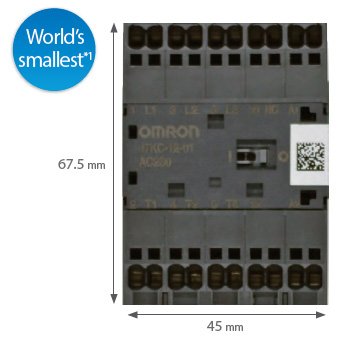

The widths of all series models are unified to 45 mm.
Compactly mountable in a control panel

Conform to Main Safety Standards

Mirror contact mechanism

Supports safety applications

High endurance

One million times or more of electrical endurance*2

*1. Based on June 2019 OMRON investigation. On the Push-In models.
*2. Shutting off by thermal overload relay is excluded.

Space-saving design helps downsize control panels.

Total solution for motor applications

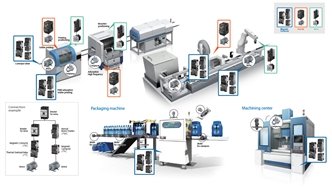

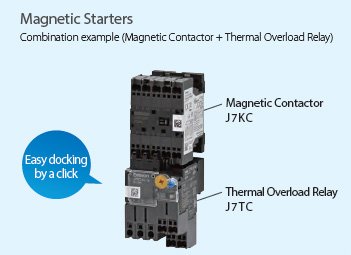

New lineup of ON/OFF controllable Low Voltage Switching Gears supports total motor application, in addition to inverters and servos

PCB assembly production line

Model Number Structure

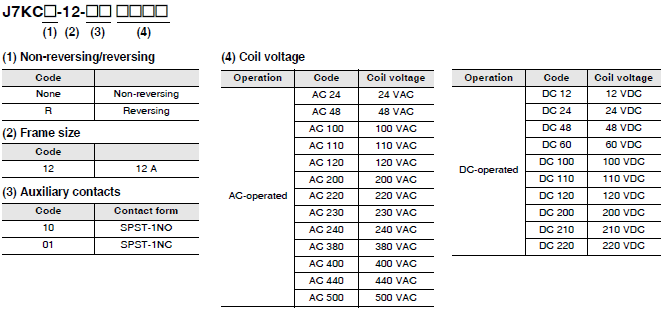

Model Number Legend

Order according to the format described in Ordering Information.

Ordering Information

Main unit

Product Type	Operation	Coil rating	Auxiliary contact	Model
Magnetic contactor	AC-operated	24 VAC	SPST-1NO	J7KC-12-10 AC24
		24 VAC	SPST-1NC	J7KC-12-01 AC24
		48 VAC	SPST-1NO	J7KC-12-10 AC48
		48 VAC	SPST-1NC	J7KC-12-01 AC48
		100 VAC	SPST-1NO	J7KC-12-10 AC100
		100 VAC	SPST-1NC	J7KC-12-01 AC100
		110 VAC	SPST-1NO	J7KC-12-10 AC110
		110 VAC	SPST-1NC	J7KC-12-01 AC110
		120 VAC	SPST-1NO	J7KC-12-10 AC120
		120 VAC	SPST-1NC	J7KC-12-01 AC120
		200 VAC	SPST-1NO	J7KC-12-10 AC200
		200 VAC	SPST-1NC	J7KC-12-01 AC200
		220 VAC	SPST-1NO	J7KC-12-10 AC220
		220 VAC	SPST-1NC	J7KC-12-01 AC220
		230 VAC	SPST-1NO	J7KC-12-10 AC230
		230 VAC	SPST-1NC	J7KC-12-01 AC230
		240 VAC	SPST-1NO	J7KC-12-10 AC240
		240 VAC	SPST-1NC	J7KC-12-01 AC240
		380 VAC	SPST-1NO	J7KC-12-10 AC380
		380 VAC	SPST-1NC	J7KC-12-01 AC380
		400 VAC	SPST-1NO	J7KC-12-10 AC400
		400 VAC	SPST-1NC	J7KC-12-01 AC400
		440 VAC	SPST-1NO	J7KC-12-10 AC440
		440 VAC	SPST-1NC	J7KC-12-01 AC440
		500 VAC	SPST-1NO	J7KC-12-10 AC500
		500 VAC	SPST-1NC	J7KC-12-01 AC500
	DC-operated (With built-in surge absorption uni)	12 VDC	SPST-1NO	J7KC-12-10 DC12
		12 VDC	SPST-1NC	J7KC-12-01 DC12
		24 VDC	SPST-1NO	J7KC-12-10 DC24
		24 VDC	SPST-1NC	J7KC-12-01 DC24
		48 VDC	SPST-1NO	J7KC-12-10 DC48
		48 VDC	SPST-1NC	J7KC-12-01 DC48
		60 VDC	SPST-1NO	J7KC-12-10 DC60
		60 VDC	SPST-1NC	J7KC-12-01 DC60
		100 VDC	SPST-1NO	J7KC-12-10 DC100
		100 VDC	SPST-1NC	J7KC-12-01 DC100
		110 VDC	SPST-1NO	J7KC-12-10 DC110
		110 VDC	SPST-1NC	J7KC-12-01 DC110
		120 VDC	SPST-1NO	J7KC-12-10 DC120
		120 VDC	SPST-1NC	J7KC-12-01 DC120
		200 VDC	SPST-1NO	J7KC-12-10 DC200
		200 VDC	SPST-1NC	J7KC-12-01 DC200
		210 VDC	SPST-1NO	J7KC-12-10 DC210
		210 VDC	SPST-1NC	J7KC-12-01 DC210
		220 VDC	SPST-1NO	J7KC-12-10 DC220
		220 VDC	SPST-1NC	J7KC-12-01 DC220
Reversing magnetic contactor	AC-operated	24 VAC	SPST-1NO	J7KCR-12-10 AC24
		24 VAC	SPST-1NC	J7KCR-12-01 AC24
		48 VAC	SPST-1NO	J7KCR-12-10 AC48
		48 VAC	SPST-1NC	J7KCR-12-01 AC48
		100 VAC	SPST-1NO	J7KCR-12-10 AC100
		100 VAC	SPST-1NC	J7KCR-12-01 AC100
		110 VAC	SPST-1NO	J7KCR-12-10 AC110
		110 VAC	SPST-1NC	J7KCR-12-01 AC110
		120 VAC	SPST-1NO	J7KCR-12-10 AC120
		120 VAC	SPST-1NC	J7KCR-12-01 AC120
		200 VAC	SPST-1NO	J7KCR-12-10 AC200
		200 VAC	SPST-1NC	J7KCR-12-01 AC200
		220 VAC	SPST-1NO	J7KCR-12-10 AC220
		220 VAC	SPST-1NC	J7KCR-12-01 AC220
		230 VAC	SPST-1NO	J7KCR-12-10 AC230
		230 VAC	SPST-1NC	J7KCR-12-01 AC230
		240 VAC	SPST-1NO	J7KCR-12-10 AC240
		240 VAC	SPST-1NC	J7KCR-12-01 AC240
		380 VAC	SPST-1NO	J7KCR-12-10 AC380
		380 VAC	SPST-1NC	J7KCR-12-01 AC380
		400 VAC	SPST-1NO	J7KCR-12-10 AC400
		400 VAC	SPST-1NC	J7KCR-12-01 AC400
		440 VAC	SPST-1NO	J7KCR-12-10 AC440
		440 VAC	SPST-1NC	J7KCR-12-01 AC440
		500 VAC	SPST-1NO	J7KCR-12-10 AC500
		500 VAC	SPST-1NC	J7KCR-12-01 AC500
	DC-operated (With built-in surge absorption unit)	12 VDC	SPST-1NO	J7KCR-12-10 DC12
		12 VDC	SPST-1NC	J7KCR-12-01 DC12
		24 VDC	SPST-1NO	J7KCR-12-10 DC24
		24 VDC	SPST-1NC	J7KCR-12-01 DC24
		48 VDC	SPST-1NO	J7KCR-12-10 DC48
		48 VDC	SPST-1NC	J7KCR-12-01 DC48
		60 VDC	SPST-1NO	J7KCR-12-10 DC60
		60 VDC	SPST-1NC	J7KCR-12-01 DC60
		100 VDC	SPST-1NO	J7KCR-12-10 DC100
		100 VDC	SPST-1NC	J7KCR-12-01 DC100
		110 VDC	SPST-1NO	J7KCR-12-10 DC110
		110 VDC	SPST-1NC	J7KCR-12-01 DC110
		120 VDC	SPST-1NO	J7KCR-12-10 DC120
		120 VDC	SPST-1NC	J7KCR-12-01 DC120
		200 VDC	SPST-1NO	J7KCR-12-10 DC200
		200 VDC	SPST-1NC	J7KCR-12-01 DC200
		210 VDC	SPST-1NO	J7KCR-12-10 DC210
		210 VDC	SPST-1NC	J7KCR-12-01 DC210
		220 VDC	SPST-1NO	J7KCR-12-10 DC220
		220 VDC	SPST-1NC	J7KCR-12-01 DC220

Options (Order Separately)

Auxiliary contact unit

Number of poles	Auxiliary contact	Model
2 poles	2PST-2NO	J73KC-AM-20
	2PST-1NO 1NC	J73KC-AM-11
	2PST-2NC	J73KC-AM-02
4 poles	4PST-4NO	J73KC-AM-40
	4PST-3NO 1NC	J73KC-AM-31
	4PST-2NO 2NC	J73KC-AM-22
	4PST-1NO 3NC	J73KC-AM-13
	4PST-4NC	J73KC-AM-04

Interlock unit

Model
J74KC-A

Reversing conductor kit

Type	Model
For main circuit	J75KC-WKR-A
For auxiliary circuit	J75KC-WKR-B

Coil surge absorption unit

Adopted Coil voltage type	LED indicator	Model
24-48 VAC	No	J76KC-RC-1
48-125 VAC		J76KC-RC-2
100-250 VAC		J76KC-RC-3
24-48 VAC	Yes	J76KC-RC-N-1
48-125 VAC	Yes	J76KC-RC-N-2

Insulation stop

Model	Minimum order (bag)
J77KC-K	1 (30 pcs./bag)

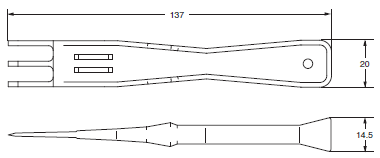

Tools for removal

Model
J78KC

DIN Rails (Order Separately)

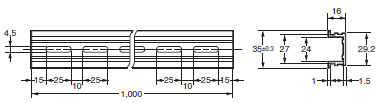

Mounting Rail

Model
PFP-100N
PFP-50N

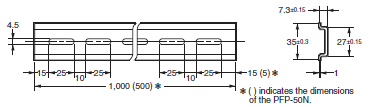

Mounting Rail

Model
PFP-100N2

End Plate

Model
PFP-M

Spacer

Model
PFP-S

Note:
1. Order the DIN Rails (Order Separately) in units of ten.
2. Rails conform to DIN standards.

The ratings/specifications are the same for both non-reversing/reversing types.

Coil rating

AC operated

Displayed model	Rated voltage		Allowable voltage range			Must operate voltage	Must release voltage
Displayed model	50 Hz	60 Hz		50 Hz	60 Hz	Must operate voltage	Must release voltage
AC 24	24 VAC	24-26 VAC	85 to 110%	21-27 VAC	21-29 VAC	85% max.	20% min.
AC 48	48 VAC	48-52 VAC		41-53 VAC	41-58 VAC
AC 100	100 VAC	100-110 VAC		85-110 VAC	85-121 VAC
AC 110	100-110 VAC	110-120 VAC		85-121 VAC	94-132 VAC
AC 120	110-120 VAC	120-130 VAC		94-132 VAC	102-143 VAC
AC 200	200 VAC	200-220 VAC		170-220 VAC	170-242 VAC
AC 220	200-220 VAC	220-240 VAC		170-242 VAC	187-264 VAC
AC 230	220-230 VAC	230 VAC		187-253 VAC	196-253 VAC
AC 240	220-240 VAC	240-260 VAC		187-264 VAC	204-286 VAC
AC 380	346-380 VAC	380-420 VAC		295-418 VAC	323-462 VAC
AC 400	380-400 VAC	400-440 VAC		323-440 VAC	340-484 VAC
AC 440	415-440 VAC	440-480 VAC		353-484 VAC	374-528 VAC
AC 500	480-500 VAC	500-550 VAC		408-550 VAC	425-605 VAC

DC operated

Displayed model	Rated voltage	Allowable voltage range		Must operate voltage	Must release voltage
DC 12	12 VDC	85 to 110%	11-14 VDC	85% max.	10% min.
DC 24	24 VDC		21-27 VDC
DC 48	48 VDC		41-53 VDC
DC 60	60 VDC		51-66 VDC
DC 100	100 VDC		85-110 VDC
DC 110	110 VDC		94-121 VDC
DC 120	120 VDC		102-132 VDC
DC 200	200 VDC		170-220 VDC
DC 210	210 VDC		179-231 VDC
DC 220	220 VDC		187-242 VDC

Coil characteristics (reference value)

AC operated

Frequency		50 Hz	60 Hz
Coil power consumption	Making (VA)	22 (200 V)	25 (220 V)
Coil power consumption	Holding (VA)	4.5 (200 V)	4.5 (220 V)
Power loss (W)		1.2 (200 V)	1.3 (220 V)
Must operate voltage (V)		122 to 135	128 to 138
Must release voltage (V)		80 to 89	83 to 96
Operate time (ms)		17 to 26
Release time (ms)		6 to 16

Note:
1. Coil ratings: Characteristics for 200 VAC, 50 Hz / 200-220 VAC, 60 Hz
2. Coil power consumption value is the same for a coil that is not rated 200 VAC.
3. Indicated operate/release times for 200 VAC, 50 Hz.
4. Closed and open voltages of 100 V coil (100 VAC, 50 Hz/100-110 VAC, 60 Hz) are approximately one half the values in the table above.
5. Values in the table above are examples for 20°C cold condition.

DC operated

Coil power consumption	Making (W)	2.4 (24 V)
Coil power consumption	Holding (W)	2.2 (24 V)
Time constant (ms)	Holding	20
Must operate voltage (V)		10 to 11
Must release voltage (V)		4 to 6
Operate time (ms)		34 to 60
Release time (ms)		5 to 10

Note:
1. Coil ratings: Characteristics for 24 VDC
2. Coil power consumption value is the same for a coil that is not rated 24 VDC.
3. Values in the table above are examples for 20°C cold condition.

Ratings/Characteristics

Main circuit rating	Rating based on IEC 60947-4-1	AC-1 (Resistive load)	Voltage range (V)		AC200-240 AC						AC380-440 AC
		AC-1 (Resistive load)	Rated operational current (A)		15						15
		AC-3 (3-phase cage motor)	Voltage range (V)		200-240 AC			380-440 AC			500-550 AC			600-690 AC
			Rated capacity (kW)		3			5.5			5.5			4
			Rated operational current (A)		12			12			9			5
		AC-4 (3-phase cage motor)	Voltage range (V)		200-240 AC			380-440 AC			500-550 AC			600-690 AC
			Rated capacity (kW)		3			5.5			5.5			4
			Rated operational current (A)		12			12			9			5
		DC-1 (Resistive load L/R ≤ 1 ms)	Voltage range (V)		24 DC			48 DC			110 DC			220 DC
			Rated operational current (A)	Number of serial contacts 1	12			12			3			0.7
				Number of serial contacts 2	12			12			9			4
				Number of serial contacts 3	12			12			12			12
		DC-3, DC-5 (DC motor load L/R ≤ 15 ms)	Voltage range (V)		24 DC			48 DC			110 DC			220 DC
			Rated operational current (A)	Number of serial contacts 1	2			1.5			1			0.1
				Number of serial contacts 2	10			3			0.85			0.35
				Number of serial contacts 3	12			6			1.7			0.7
		Conventional free air thermal current (rated flowing current) (A)			15
	Rating based on UL 60947-4-1, CSA C22.2	3-phase motor	Voltage range (V)		200 AC			220-240 AC			440-480 AC			550-600 AC
			Rated capacity (HP)		3			3			5			5
			Rated operational current (A)		11			9.6			7.6			6.1
			Rated current (A)		15
		Single-phase motor	Voltage range (V)		110-120 AC				200 AC				220-240 AC
			Rated capacity (HP)		3/4				1-1/2				2
			Rated operational current (A)		13.8				11.5				12
			Rated current (A)		15
		FUSE			30A (Class K5, RK5)
	Rating based on JIS C 8201-4-1	AC-1 (resistive load)	Voltage range (V)		200-240 AC						380-440 AC
		AC-1 (resistive load)	Rated operational current (A)		15						15
		AC-3 (3-phase cage motor)	Voltage range (V)		200-240 AC				380-440 AC				500-550 AC
			Rated capacity (kW)		2.2				5.5				5.5
			Rated operational current (A)		12				12				9
		DC-1 (Resistive load L/R ≤ 1 ms)	Voltage range (V)		24 DC			48 DC			110 DC			220 DC
			Rated operational current (A)	Number of serial contacts 1	12			12			3			0.7
				Number of serial contacts 2	12			12			9			4
				Number of serial contacts 3	12			12			12			12
		DC-3, DC-5 (DC motor load L/R ≤ 15 ms)	Voltage range (V)		24 DC			48 DC			110 DC			220 DC
			Rated operational current (A)	Number of serial contacts 1	2			1.5			1			0.1
				Number of serial contacts 2	10			3			0.85			0.35
				Number of serial contacts 3	12			6			1.7			0.7
		Conventional free air thermal current (rated flowing current) (A)			15
	Minimum operate voltage/current (reference value)				24 VDC 10 mA
	Electrical/ mechanical endurance	Voltage range (V)			220 AC						440 AC
		Rated operational current (A)			12						12
		Contact closed current (A)			144						144
		Breaking current (A)			120						120
		Switching frequency (times per hour)			1800						1800
		Endurance (10,000 operations min.)		Mechanical	1000						1000
		Endurance (10,000 operations min.)		Electrical (AC3)	100 *1
	Contact resistance (reference value)				10 mΩ max. (6 VDC, 1 mA, voltage drop method)
Auxiliary circuit rating	Rating based on IEC 60947-5-1/ JIS C 8201-5-1	Voltage range (V)			100-120 AC	200-240 AC		380-440 AC		500-600 AC	24 DC	48 DC		110 DC		220 DC
		Rated operational current (A)			AC-15 (coil load)						DC-13 (coil load)
					3	3		1		0.5	2	1		0.3		0.2
					AC-12 (resistive load)						DC-12 (resistive load)
					6	6		6		3	3	2		1.5		0.5
		Contact closed and breaking current (A)			30	30		10		5	30	30		10		5
		Conventional free air thermal current (rated flowing current) (A)			10
	Rating based on UL 508	Rated carry current (A)			10								2.5
		Voltage range (V)			120 AC		240 AC		480 AC		600 AC		125 DC		250 DC
		Contact closed current (A)			60		30		15		12		0.55		0.27
		Breaking current (A)			6		3		1.5		1.2		0.55		0.27
		Rating code			A 600								Q 300
	Minimum operate voltage/current (reference value)				3 mA at 5 VDC
	Electrical/ mechanical endurance	Switching frequency (times per hour)			1800
		Mechanical (10,000 cycles min.)			1000
		Electrical (10,000 cycles min.)	AC-15	220 V	50
			AC-15	440 V	50
			AC-12	220 V	25
			AC-12	440 V	25
			DC-13	220 V	15
			DC-12	220 V	50
	Contact resistance (reference value)				50 mΩ max. (6 VDC, 1 mA, voltage drop method)
Rated insulation voltage					690 VAC
Rated impulse dielectric strength					6 kV
Rated frequency					50/60 Hz
Vibration resistance					Vibration: 10 to 55 Hz, acceleration: 15 m/s²
Shock resistance					Shock value 50 m/s²
Contact form					Double break form (main circuit: single contacts, auxiliary circuit: bifurcated contacts)
Contact material					Ag alloy
Mirror contact					Available *2
Degree of protection					IP20 (IEC60529)
Operating temperature					-10 to +55°C (however, daily average shall not exceed 35°C)
Ambient storage temperature					-40 to +65°C (no condensation or icing)
Relative humidity					45% to 85% RH (no condensation or icing)
Altitude					2000 m max.
Weight					160 g (J7KC-[]-AC)/190 g (J7KC-[]-DC)/400 g (J7KCR-[]-AC)/460 g (J7KCR-[]-DC)
Applicable Standards		Safety standard			EN 60947-4-1(IEC 60947-4-1), UL 60947-4-1, CSA 22.2 No.60947-4-1, CCC GB/T14048.4, UKCA

*1. The electrical endurance is the value at 200 V based on the electrical endurance test conditions assumed in the IEC/JIS standards, and will vary depending on the characteristics and load conditions of the motor you use. A large motor starting current may cause a decrease of electrical endurance or contact sticking.

*2. A mirror contact is a mechanism found mainly in contactors.
With the combination of the main circuit and the auxiliary circuit of the main unit, welding the main contacts will result in a structure that secures a shock resistance voltage of 2.5 kV or more, or a contact interval of 0.5 mm or more, for all of the auxiliary circuit NC contacts even if the excitation of the coil is released. The main contact may turn on even if the auxiliary circuit is welded. Even with the combined usage of the auxiliary contact unit (J73KC-AM), welding the main contact in the main unit will create a mirror contact surface where the attached auxiliary contact (NC contact) is separated.

Options (Order Separately)

Auxiliary contact unit

J73KC

Conventional free air thermal current (rated flowing current) [A]	Contact closed and Breaking current [A]	AC			DC			Minimum operate voltage/ current
		Operating voltage [V]	Rated operational current (A)		Operating voltage [V]	Rated operational current (A)
		Operating voltage [V]	Coil load (AC-15)	Resistive load (AC-12)	Operating voltage [V]	Coil load (DC-13)	Resistive load (DC-12)
10	30	100 to 120 AC	3	6	24 DC	2	3	5 VDC, 3 mA
	30	200 to 240 AC	3	6	48 DC	1	2
	10	380 to 440 AC	1	6	110 DC	0.3	1.5
	5	500 to 600 AC	0.5	3	220 DC	0.2	0.5

Coil surge absorption unit

Model	Surge absorber	Varistor voltage	LED indicator	Applicable model		Control circuit voltage
Model	Surge absorber	Varistor voltage	LED indicator	AC operated	DC operated	AC	DC
J76KC-RC-1	Varistor	100 V	---	J7KC-[]-AC	---	24-48 VAC	Not required *
J76KC-RC-2		240 V				48-125 VAC
J76KC-RC-3		470 V				100-250 VAC
J76KC-RC-N-1		100 V	LED (red)			24-48 VAC
J76KC-RC-N-2		240 V	LED (red)			48-125 VAC

* The DC operated (J7KC-[]-DC) has a varistor built into the main unit.

（單位：mm）

Main unit

Magnetic contactor

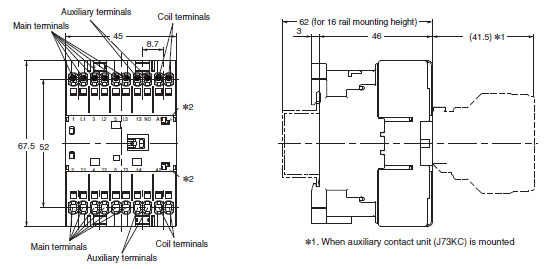

J7KC

Reversing magnetic contactor

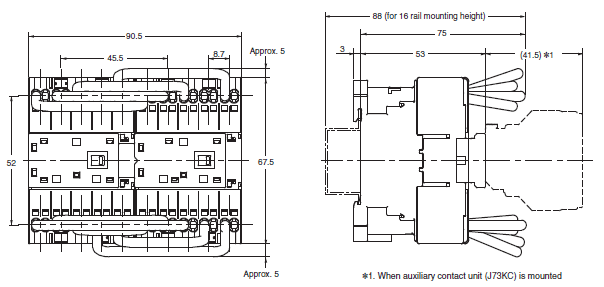

J7KCR

Options (Order Separately)

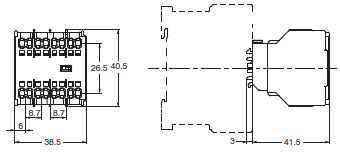

Auxiliary contact unit

J73KC

Interlock unit

J74KC

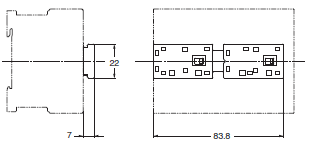

Reversing conductor kit

J75KC-WKR-A

J75KC-WKR-B

Coil surge absorption unit

J76KC-RC

J76KC-RC-N

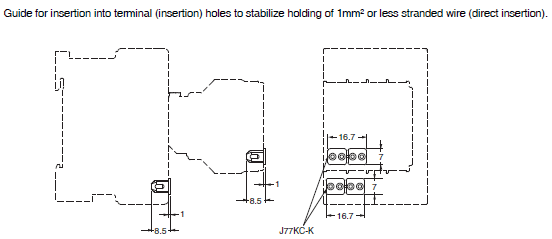

Insulation stop

J77KC-K

Tools for removal

J78KC

DIN Rails (Order Separately)

Mounting Rail

PFP-100N
PFP-50N

Mounting Rail

PFP-100N2

End Plate

PFP-M

Spacer

PFP-S

English

Global Edition

以下是海外共通的產品型錄，其中可能包含不在台灣銷售的型號。

在台灣訂購時請注意確認。

※若型錄PDF檔案太大，建議按滑鼠右鍵＂另存目標＂下載。
Catalog Name	Catalog Number [size]	Last Update
Low Voltage Switching Gears Catalog	J229-E1-01 [2716KB]	Dec 12, 2019 20191212	Low Voltage Switching Gears Catalog
J7KC Series Data Sheet	J230-E1-04 [6213KB]	Jun 20, 2022 20220620	J7KC Series Data Sheet
Value Design for Panel Catalog	Y235-E1-01 [5944KB]	Jul 19, 2022 20220719	Value Design for Panel Catalog

如有需要請洽各所營業人員

誠睿台南所 TEL：06-2493086
誠睿台中所 TEL：04-23380790
誠睿新竹所 TEL：03-6685558
客服信箱 service@hitifa.com.tw

產品&服務

J7KC Series

New Value For Control Panels

Finally Low Voltage Switching Gears joining into the OMRON’s Panel Solution portfolio

A wide product lineup of Control Panel Solution that cover even motor control contributes to TCO*1 reduction in control panel manufacturing.

Main Features of Value Design

To further improve control panels with newly added Low Voltage Switch Gears for motor control

Best match for a motor drive (AC3 Class) and a primary side of drive control equipment

Compact

Conform to Main Safety Standards

Mirror contact mechanism

High endurance

Space-saving design helps downsize control panels.

Total solution for motor applications

PCB assembly production line

Model Number Structure

Model Number Legend

Ordering Information

Main unit

Options (Order Separately)

Auxiliary contact unit

Interlock unit

Reversing conductor kit

Coil surge absorption unit

Insulation stop

Tools for removal

DIN Rails (Order Separately)

Mounting Rail

Mounting Rail

End Plate

Spacer

Coil rating

AC operated

DC operated

Coil characteristics (reference value)

AC operated

DC operated

Ratings/Characteristics

Options (Order Separately)

Auxiliary contact unit

J73KC

Coil surge absorption unit

Main unit

Magnetic contactor

Reversing magnetic contactor

Options (Order Separately)

Auxiliary contact unit

Interlock unit

Reversing conductor kit

Coil surge absorption unit

Insulation stop

Tools for removal

DIN Rails (Order Separately)

Mounting Rail

Mounting Rail

End Plate

Spacer

English

Global Edition

其他產品

G7SA

G7Z

G7S-[]-E
