3Z4S-LE VS-MCL / M42-10 Series

產品特色

A lock ring locking the surface and the improved design of internal structure increase resistance to vibration

商品洽詢

- 產品描述 - 種類額定/性能外觀尺寸型錄 CAD

• Vibrations resistant lens for M42-mount cameras.

• Lineup of 18 models: focal lengths from 18 to 100 mm and F-numbers of maximum aperture, 5.6, and 8.0.

• A lock ring locking the surface and the improved design of internal structure increase resistance to vibration in comparison to the previous model. This enables application in environments where the point-locked lens is moved under the effects of ambient vibration.

• Install in narrow space without a lock screw.

Recom- mend camera	Model	Focal dis- tance (mm)	Aper- ture (F No)	Maxi- mum outer diam- eter (mm)	Total length (mm)	Filter size	WD (mm)	Depth of field (mm)	Maxi- mum com- patible CCD

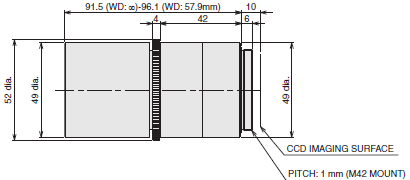

FH-S[]12	3Z4S-LE VS-MCL18/M42-10	18	2.8	52 dia.	91.5 to 96.1	M46.0 P0.75	722.9	367.0	1.8 inches
							168.4	24.6
							57.9	4.5
	3Z4S-LE VS-MCL18-FNO56/M42-10		5.6	52 dia.	91.5 to 96.1	M46.0 P0.75	722.9	735.0
							168.4	188.0
							57.9	9.0
	3Z4S-LE VS-MCL18-FNO80/M42-10		8	52 dia.	91.5 to 96.1	M46.0 P0.75	722.9	1050.0
							168.4	269.0
							57.9	12.8

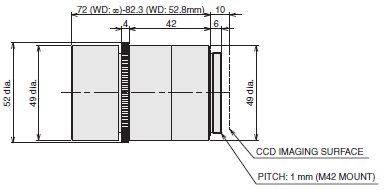

	3Z4S-LE VS-MCL25/M42-10	25	2.6	52 dia.	72.0 to 82.3	M46.0 P0.75	1010.8	367.0	1.8 inches
							496.6	94.0
							52.8	1.8
	3Z4S-LE VS-MCL25-FNO56/M42-10		5.6	52 dia.	72.0 to 82.3	M46.0 P0.75	1010.8	735.0
							496.6	188.0
							52.8	3.9
	3Z4S-LE VS-MCL25-FNO80/M42-10		8	52 dia.	72.0 to 82.3	M46.0 P0.75	1010.8	1050.0
							496.6	269.0
							52.8	5.6

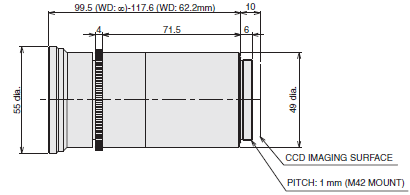

	3Z4S-LE VS-MCL35/M42-10	35	2.8	55 dia.	99.5 to 117.6	M52.0 P0.75	1437.4	367.0	1.8 inches
							346.8	24.6
							62.2	1.3
	3Z4S-LE VS-MCL35-FNO56/M42-10		5.6	55 dia.	99.5 to 117.6	M52.0 P0.75	1437.4	735.0
							346.8	49.3
							62.2	2.7
	3Z4S-LE VS-MCL35-FNO80/M42-10		8	55 dia.	99.5 to 117.6	M52.0 P0.75	1437.4	1050.0
							346.8	70.4
							62.2	3.8

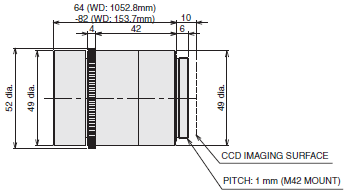

	3Z4S-LE VS-MCL50/M42-10	50	2.8	52 dia.	64.0 to 82.0	M46.0 P0.75	1025.0	97.6	1.8 inches
							513.7	24.6
							153.7	2.0
	3Z4S-LE VS-MCL50-FNO56/M42-10		5.6	52 dia.	64.0 to 82.0	M46.0 P0.75	1025.0	188.0
							513.7	49.3
							153.7	3.9
	3Z4S-LE VS-MCL50-FNO80/M42-10		8	52 dia.	64.0 to 82.0	M46.0 P0.75	1025.0	269.0
							513.7	70.4
							153.7	5.6

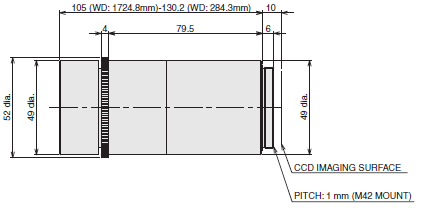

	3Z4S-LE VS-MCL85/M42-10	85	4	52 dia.	105.0 to 130.2	M46.0 P0.75	1724.8	134.0	1.8 inches
							452.5	9.6
							285.0	3.5
	3Z4S-LE VS-MCL85-FNO56/M42-10		5.6	52 dia.	105.0 to 130.2	M46.0 P0.75	1724.8	188.0
							452.5	13.4
							285.0	4.9
	3Z4S-LE VS-MCL85-FNO80/M42-10		8	52 dia.	105.0 to 130.2	M46.0 P0.75	1724.8	269.0
							452.5	19.2
							285.0	7.1

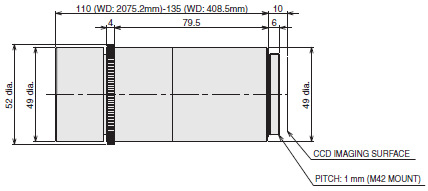

	3Z4S-LE VS-MCL100/M42-10	100	2.8	52 dia.	110.0 to 135.0	M46.0 P0.75	2050.2	94.1	1.8 inches
							1075.2	24.6
							408.5	3.2
	3Z4S-LE VS-MCL100-FNO56/M42-10		5.6	52 dia.	110.0 to 135.0	M46.0 P0.75	2050.2	188.0
							1075.2	49.3
							408.5	6.5
	3Z4S-LE VS-MCL100-FNO80/M42-10		8	52 dia.	110.0 to 135.0	M46.0 P0.75	2050.2	269.0
							1075.2	70.4
							408.5	9.2

Mounting	M42 mount
Ambient temperature	Operating: -5 to 50°C, Storage: -10 to 60°C (with no icing or condensation)
Ambient humidity	Operating: 0% to 80%, Storage: 0% to 90% (with no condensation)
