3Z4S-LE VS-MCA Series

產品特色

Vibrations and shocks resistant lens for megapixel C-mount cameras

商品洽詢

- 產品描述 - 種類額定/性能外觀尺寸型錄 CAD

• Vibrations and shocks resistant lens for megapixel C-mount cameras.

• Lineup of 10 models with focal lengths ranging from 4 to 75 mm.

• The increased resistance to vibration enables application in environments where the lens is moved and where ambient vibrations occur.

• Install in narrow space without a lock screw.

• The hexagonal lock ring makes tightening easier.

Recom- mended camera	Model	Focal distance (mm)	Aper- ture (fixed F No.)	Maximum outer diameter (mm)	Total length (mm)	Filter size	WD (mm)	Depth of field * (mm)	Maximum compa- tible CCD
FZ-S[] FZ-SH[] FH-S[] FH-S[]X FH-S[]05R FHV7H-[]	3Z4S-LE VS-MCA4	4	2	31 dia.	29.0 to 29.2	M27.0 P0.5	403.2	1680.0	1/2 inch
							196.2	420.0
							92.7	105.0
	3Z4S-LE VS-MCA4-F5.6		5.6	31 dia.	29.0 to 29.2	M27.0 P0.5	403.2	4560.0
							196.2	1140.0
							92.7	290.0
	3Z4S-LE VS-MCA4-F8		8	31 dia.	29.0 to 29.2	M27.0 P0.5	403.2	6480.0
							196.2	1640.0
							92.7	415.0
	3Z4S-LE VS-MCA6.5	6.5	2	31 dia.	23.1 to 23.4	M27.0 P0.5	656.0	1840.0	1/2 inch
							209.6	204.4
							98.0	51.1
	3Z4S-LE VS-MCA6.5-F5.6		5.6	31 dia.	23.1 to 23.4	M27.0 P0.5	656.0	4560.0
							209.6	515.6
							98.0	131.1
	3Z4S-LE VS-MCA6.5-F8		8	31 dia.	23.1 to 23.4	M27.0 P0.5	656.0	6480.0
							209.6	728.9
							98.0	188.9
	3Z4S-LE VS-MCA10	10	2	31 dia.	24.2 to 25.5	M27.0 P0.5	504.1	460.0	1/2 inch
							94.0	19.2
							59.9	9.2
	3Z4S-LE VS-MCA10-F5.6		5.6	31 dia.	24.2 to 25.5	M27.0 P0.5	504.1	1140.0
							94.0	49.6
							59.9	22.8
	3Z4S-LE VS-MCA10-F8		8	31 dia.	24.2 to 25.5	M27.0 P0.5	504.1	1640.0
							94.0	70.4
							59.9	32.7
FZ-S[] FZ-SH[] FH-S[] FH-S[]X FZ-S[]2M FZ-S[]5M3 FH-S[]05R FH-S[]X05	3Z4S-LE VS-MCA15	15	2	31 dia.	27.9 to 32.0	M27.0 P0.5	490.7	186.7	2/3 inch
							65.4	4.8
							40.3	2.3
	3Z4S-LE VS-MCA15-F5.6		5.6	31 dia.	27.9 to 32.0	M27.0 P0.5	490.7	515.6
							65.4	13.4
							40.3	6.5
	3Z4S-LE VS-MCA15-F8		8	31 dia.	27.9 to 32.0	M27.0 P0.5	490.7	728.9
							65.4	19.2
							40.3	9.2
FZ-S[] FZ-SH[] FH-S[] FH-S[]X FZ-S[]2M FZ-S[]5M3 FH-S[]05R FH-S[]X05 FHV7H-[]	3Z4S-LE VS-MCA20	20	2	31 dia.	24.5 to 32.0	M27.0 P0.5	516.8	105.0	2/3 inch
							81.8	3.2
							50.7	1.5
	3Z4S-LE VS-MCA20-F5.6		5.6	31 dia.	24.5 to 32.0	M27.0 P0.5	516.8	290.0
							81.8	9.0
							50.7	3.9
	3Z4S-LE VS-MCA20-F8		8	31 dia.	24.5 to 32.0	M27.0 P0.5	516.8	415.0
							81.8	12.8
							50.7	5.6
	3Z4S-LE VS-MCA25	25	2	31 dia.	27.0 to 38.5	M27.0 P0.5	514.6	67.2	2/3 inch
							106.6	3.2
							55.6	1.0
	3Z4S-LE VS-MCA25-F5.6		5.6	31 dia.	27.0 to 38.5	M27.0 P0.5	514.6	188.8
							106.6	9.0
							55.6	2.7
	3Z4S-LE VS-MCA25-F8		8	31 dia.	27.0 to 38.5	M27.0 P0.5	514.6	268.8
							106.6	12.8
							55.6	3.8
	3Z4S-LE VS-MCA30	30	2	31 dia.	24.5 to 36.2	M27.0 P0.5	513.5	53.3	2/3 inch
							213.5	8.2
							80.1	1.3
	3Z4S-LE VS-MCA30-F5.6		5.6	31 dia.	24.5 to 36.2	M27.0 P0.5	513.5	131.1
							213.5	22.8
							80.1	3.2
	3Z4S-LE VS-MCA30-F8		8	31 dia.	24.5 to 36.2	M27.0 P0.5	513.5	188.9
							213.5	32.7
							80.1	4.6

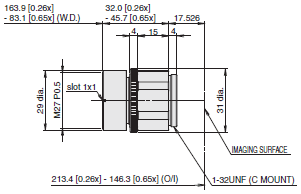

	3Z4S-LE VS-MCA35	35	2	31 dia.	32.0 to 45.7	M27.0 P0.5	163.9	3.0	2/3 inch
							145.9	2.2
							83.1	0.7
	3Z4S-LE VS-MCA35-F5.6		5.6	31 dia.	32.0 to 45.7	M27.0 P0.5	163.9	8.4
							145.9	6.5
							83.1	1.7
	3Z4S-LE VS-MCA35-F8		8	31 dia.	32.0 to 45.7	M27.0 P0.5	163.9	12.0
							145.9	9.2
							83.1	2.5

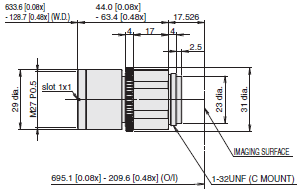

	3Z4S-LE VS-MCA50	50	2	31 dia.	44.0 to 63.4	M27.0 P0.5	633.6	32.5	2/3 inch
							270.1	6.0
							128.7	1.3
	3Z4S-LE VS-MCA50-F5.6		5.6	31 dia.	44.0 to 63.4	M27.0 P0.5	633.6	75.0
							270.1	13.4
							128.7	2.9
	3Z4S-LE VS-MCA50-F8		8	31 dia.	44.0 to 63.4	M27.0 P0.5	633.6	107.5
							270.1	19.2
							128.7	4.1

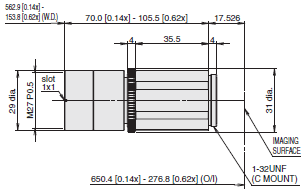

	3Z4S-LE VS-MCA75	75	2	31 dia.	70.0 to 105.5	M27.0 P0.5	562.9	16.7	2/3 inch
							404.4	9.2
							153.8	1.3
	3Z4S-LE VS-MCA75-F5.6		5.6	31 dia.	70.0 to 105.5	M27.0 P0.5	562.9	28.6
							404.4	13.4
							153.8	2.5
	3Z4S-LE VS-MCA75-F8		8	31 dia.	70.0 to 105.5	M27.0 P0.5	562.9	41.2
							404.4	19.2
							153.8	3.6

Note: Vibrations and Shocks Resistant Lenses for 1-inch image sensors are also available. Ask your OMRON representative for details.
* Calculated using a permissible circle of confusion diameter of 0.04 mm.

Mounting	C mount
Ambient temperature	Operating: -5 to 50°C, Storage: -10 to 60°C (with no icing or condensation)
Ambient humidity	Operating: 35% to 80%, Storage: 35% to 90% (with no condensation)
