• Ultra-high-resolution telecentric lens for 1.1-inch cameras.
• Lineup of 3 models to meet various optical magnification requirements.
• Variable magnification for use at a wide range of working distances. Balance between depth of field and contrast can be adjusted.
• Low-distortion design.
• High-quality images can be obtained from any part of the area.
• Ideal for high-accuracy alignment.
| Recommended camera |
Model | Optical magnifi- cation |
WD *1 (mm) |
Effec- tive FNO * Maxi- mum aper- ture |
Depth of field *2 (mm) |
Reso- lution *3 (mm) |
TV distor- tion |
Weight (g) |
Maximum compa- tible CCD |
|---|---|---|---|---|---|---|---|---|---|
| FH-S[]02 FH-S[]04 FH-S[]X12 FH-S[]21R |
3Z4S-LE VS-TEV0305 | 0.3 × | 221.5 | 4.3 | 3.8 | 9.59 | 0.03% | 390 | 1.1 inches |
| 0.4 × | 162.0 | 5.3 | 2.6 | 8.83 | -0.04% | ||||
| 0.5 × | 125.8 | 6.2 | 2.0 | 8.39 | -0.04% | ||||
| 3Z4S-LE VS-TEV05075 | 0.5 × | 173.2 | 5.0 | 1.6 | 6.71 | 0.06% | 350 | ||
| 0.75 × | 133.9 | 6.8 | 1.0 | 6.10 | 0.04% | ||||
| 3Z4S-LE VS-TEV07510 | 0.75 × | 133.9 | 6.8 | 1.0 | 6.10 | 0.04% | 370 | ||
| 1.0 × | 114.0 | 8.5 | 0.7 | 5.69 | 0.02% |
*1. The working distance is the distance from the end of the lens to the workpiece.
*2. The depth of field is calculated using a permissible circle of confusion diameter of 0.04 mm.
*3. The resolution is calculated using a wavelength of 550 nm.
| Camera | Size of image element (inch) |
Imaging area H × V (mm) |
Field of view H × V (mm) | |||
|---|---|---|---|---|---|---|
| 0.3 × (VS-TEV0305) |
0.5 × (VS-TEV0305/ VS-TEV05075) |
0.75 × (VS-TEV05075/ VS-TEV-07510) |
1.0 × (VS-TEV07510) |
|||
| FH-S[]02 | 2/3" equivalent | 11.3 × 6.0 | 37.5 × 19.9 | 22.5 × 12.0 | 15.0 × 8.0 | 11.3 × 6.0 |
| FH-S[]04 | 1" equivalent | 11.3 × 11.3 | 37.5 × 37.5 | 22.5 × 22.5 | 15.0 × 15.0 | 11.3 × 11.3 |
| FH-S[]X12 | 1.1" equivalent | 14.1 × 10.4 | 47.1 × 34.5 | 28.2 × 20.7 | 18.8 × 13.8 | 14.1 × 10.4 |
| FZ-S[]21R | 1" equivalent | 13.3 × 8.9 | 44.4 × 29.6 | 26.6 × 17.7 | 17.7 × 11.8 | 13.3 × 8.9 |
Note: The field of view is a calculated value and not a guaranteed value.
| Mounting | C mount |
|---|---|
| Ambient temperature | Operating: -5 to 50°C, Storage: -10 to 60°C (with no icing or condensation) |
| Ambient humidity | Operating: 0% to 80%, Storage: 0% to 90% (with no condensation) |
（單位：mm）

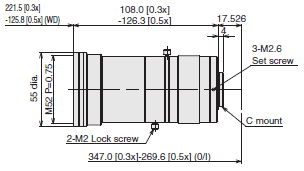

3Z4S-LE VS-TEV0305
3Z4S-LE VS-TEV05075

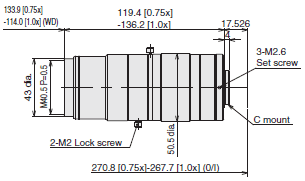

3Z4S-LE VS-TEV07510
