3Z4S-LE VS-TCH Series

產品特色

High-resolution telecentric lens for megapixel camera

商品洽詢

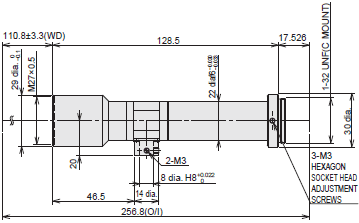

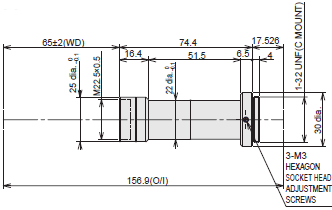

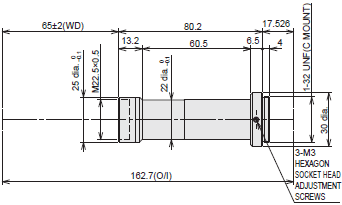

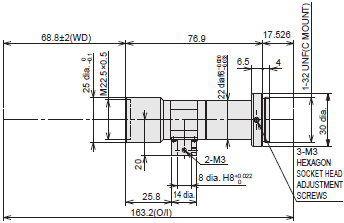

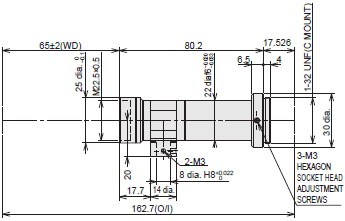

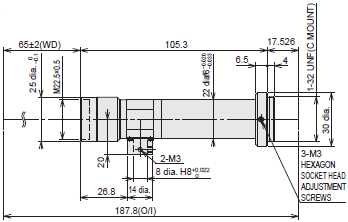

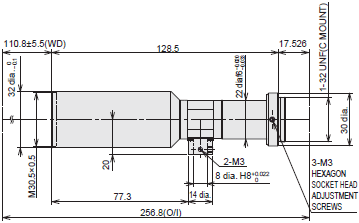

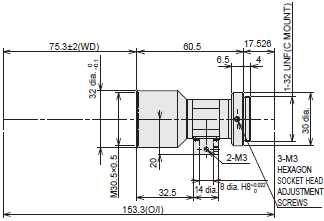

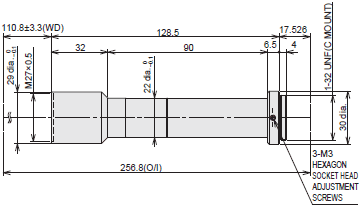

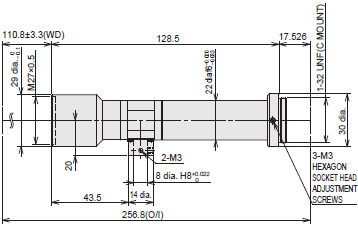

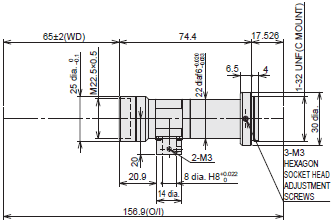

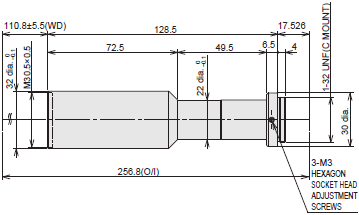

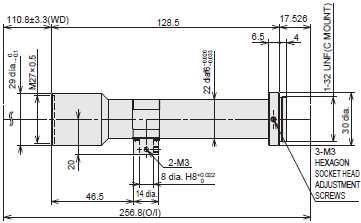

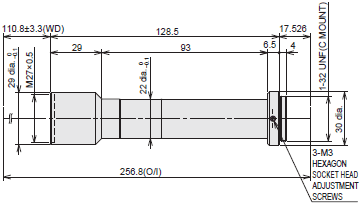

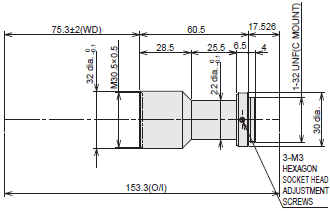

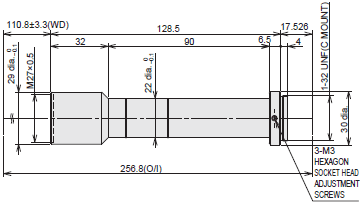

- 產品描述 - 種類額定/性能外觀尺寸型錄 CAD

High-resolution telecentric lens for megapixel camera.

Broad product selection.

Available in two different working distances, 65 or 110 mm, to fit installation spaces.
Comes in two shapes: straight and coaxial for coaxial lights.
Five optical magnifications, 0.5x, 1.0x, 1.5x, 2.0x, and 4.0x, are available to cover a wide range of applications.

Low-distortion design.

High quality images can be obtained from any part of the area.
Ideal for high-precision alignment.

Recom- mended camera	Model	Optical magni- fica- tion (±5%)	WD *1 (mm)	Ef- fec- tive FNO	Depth of field *2 (mm)	Reso- lution *3 (μm)	TV dis- tor- tion	Shape	Weight (g)	Maxi- mum com- patible CCD
FZ-S[] FZ-SH[] FH-S[] FH-S[]X FZ-S[]2M FZ-S[]5M3 FH-S[]05R FH-S[]X05 FHV7H-[]	3Z4S-LE VS-TCH05-65-O	0.5x	75.3	9.42	3	12.43	0.02%	Straight	70	2/3 inch
	3Z4S-LE VS-TCH05-65CO-O		75.3	9.42	3	12.43	0.02%	Coaxial	80
	3Z4S-LE VS-TCH05-110-O		110.8	9.49	3.04	12.9	0.02%	Straight	100
	3Z4S-LE VS-TCH05-110CO-O		110.8	9.49	3.04	12.9	0.02%	Coaxial	110

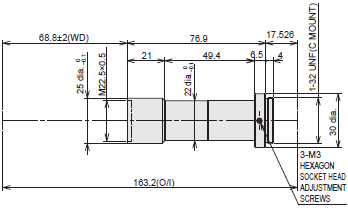

	3Z4S-LE VS-TCH1-65-O	1.0x	68.8	9.94	0.8	6.71	0.01%	Straight	70
	3Z4S-LE VS-TCH1-65CO-O		68.8	9.94	0.8	6.71	0.01%	Coaxial	80

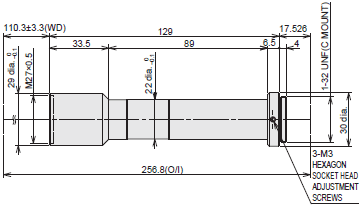

	3Z4S-LE VS-TCH1-110-O		110.3	10.49	0.84	6.99	0.02%	Straight	100
	3Z4S-LE VS-TCH1-110CO-O		110.3	10.49	0.84	6.99	0.02%	Coaxial	110

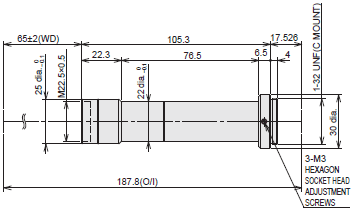

	3Z4S-LE VS-TCH1.5-65-O	1.5x	65	11.8	0.4	5.24	0.01%	Straight	70
	3Z4S-LE VS-TCH1.5-65CO-O		65	11.8	0.4	5.24	0.01%	Coaxial	80
	3Z4S-LE VS-TCH1.5-110-O		110.8	11.97	0.43	5.33	0.02%	Straight	90
	3Z4S-LE VS-TCH1.5-110CO-O		110.8	11.97	0.43	5.33	0.02%	Coaxial	105
	3Z4S-LE VS-TCH2-65-O	2.0x	65	13.6	0.3	4.53	0.03%	Straight	70
	3Z4S-LE VS-TCH2-65CO-O		65	13.6	0.3	4.53	0.03%	Coaxial	80
	3Z4S-LE VS-TCH2-110-O		110.8	13.5	0.27	4.53	0.03%	Straight	95
	3Z4S-LE VS-TCH2-110CO-O		110.8	13.5	0.27	4.53	0.03%	Coaxial	110
	3Z4S-LE VS-TCH4-65-O	4.0x	65	17.91	0.09	3	0.02%	Straight	90
	3Z4S-LE VS-TCH4-65CO-O		65	17.91	0.09	3	0.02%	Coaxial	100
	3Z4S-LE VS-TCH4-110-O		110.8	22.2	0.11	3.73	0.03%	Straight	100
	3Z4S-LE VS-TCH4-110CO-O		110.8	22.2	0.11	3.73	0.03%	Coaxial	110

*1 The working distance is the distance from the end of the lens to the workpiece.
*2 The depth of field is calculated using a permissible circle of confusion diameter of 0.04 mm.
*3 The resolution is calculated using a wavelength of 550 nm.
Note: 1. Fixing the lens or other reinforcement may be required depending on the installation angle or operating
environment (vibration/shock).
When fixing the lens, insulate the lens from the fixture.
2. The above specifications are values calculated from the optical design and can vary depending on installation
conditions.

Camera and Field of View Table

Camera	Size of image element (inch)	Imaging area H × V (mm)	Field of view H × V (mm)
Camera	Size of image element (inch)	Imaging area H × V (mm)	0.5 × (VS-TCH05)	1.0 × (VS-TCH1)	1.5 × (VS-TCH1.5)	2.0 × (VS-TCH2)	4.0 × (VS-TCH4)
FH-S[]/FZ-S[]/ FZ-SH[]	1/3" equivalent	4.8 × 3.6	9.6 × 7.2	4.8 × 3.6	3.2 × 2.4	2.4 × 1.8	1.2 × 0.9
FH-S[]X	1/2.9" equivalent	5.0 × 3.8	10.0 × 7.6	5.0 × 3.8	3.3 × 2.5	2.5 × 1.9	1.3 × 1.0
FH-S[]05R	1/2.5" equivalent	5.7 × 4.3	11.4 × 8.6	5.7 × 4.3	3.8 × 2.9	2.9 × 2.2	1.4 × 1.1
FZ-S[]2M	1/1.8" equivalent	7.0 × 5.3	14.0 × 10.6	7.0 × 5.3	4.7 × 3.5	3.5 × 2.7	1.8 × 1.3
FH-S[]X05/ FZ-S[]5M3	2/3" equivalent	8.4 × 7.1	16.8 × 14.2	8.4 × 7.1	5.6 × 4.7	4.2 × 3.6	2.1 × 1.8
FHV7H-[]004-C	1/2.9" equivalent	5.0 × 3.8	10.0 × 7.6	5.0 × 3.8	3.3 × 2.5	2.5 × 1.9	1.3 × 1.0
FHV7H-[]016-C	1/2.9" equivalent	5.0 × 3.8	10.0 × 7.6	5.0 × 3.8	3.3 × 2.5	2.5 × 1.9	1.3 × 1.0
FHV7H-[]032-C	1/1.8" equivalent	7.1 × 5.3	14.2 × 10.6	7.1 × 5.3	4.7 × 3.5	3.6 × 2.7	1.8 × 1.3
FHV7H-[]050-C	2/3" equivalent	8.5 × 7.1	17.0 × 14.2	8.5 × 7.1	5.7 × 4.7	4.3 × 3.6	2.1 × 1.8
FHV7H-[]063R-C	1/1.8" equivalent	7.4 × 5.0	14.8 × 10.0	7.4 × 5.0	4.9 × 3.3	3.7 × 2.5	1.9 × 1.3
FHV7H-[]120R-C	1/1.7" equivalent	7.4 × 5.6	14.8 × 11.2	7.4 × 5.6	4.9 × 3.3	3.7 × 2.8	1.9 × 1.4

Note: The field of view is a calculated value and not a guaranteed value.

Ambient temperature	Operating: 0 to 50°C, Storage: -10 to 60°C (with no icing or condensation)
Ambient humidity	Operating: 35% to 80%, Storage: 35% to 90% (with no condensation)
