3Z4S-LE VS-L / M42-10 Series

產品特色

Wide variety of lenses with focal lengths ranging from 18 to 100 mm.

商品洽詢

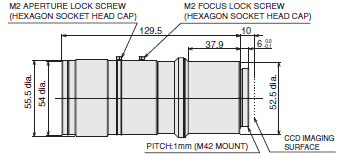

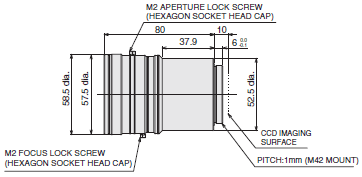

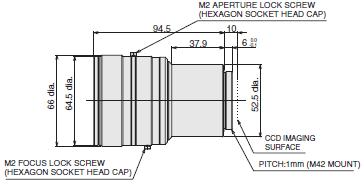

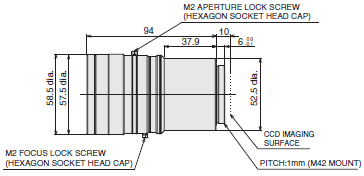

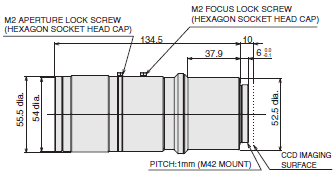

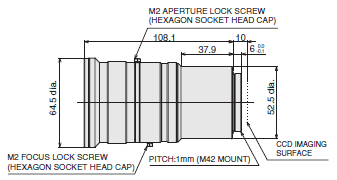

- 產品描述 - 種類額定/性能外觀尺寸型錄 CAD

• Wide variety of lenses with focal lengths ranging from 18 to 100 mm.

• Hexagon socket head cap screws for focus and aperture lock screws can be tightened more than finger tight. This ensures vibration resistance even when large diameter lenses are used.

Recom- mended camera	Model	Focal dis- tance (mm)	Aper- ture (F No)	Optical magni- fication	Closest dis- tance (mm)	Filter size	Weight (g)	Total length (mm)	Maxi- mum com- patible CCD
FH-S[]12	3Z4S-LE VS-L1828/M42-10	18	2.8 to 16	0.025x to 0.12x	137.9	M55.0 P0.75	330	94	1.8 inches
	3Z4S-LE VS-L2526/M42-10	25	2.6 to 16	0.025x to 0.12x	198.1	M55.0 P0.75	240	80	1.8 inches
	3Z4S-LE VS-L3528/M42-10	35	2.8 to 16	0.05x to 0.3x	112.8	M62.0 P0.75	345	108	1.8 inches
	3Z4S-LE VS-L5028/M42-10	50	2.8 to 16	0.05x to 0.3x	181.4	M62.0 P0.75	285	94.5	1.8 inches
	3Z4S-LE VS-L8540/M42-10	85	4.0 to 16	0.1x to 0.35x	285.0	M52.0 P0.75	340	129.5	1.8 inches
	3Z4S-LE VS-L10028/M42-10	100	2.8 to 16	0.05x to 0.3x	409.0	M52.0 P0.75	350	134.5	1.8 inches

Note: Vibrations and Shocks Resistant Lenses for M42-mount cameras are also available. Ask your OMRON
representative for details.

Lens Option

Extension Tubes

Lenses	Model	Contents
For M42-mount Cameras	3Z4S-LE VS-EXR/M42	Set of 5 tubes * (20 mm, 10 mm, 8 mm, 2 mm, and 1 mm) Maximum outer diameter: 47.5 mm dia.

* Do not use the 0.5-mm, 1.0-mm, and 2.0-mm Extension Tubes attached to each other. Since these Extension Tubes
are placed over the threaded section of the Lens or other Extension Tube, the connection may loosen when more than
one 0.5-mm, 1.0-mm or 2.0-mm Extension Tube are used together.
Reinforcement is required to protect against vibration when Extension Tubes exceeding 30 mm are used. When using
the Extension Tube, check it on the actual device before using it.

Mounting	M42 mount
Ambient temperature	Operating: 0 to 50°C, Storage: -10 to 60°C (with no icing or condensation)
Ambient humidity	Operating: 35% to 80%, Storage: 35% to 90% (with no condensation)
