FLV

FLV

產品特色
照明、照明控制器、鏡頭，照明系列豐富的200多種產品
商品洽詢
- 產品描述 - 種類 額定/性能 外觀尺寸 型錄 操作手冊 CAD

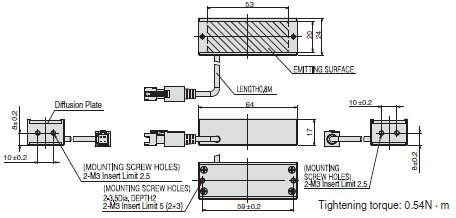

條型照明 FLV-BR系列 產品特徵

• 最適合用於照射寬廣的方形面
• 色彩豐富且尺寸多樣

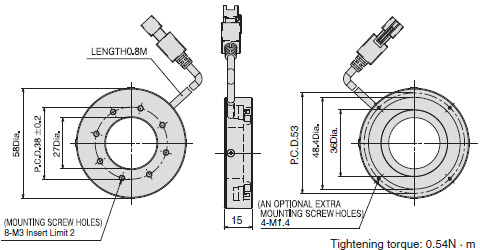

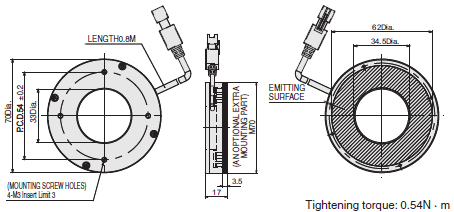

直接環型照明 FLV-DR系列 /-DL系列 產品特徵

• 以高密度LED陣列實現高亮度
• 設計精巧，節省安裝空間
• 透過選購品的擴散板，均勻投射光線

模擬同軸反射照明 FLV-CL系列 產品特徵

• 具最佳散熱構造，壽命長且穩定性高
• 亮度均勻，可照出清晰的影像。

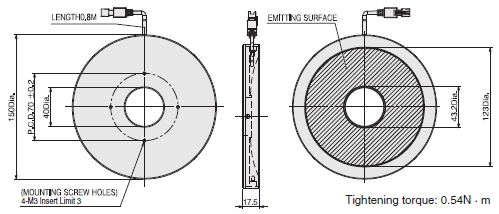

無陰影照明（環型） FLV-FR系列 產品特徵

• 利用特殊擴散板，可實現比一般的環型照明更加均勻的照明。

無陰影照明（低角度環型） FLV-FP系列 產品特徵

• 環型無陰影照明
• 照射均勻性高，可照出因設置距離而異的影像，比起一般的環型照明更能因應廣泛的用途。

無陰影照明（半球型） FLV-FS系列 產品特徵

  • • 藉由獨家設計的擴散板，運用反射與擴散創造出高度均勻的照射。
    • 排除物體表面細微的凹凸所造成的影響，讓梯度變化下的特徵無所遁形。
    • 對於小型工件而言尺寸精簡，且同樣可發揮半球型照明的效果。

無陰影照明（方型） FLV-FQ系列 產品特徵

• 方型無陰影照明。
• 照射均勻性高，可照出因設置距離而異的影像，比起一般的環型照明更能因應廣泛的用途

點照明 FLV-EP50系列 產品特徵

• 光線方向性優異，近乎平行光，且能夠長距離照射。

高功率點照明 FLV-EP08系列 產品特徵

• 藉由高功率LED，兼具設計精巧與高發光強度
• 最適合與同軸透鏡搭配使用
• 高效率散熱構造延長使用壽命

直下式照明 FLV-DB系列 產品特徵

• 使用高密度LED陣列交織成高度均勻的背光。清晰勾勒出對象物的外形特徵。

側光式照明 FLV-FB系列 產品特徵

• 提供發光面徑35-164mm等5種款式
• 達成8mm業界最薄（FLV-FB7070型）

側光式同軸照明 FLV-FX系列 產品特徵

• 以擴散發光達到高均勻性
• 兼具無陰影照明與同軸照明的雙重效果
• 質輕且精巧，便於狹小空間安裝

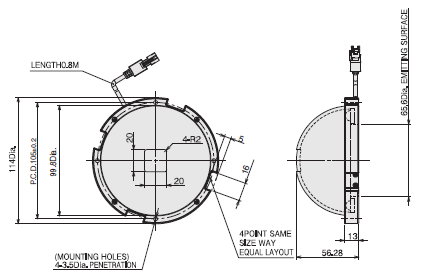

半球型照明 FLV-DD系列 產品特徵

• 以高反射率擴散板圓頂反射來自環狀光源的光，實現均勻的照明

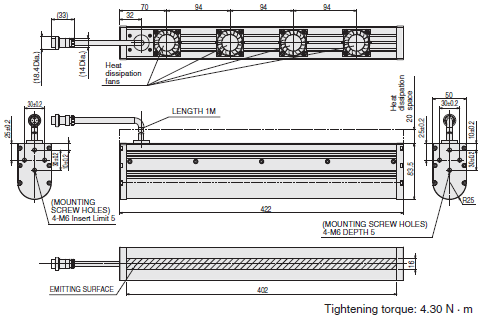

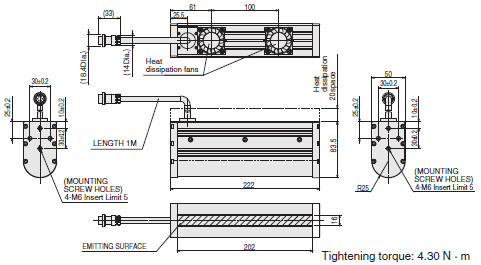

線照明 FLV-LN系列 產品特徵

• 超高亮度
• 利用聚光鏡實現高效率的線性光源

FLV系列用攝影機安裝型照明控制器 FLV-TCC系列 產品特徵

• 尺寸小、省空間。不佔用控制盤的空間。
• 長距離配線亦無損於照明亮度。
• 無須從影像感測器控制器裝接複雜的配線。
• 可在影像感測器上進行亮度及調光設定

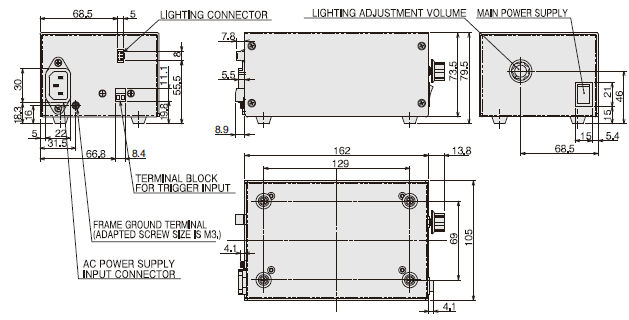

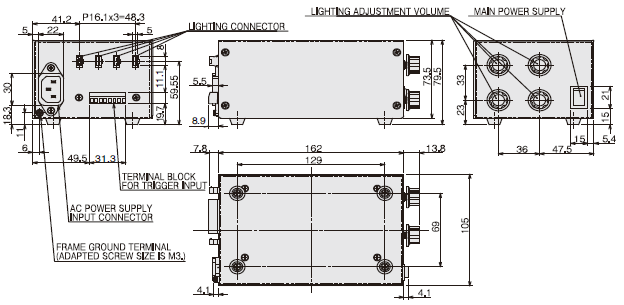

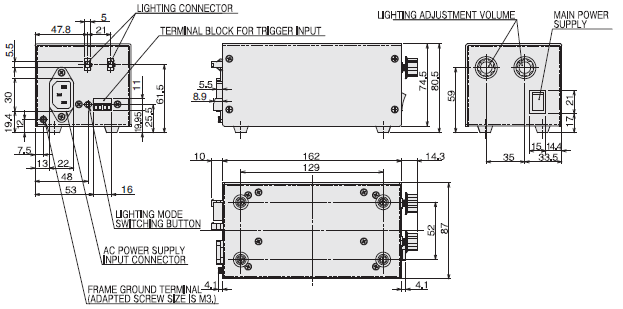

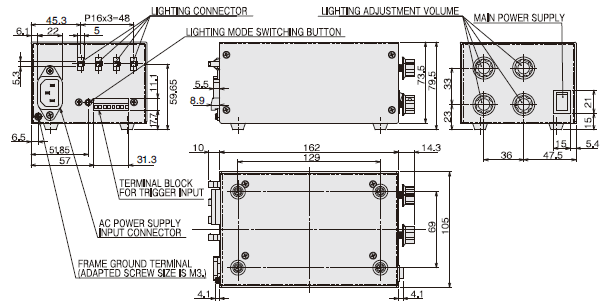

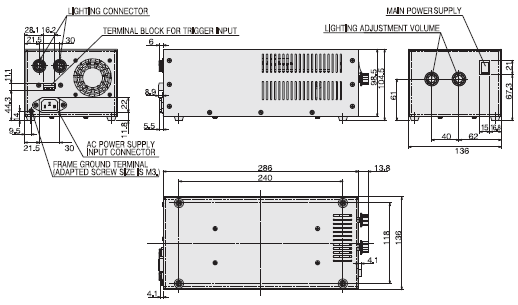

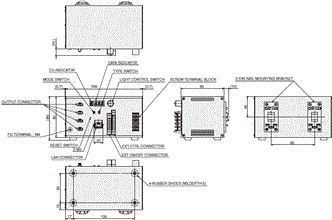

FLV系列用類比照明控制器 FLV-ATC系列 產品特徵

• 攝影機周邊無安裝空間時的最佳選擇
• 即使與影像感測器獨立使用，亦可直接輸入照明發光觸發

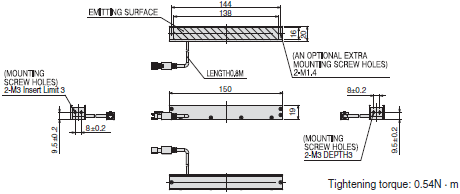

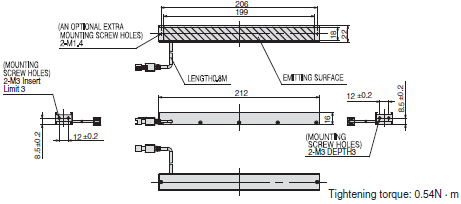

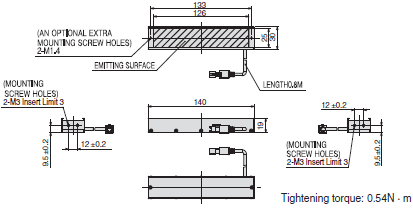

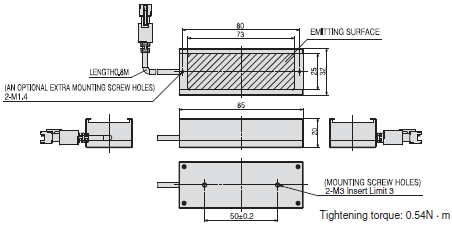

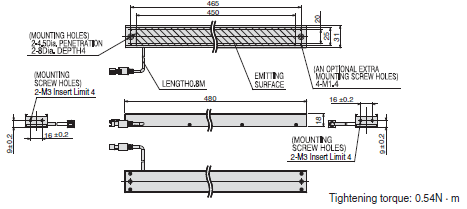

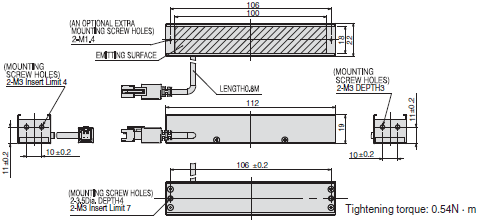

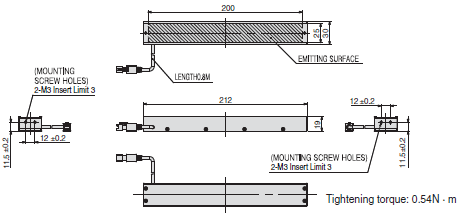

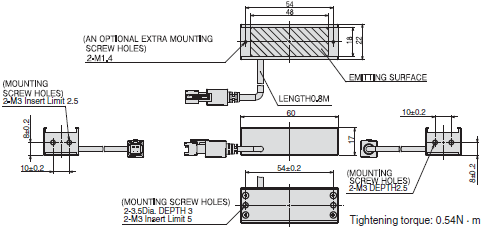

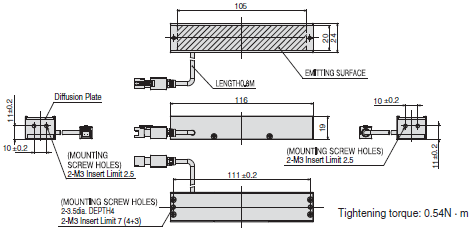

Bar Light
FLV-BR Series

Model Color Power
consumption
(W)		 Controller * Weight
(g)		 Options
FLV-TCC[] FLV-ATC[] 3Z4S-LT
IDGB[]		 Diffusion
Plate		 Polarization
Plate
FLV-BR6022W WHITE 1.4 ○ ○ ○ 60 ○ ○
FLV-BR6022R RED 1.3 ○ ○ ○
FLV-BR6022B BLUE 1.4 ○ ○ ○
FLV-BR6022IR IR 0.9 ○ ○ ○
FLV-BR6424UV UV 1.8 ○ ○ ○ 70 ○ ×
FLV-BR8532W WHITE 3.5 ○ ○ ○ 130 ○ ○
FLV-BR8532R RED 3.1 ○ ○ ○
FLV-BR8532B BLUE 3.5 ○ ○ ○
FLV-BR11222W WHITE 4.2 ○ ○ ○ 100 ○ ○
FLV-BR11222R RED 2.6 ○ ○ ○
FLV-BR11222B BLUE 4.2 ○ ○ ○
FLV-BR11222IR IR 1.8 ○ ○ ○
FLV-BR11624UV UV 3.6 ○ ○ ○ 120 ○ -
FLV-BR14030W WHITE 6.1 ○ ○ ○ 140 ○ ○
FLV-BR14030R RED 4.8 ○ ○ ○
FLV-BR14030B BLUE 6.1 ○ ○ ○
FLV-BR15020W WHITE 5.5 ○ ○ ○ 120 ○ ○
FLV-BR15020R RED 3.1 ○ ○ ○
FLV-BR15020B BLUE 5.5 ○ ○ ○

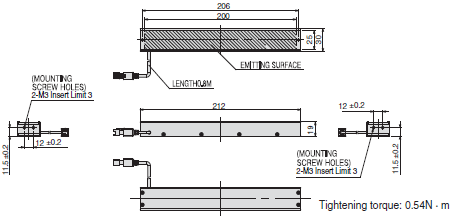

FLV-BR21222W WHITE 8.7 ○ ○ ○ 140 ○ ○
FLV-BR21222R RED 5.0 ○ ○ ○
FLV-BR21222B BLUE 8.7 ○ ○ ○
FLV-BR21230W WHITE 8.8 ○ ○ ○ 220 ○ ○
FLV-BR21230R RED 7.0 ○ ○ ○
FLV-BR21230B BLUE 8.8 ○ ○ ○
FLV-BR21230IR IR 6.1 ○ ○ ○
FLV-BR21230UV UV 7.8 ○ ○ ○ 230 ○ ×
FLV-BR38037W WHITE 15.9 × ○ ○ 430 ○ ○
FLV-BR38037R RED 11.3 ○ ○ ○
FLV-BR38037B BLUE 15.9 × ○ ○
FLV-BR48031W WHITE 21.9 × ○ ○ 460 ○ ○
FLV-BR48031R RED 18.0 × ○ ○
FLV-BR48031B BLUE 21.9 × ○ ○

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Applicable ×: Not applicable

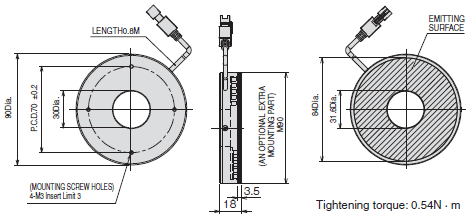

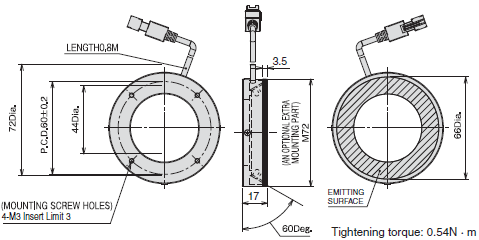

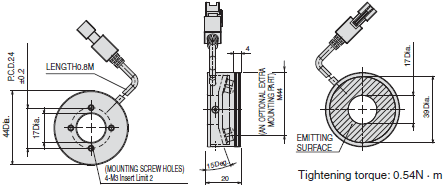

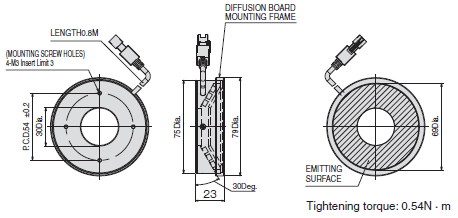

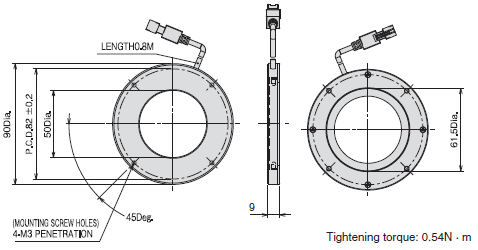

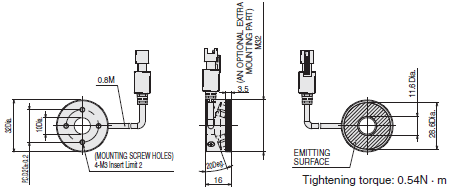

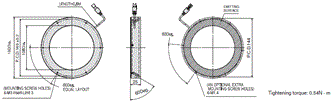

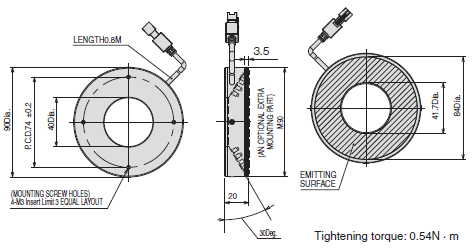

Direct Ring Light
FLV-DR Series

Model Color Power
consumption
(W)		 Controller * Weight
(g)		 Options
FLV-TCC[] FLV-ATC[] 3Z4S-LT
IDGB[]		 Diffusion
Plate		 Polarization
Plate
FLV-DR3220W WHITE 1.4 ○ ○ ○ 60 ○ ○
FLV-DR3220R RED 1.3 ○ ○ ○
FLV-DR3220B BLUE 1.4 ○ ○ ○
FLV-DR4415W WHITE 2.7 ○ ○ ○ 70 ○ ○
FLV-DR4415R RED 1.7 ○ ○ ○
FLV-DR4415B BLUE 2.7 ○ ○ ○
FLV-DR5030W WHITE 3.1 ○ ○ ○ 60 ○ ○
FLV-DR5030R RED 1.8 ○ ○ ○
FLV-DR5030B BLUE 3.1 ○ ○ ○
FLV-DR5030IR IR 1.3 ○ ○ ○
FLV-DR6030UV UV 3.2 ○ ○ ○ 90 ○ ×
FLV-DR6615W WHITE 5.0 ○ ○ ○ 120 ○ ○
FLV-DR6615R RED 3.9 ○ ○ ○
FLV-DR6615B BLUE 5.0 ○ ○ ○
FLV-DR7000W WHITE 5.0 ○ ○ ○ 110 ○ ○
FLV-DR7000R RED 3.7 ○ ○ ○
FLV-DR7000B BLUE 5.0 ○ ○ ○
FLV-DR7030W WHITE 5.0 ○ ○ ○ 120 ○ ○
FLV-DR7030R RED 3.7 ○ ○ ○
FLV-DR7030B BLUE 5.0 ○ ○ ○
FLV-DR7030IR IR 2.6 ○ ○ ○
FLV-DR7530UV UV 5.4 ○ ○ ○ 150 ○ ×
FLV-DR9000W WHITE 8.8 ○ ○ ○ 230 ○ ○
FLV-DR9000R RED 7.0 ○ ○ ○
FLV-DR9000B BLUE 8.8 ○ ○ ○
FLV-DR9030W WHITE 8.1 ○ ○ ○ 200 ○ ○
FLV-DR9030R RED 6.6 ○ ○ ○
FLV-DR9030B BLUE 8.1 ○ ○ ○
FLV-DR9030IR IR 4.3 ○ ○ ○
FLV-DR9030UV UV 6.8 ○ ○ ○ 220 ○ ×
FLV-DR9215W WHITE 7.4 ○ ○ ○ 200 ○ ○
FLV-DR9215R RED 5.4 ○ ○ ○
FLV-DR9215B BLUE 7.4 ○ ○ ○
FLV-DR12030W WHITE 11.9 ○ ○ ○ 360 ○ ○
FLV-DR12030R RED 9.8 ○ ○ ○
FLV-DR12030B BLUE 11.9 ○ ○ ○

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Applicable ×: Not applicable

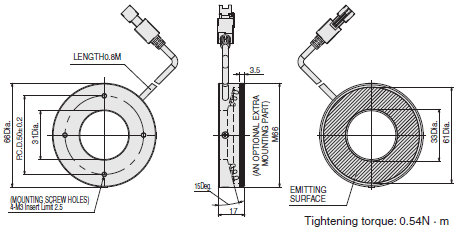

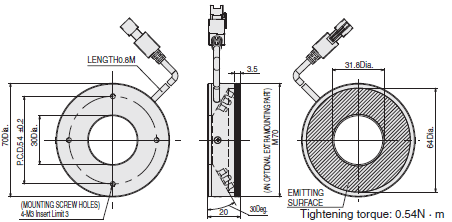

Low Angle Ring Light
FLV-DL Series

Model Color Power
consumption
(W)		 Controller * Weight
(g)		 Options
FLV-TCC[] FLV-ATC[] 3Z4S-LT
IDGB[]		 Diffusion
Plate		 Polarization
Plate
FLV-DL5890W WHITE 1.9 ○ ○ ○ 90 ○ ×
FLV-DL5890R RED 1.3 ○ ○ ○
FLV-DL5890B BLUE 1.9 ○ ○ ○
FLV-DL7260W WHITE 5.7 ○ ○ ○ 120 ○ ○
FLV-DL7260R RED 3.9 ○ ○ ○
FLV-DL7260B BLUE 5.7 ○ ○ ○
FLV-DL9090W WHITE 2.8 ○ ○ ○ 100 × ×
FLV-DL9090R RED 1.8 ○ ○ ○
FLV-DL9090B BLUE 2.8 ○ ○ ○
FLV-DL12060W WHITE 12.7 ○ ○ ○ 310 ○ ○
FLV-DL12060R RED 10.5 ○ ○ ○
FLV-DL12060B BLUE 12.7 ○ ○ ○

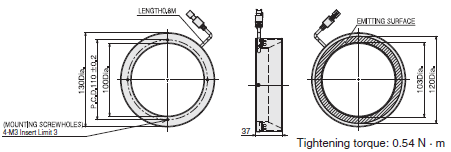

FLV-DL15060W WHITE 13.6 ○ ○ ○ 260 ○ ○
FLV-DL15060R RED 11.2 ○ ○ ○
FLV-DL15060B BLUE 13.6 ○ ○ ○

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Applicable ×: Not applicable

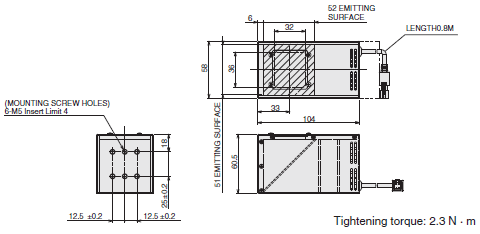

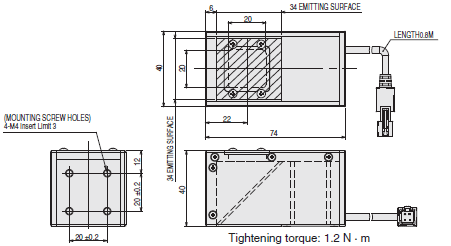

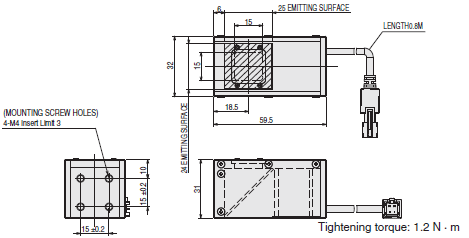

Coaxial Light
FLV-CL Series

Model Color Power
consumption (W)		 Controller * Weight (g)
FLV-TCC[] FLV-ATC[] 3Z4S-LT IDGB[]
FLV-CL30W WHITE 2.4 ○ ○ ○ 110
FLV-CL30R RED 1.4 ○ ○ ○
FLV-CL30B BLUE 2.4 ○ ○ ○
FLV-CL40W WHITE 3.9 ○ ○ ○ 170
FLV-CL40R RED 2.3 ○ ○ ○
FLV-CL40B BLUE 3.9 ○ ○ ○
FLV-CL60W WHITE 10.4 ○ ○ ○ 380
FLV-CL60R RED 5.7 ○ ○ ○
FLV-CL60B BLUE 10.4 ○ ○ ○
FLV-CL60IR IR 3.9 ○ ○ ○
FLV-CL60UV UV 3.0 ○ ○ ○
FLV-CL80W WHITE 10.8 ○ ○ ○ 580
FLV-CL80R RED 7.2 ○ ○ ○
FLV-CL80B BLUE 10.8 ○ ○ ○
FLV-CL100W WHITE 22.7 × ○ ○ 820
FLV-CL100R RED 15.2 × ○ ○
FLV-CL100B BLUE 22.7 × ○ ○

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Connectable ×: Not connectable

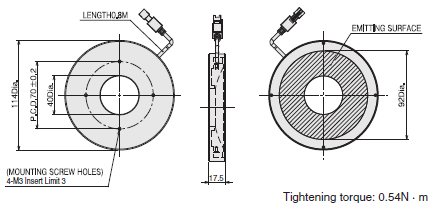

Shadowless Light
FLV-FR Series

Model Color Power
consumption (W)		 Controller * Weight (g)
FLV-TCC[] FLV-ATC[] 3Z4S-LT IDGB[]
FLV-FR114W WHITE 3.9 ○ ○ ○ 270
FLV-FR114R RED 3.1 ○ ○ ○
FLV-FR114B BLUE 3.9 ○ ○ ○
FLV-FR150W WHITE 6.1 ○ ○ ○ 500
FLV-FR150R RED 3.5 ○ ○ ○
FLV-FR150B BLUE 6.1 ○ ○ ○

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Connectable

Shadowless Light
FLV-FP Series

Model Light Color Power
consumption (W)		 Controller * Weight (g)
FLV-TCC[] FLV-ATC[] 3Z4S-LT IDGB[]
FLV-FP130W WHITE 8.1 ○ ○ ○ 320
FLV-FP130R RED 5.8 ○ ○ ○
FLV-FP130B BLUE 8.1 ○ ○ ○

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Connectable

Shadowless Light
FLV-FS Series

Model Color Power
consumption (W)		 Controller * Weight (g)
FLV-TCC[] FLV-ATC[] 3Z4S-LT IDGB[]
FLV-FS74W WHITE 5.2 ○ ○ ○ 140
FLV-FS74R RED 3.5 ○ ○ ○
FLV-FS74B BLUE 5.2 ○ ○ ○

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Connectable

Shadowless Light
FLV-FQ Series

Model Color Power
consumption (W)		 Controller * Weight (g)
FLV-TCC[] FLV-ATC[] 3Z4S-LT IDGB[]
FLV-FQ48W WHITE 2.0 ○ ○ ○ 100
FLV-FQ48R RED 1.2 ○ ○ ○
FLV-FQ48B BLUE 2.0 ○ ○ ○

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Connectable

Spot Light
FLV-EP50 Series

Model Color Power
consumption (W)		 Controller * Weight (g)
FLV-TCC[] FLV-ATC[] 3Z4S-LT IDGB[]

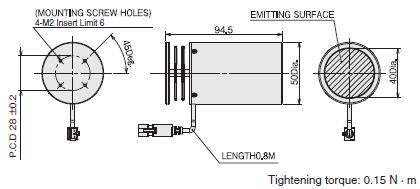

FLV-EP50W WHITE 1.6 ○ ○ × 200
FLV-EP50R RED 1.1 ○ ○ ×

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Connectable

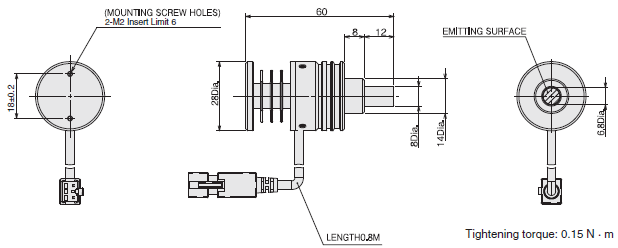

High-power Spot Light
FLV-EP08 Series

Model Color Power
consumption (W)		 Controller * Weight (g)
FLV-TCC[] FLV-ATC[] 3Z4S-LT IDGB[]
FLV-EP0803W WHITE 1.6 ○ ○ × 80
FLV-EP0803R RED 1.1 ○ ○ ×
FLV-EP0803B BLUE 1.6 ○ ○ ×

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Connectable

Direct Back Light
FLV-DB Series

Model Color Power
consumption (W)		 Controller * Weight (g)
FLV-TCC[] FLV-ATC[] 3Z4S-LT IDGB[]

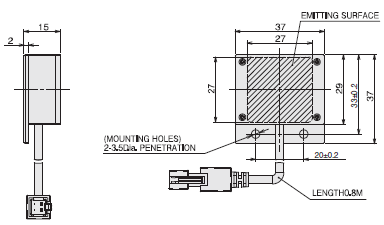

FLV-DB3729W WHITE 0.9 ○ ○ ○ 50
FLV-DB3729R RED 0.9 ○ ○ ○
FLV-DB3729B BLUE 0.9 ○ ○ ○

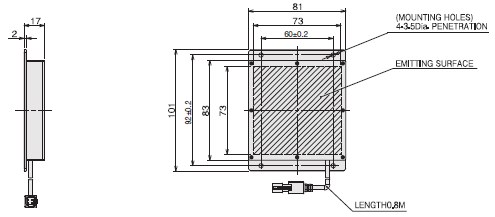

FLV-DB10181W WHITE 8.1 ○ ○ ○ 160
FLV-DB10181R RED 4.7 ○ ○ ○
FLV-DB10181B BLUE 8.1 ○ ○ ○
FLV-DB130130W WHITE 13.0 ○ ○ ○ 270
FLV-DB130130R RED 11.5 ○ ○ ○
FLV-DB130130B BLUE 13.0 ○ ○ ○
FLV-DB212152W WHITE 29.4 × ○ ○ 510
FLV-DB212152R RED 20.2 × ○ ○
FLV-DB212152B BLUE 29.4 × ○ ○

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Connectable ×: Not connectable

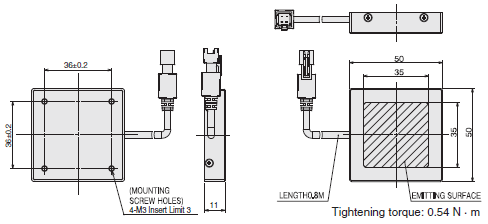

Edge Type Light
FLV-FB Series

Model Color Power
consumption (W)		 Controller * Weight (g)
FLV-TCC[] FLV-ATC[] 3Z4S-LT IDGB[]
FLV-FB5050W WHITE 1.9 ○ ○ ○ 75
FLV-FB5050R RED 0.9 ○ ○ ○
FLV-FB5050B BLUE 1.9 ○ ○ ○
FLV-FB7070W WHITE 1.9 ○ ○ ○ 85
FLV-FB7070R RED 1.4 ○ ○ ○
FLV-FB7070B BLUE 1.9 ○ ○ ○
FLV-FB9090W WHITE 3.7 ○ ○ ○ 155
FLV-FB9090R RED 1.9 ○ ○ ○
FLV-FB9090B BLUE 3.7 ○ ○ ○
FLV-FB130130W WHITE 5.5 ○ ○ ○ 230
FLV-FB130130R RED 3.7 ○ ○ ○
FLV-FB130130B BLUE 5.5 ○ ○ ○

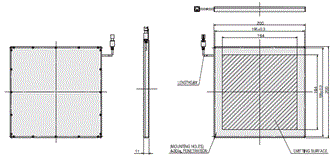

FLV-FB200200W WHITE 7.3 ○ ○ ○ 710
FLV-FB200200R RED 5.5 ○ ○ ○
FLV-FB200200B BLUE 7.3 ○ ○ ○

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Connectable

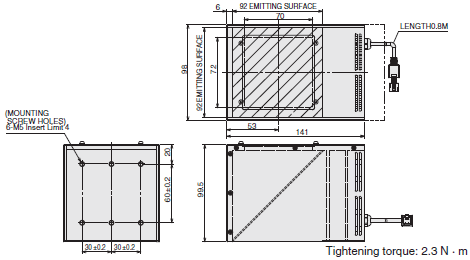

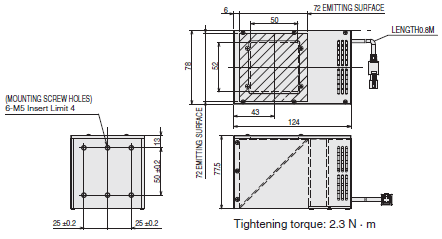

Edge Type Coaxial Light
FLV-FX Series

Model Color Power
consumption (W)		 Controller * Weight (g)
FLV-TCC[] FLV-ATC[] 3Z4S-LT IDGB[]
FLV-FX100W WHITE 3.7 ○ ○ ○ 180
FLV-FX100R RED 1.9 ○ ○ ○
FLV-FX100B BLUE 3.7 ○ ○ ○
FLV-FX143W WHITE 5.5 ○ ○ ○ 240
FLV-FX143R RED 3.7 ○ ○ ○
FLV-FX143B BLUE 5.5 ○ ○ ○

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Connectable

Dome Light
FLV-DD Series

Model Color Power
consumption (W)		 Controller * Weight (g)
FLV-TCC[] FLV-ATC[] 3Z4S-LT IDGB[]
FLV-DD70W WHITE 2.3 ○ ○ ○ 130
FLV-DD70R RED 1.4 ○ ○ ○
FLV-DD70B BLUE 2.3 ○ ○ ○
FLV-DD100W WHITE 17.9 × ○ ○ 210
FLV-DD100R RED 11.9 ○ ○ ○
FLV-DD100B BLUE 17.9 × ○ ○
FLV-DD150W WHITE 17.9 × ○ ○ 490
FLV-DD150R RED 11.9 ○ ○ ○
FLV-DD150B BLUE 17.9 × ○ ○

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Connectable ×: Not connectable

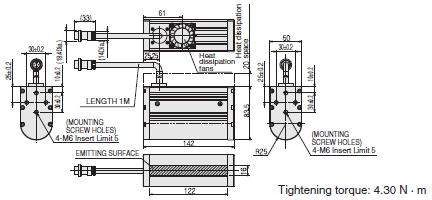

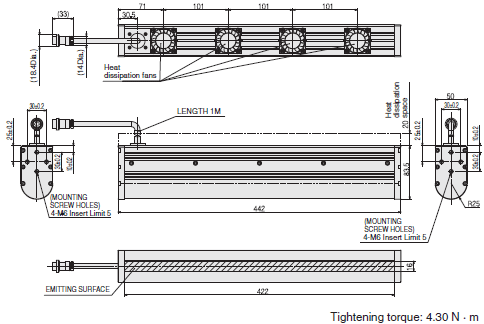

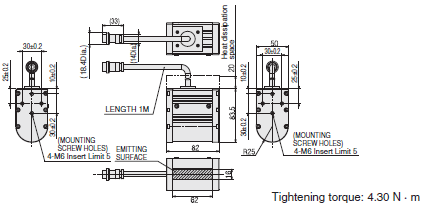

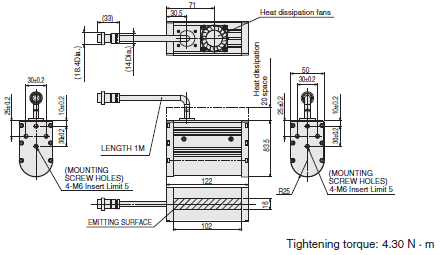

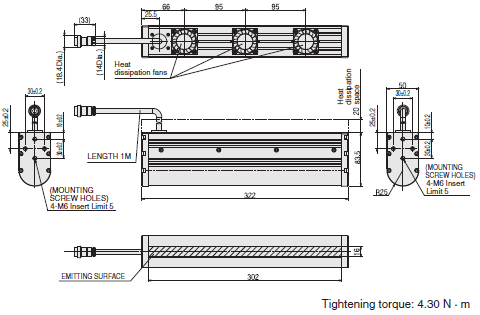

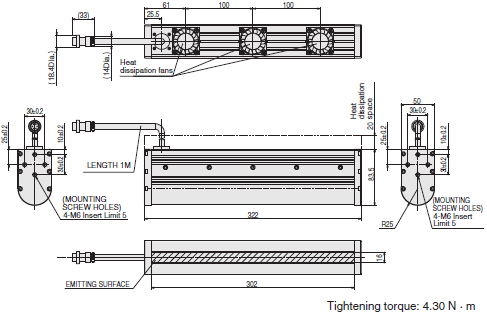

Line Light
FLV-LN Series

Model Color Power
consumption (W)		 Controller * Weight (g)
FLV-TCC[] FLV-ATC[] 3Z4S-LT IDGB[]
FLV-LN82W WHITE 9.2 × ○ × 640
FLV-LN82B BLUE 9.2 × ○ ×
FLV-LN122R RED 10.4 × ○ × 800
FLV-LN142W WHITE 18.4 × ○ × 890
FLV-LN142B BLUE 18.4 × ○ ×
FLV-LN222R RED 20.7 × ○ × 1320
FLV-LN322W WHITE 45.9 × ○ × 1950
FLV-LN322 BLUE 45.9 × ○ ×
FLV-LN322R RED 31.1 × ○ ×
FLV-LN442W WHITE 64.3 × ○ × 2450
FLV-LN442B BLUE 64.3 × ○ ×
FLV-LN422R RED 41.4 × ○ × 2400

* For the connectable Lighting Controller models and conditions, refer to the Specifications of each Lighting Controller.
Note: Refer to Catalog for LED Characteristics.
○: Connectable ×: Not connectable

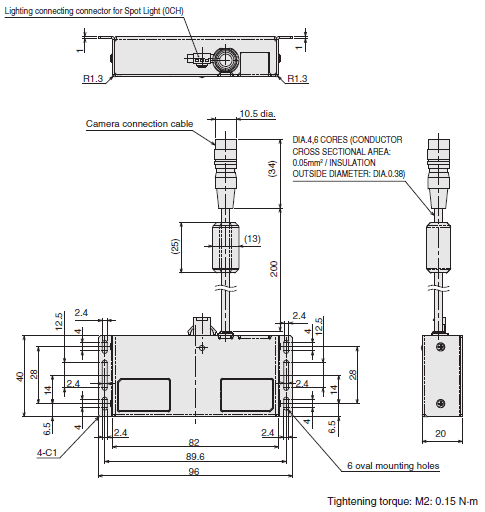

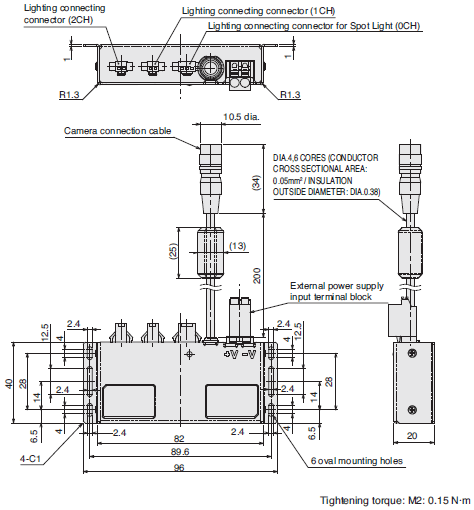

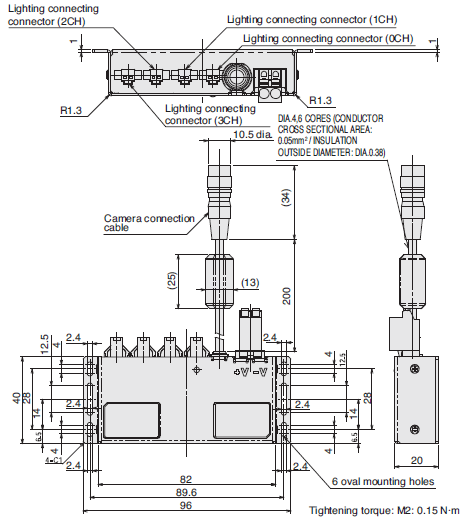

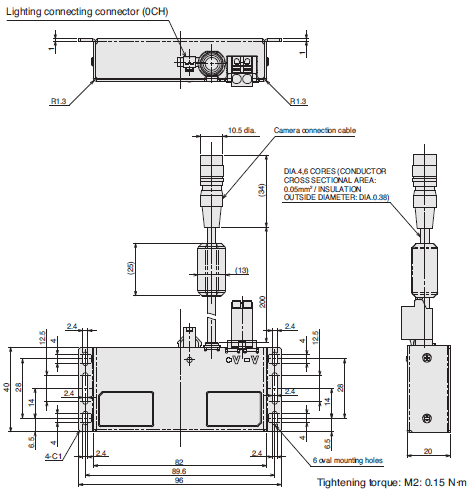

Camera-mount Lighting Controller for FLV Series
FLV-TCC Series

Model Number of
Channels		 Applicable Light *5 Power
Supply
Voltage		 Power of
Connected
Light		 Luminance
Control
Method
Standard Light
FLV Series*1		 Spot Light
FLV-EP Series		 Line Light
FLV-LN Series
FLV-TCC4 4 standard lights ○ × × 24 VDC
*2		 15 W max.
*3		 Digital
*4
FLV-TCC1 1 standard light ○ × ×
FLV-TCC3HB 1 Spot Light and
2 standard lights		 ○ ○ × ⎯ Any FLV-EP-
series Spot
Light can be
connected
FLV-TCC1EP 1 Spot Light × ○ ×

*1. Standard light means all FLV-series Lights excluding the FLV-EP-series Spot Lights and the FLV-LN-series Line
Lights.
*2. If the total power consumption of Lights is 7.5 W or less, an external power supply is not required because the power
is supplied from the Camera.
*3. Refer to the Specifications for the details of "power for connectable lighting".
*4. Intensity is controlled through the settings of the Vision System Controller.
*5. ○:Connectable ×:Not connectable

Analog Lighting Controller for FLV Series
FLV-ATC Series

Applicable light Model Number of
channels		 Power supply
voltage		 Power of
connected
light		 Luminance
control method
For standard
light *1		 FLV-ATC21024 *2 2 100 to 240 VAC,
50/60 Hz		 40 W max. Analog
FLV-ATC41024 *2 4
For spot light FLV-ATC10405 *2 1 3 W max.
FLV-ATC40405 *2 4 12 W max.
For line light FLV-ATC26024-100V
*2		 2 100 to 120 VAC,
50/60 Hz		 240 W max.
FLV-ATC26024-200V 2 200 to 240 VAC,
50/60 Hz

*1. Standard Light means all FLV-series Lights excluding the FLV-EP-series Spot Lights and the FLV-LN-series Line
Lights.
*2. For AC power cords: An A-type plug is standard. C-type and O-type plugs are also available. (Add "-C" or "-O" to the
end of the model number.)

Plug type A C O
Rated voltage 125 V 240 V 240 V
Standard PSE CEE CCC

Digital Lighting Controller for FLV Series
3Z4S-LT IDGB Series

Digital Lighting Controllers

Model Number of
channels		 Applicable light *1 Input
voltage		 Output
voltage		 Capacity
(W)
Standard Light
FLV Series *2		 Spot Light
FLV-EP
Series *2		 Line Light
FLV-LN
Series *2
3Z4S-LT IDGB-50M2-L01 2 ○ × × 24 VDC 24 VDC 46
3Z4S-LT IDGB-150M4-L01 4 ○ × × 144

*1. ○: Connectable ×: Not connectable
*2. Standard light means all FLV-series Lights excluding the FLV-EP-series Spot Lights and the FLV-LN-series Line Lights.

External ON/OFF Cables

Model Cable length Weight
3Z4S-LT IC-MIL-20-1 1 m Approx. 100 g
3Z4S-LT IC-MIL-20-2 2 m Approx. 190 g
3Z4S-LT IC-MIL-20-3 3 m Approx. 280 g
3Z4S-LT IC-MIL-20-5 5 m Approx. 450 g
3Z4S-LT IC-MIL-20-10 10 m Approx. 900 g

External Light Control Cables

Model Cable length Weight
3Z4S-LT IC-MIL-26-1 1 m Approx. 110 g
3Z4S-LT IC-MIL-26-2 2 m Approx. 220 g
3Z4S-LT IC-MIL-26-3 3 m Approx. 330 g
3Z4S-LT IC-MIL-26-5 5 m Approx. 540 g
3Z4S-LT IC-MIL-26-10 10 m Approx. 1,070 g

Options for FLV series

Cable

Series Type Model Cable Length Weight
Extension Cable for
Standard Light *1		 Standard Cable FLV-XC1 1 m Approx. 30g
FLV-XC2 2 m Approx. 50g
FLV-XC3 3 m Approx. 70g
FLV-XC5 5 m Approx. 110g
FLV-XC10 10 m Approx. 210g
Bend resistant
Cable		 FLV-XC1R 1 m Approx. 40g
FLV-XC2R 2 m Approx. 60g
FLV-XC3R 3 m Approx. 80g
FLV-XC5R 5 m Approx. 130g
FLV-XC10R 10 m Approx. 250g
Extension Cable for
Spot Light		 Standard Cable FLV-XC1EP 1 m Approx. 30g
FLV-XC2EP 2 m Approx. 50g
FLV-XC3EP 3 m Approx. 70g
FLV-XC5EP 5 m Approx. 110g
Bend resistant
Cable		 FLV-XC1EPR 1 m Approx. 40g
FLV-XC2EPR 2 m Approx. 60g
FLV-XC3EPR 3 m Approx. 80g
FLV-XC5EPR 5 m Approx. 130g
Extension Cable for
Line Light		 Standard Cable FLV-XC1LN 1 m Approx. 200g
FLV-XC2LN 2 m Approx. 270g
FLV-XC3LN 3 m Approx. 320g
FLV-XC5LN 5 m Approx. 440g
Branch Cable for
Standard Light *1		 Standard Cable FLV-XC1S2 1 m Approx. 30g
FLV-XC2S2 2 m Approx. 50g
FLV-XC3S2 3 m Approx. 80g
FLV-XC5S2 5 m Approx. 120g

*1. Standard light means all FLV-series Lights excluding the FLV-EP-series Spot Lights and the FLV-LN-series Line Lights.

Diffusion Plate

Diffusion Plate

Type Model Applicable light
Transparency rate High Middle Low
Diffusivity Low Middle High
For FLV-DR-series
Direct ring light		 FLV-DR3220DF FLV-DR3220DF50 FLV-DR3220DF30 FLV-DR3220[]
FLV-DR4415DF FLV-DR4415DF50 FLV-DR4415DF30 FLV-DR4415[]
FLV-DR5030DF FLV-DR5030DF50 FLV-DR5030DF30 FLV-DR5030[]
FLV-DR6030DF --- --- FLV-DR6030UV
FLV-DR6615DF FLV-DR6615DF50 FLV-DR6615DF30 FLV-DR6615[]
FLV-DR7000DF FLV-DR7000DF50 FLV-DR7000DF30 FLV-DR7000[]
FLV-DR7030DF FLV-DR7030DF50 FLV-DR7030DF30 FLV-DR7030[]
FLV-DR7530DF --- --- FLV-DR7530UV
FLV-DR9000DF FLV-DR9000DF50 FLV-DR9000DF30 FLV-DR9000[]
FLV-DR9030DF FLV-DR9030DF50 FLV-DR9030DF30 FLV-DR9030[]
FLV-DR9215DF FLV-DR9215DF50 FLV-DR9215DF30 FLV-DR9215[]
FLV-DR12030DF FLV-DR12030DF50 FLV-DR12030DF30 FLV-DR12030[]
For FLV-DL-series
Low angle ring light		 FLV-DL5890DF FLV-DL5890DF50 FLV-DL5890DF30 FLV-DL5890[]
FLV-DL7260DF FLV-DL7260DF50 FLV-DL7260DF30 FLV-DL7260[]
FLV-DL12060DF FLV-DL12060DF50 FLV-DL12060DF30 FLV-DL12060[]
FLV-DL15060DF FLV-DL15060DF50 FLV-DL15060DF30 FLV-DL15060[]
For FLV-BR-series
Bar light		 FLV-BR6022DF FLV-BR6022DF50 FLV-BR6022DF30 FLV-BR6022[]
FLV-BR6424DF --- --- FLV-BR6424UV
FLV-BR8532DF FLV-BR8532DF50 FLV-BR8532DF30 FLV-BR8532[]
FLV-BR11222DF FLV-BR11222DF50 FLV-BR11222DF30 FLV-BR11222[]
FLV-BR11624DF --- --- FLV-BR11624UV
FLV-BR14030DF FLV-BR14030DF50 FLV-BR14030DF30 FLV-BR14030[]
FLV-BR15020DF FLV-BR15020DF50 FLV-BR15020DF30 FLV-BR15020[]
FLV-BR21222DF FLV-BR21222DF50 FLV-BR21222DF30 FLV-BR21222[]
FLV-BR21230DF FLV-BR21230DF50 FLV-BR21230DF30 FLV-BR21230[]
FLV-BR38037DF FLV-BR38037DF50 FLV-BR38037DF30 FLV-BR38037[]
FLV-BR48031DF FLV-BR48031DF50 FLV-BR48031DF30 FLV-BR48031[]

Polarization Plate

Type Model Applicable light
For FLV-DR-series
Direct ring light		 FLV-DR3220PL FLV-DR3220[]
FLV-DR4415PL FLV-DR4415[]
FLV-DR5030PL FLV-DR5030[]
FLV-DR6615PL FLV-DR6615[]
FLV-DR7000PL FLV-DR7000[]
FLV-DR7030PL FLV-DR7030[]
FLV-DR9000PL FLV-DR9000[]
FLV-DR9030PL FLV-DR9030[]
FLV-DR9215PL FLV-DR9215[]
FLV-DR12030PL FLV-DR12030[]
For FLV-DL-series
Low angle ring light		 FLV-DL7260PL FLV-DL7260[]
FLV-DL12060PL FLV-DL12060[]
FLV-DL15060PL FLV-DL15060[]
For FLV-BR-series
Bar light		 Polarization direction:
Long side
3279_lu_19_1		 FLV-BR6022PL FLV-BR6022[]
FLV-BR8532PL FLV-BR8532[]
FLV-BR11222PL FLV-BR11222[]
FLV-BR14030PL FLV-BR14030[]
FLV-BR15020PL FLV-BR15020[]
FLV-BR21222PL FLV-BR21222[]
FLV-BR21230PL FLV-BR21230[]
FLV-BR38037PL FLV-BR38037[]
FLV-BR48031PL FLV-BR48031[]
Polarization direction:
Short side
3279_lu_19_2		 FLV-BR6022PL-V FLV-BR6022[]
FLV-BR8532PL-V FLV-BR8532[]
FLV-BR11222PL-V FLV-BR1122[]
FLV-BR14030PL-V FLV-BR14030[]
FLV-BR15020PL-V FLV-BR15020[]
FLV-BR21222PL-V FLV-BR21222[]
FLV-BR21230PL-V FLV-BR21230[]
FLV-BR38037PL-V FLV-BR38037[]
FLV-BR48031PL-V FLV-BR48031[]

Camera-mount Lighting Controller for FLV Series
FLV-TCC Series

Model FLV-TCC4 FLV-TCC1
Number of channels 4 standard lights 1 standard light
Applicable light *1 FLV series (excluding FLV-EP series and FLV-LN series)
Applicable camera *2 FH-S series, FZ-S series
Applicable vision system controller FH series, FZ5 series
Input voltage Supplied from applicable camera (12 V) or external power supply
(24 V) *3
External power supply voltage 24 VDC 10% (including ripple)
Current consumption 1.5A max.
Recommended
power supply		 S8VS-06024 (manufactured by OMRON, 24 VDC, 2.5 A, 60 W)
Power of
connected
light		 12 VDC
for
camera
supply		 Continuous lighting 4ch total 7.5 W max. 7.5 W max.
Trigger
lighting		 Simultaneous
lighting		 4ch total 7.5 W max. 7.5 W max.
Individual
lighting		 7.5 W max. for 1ch
24 VDC
for
external
supply		 Continuous lighting 4ch total 7.5 W max. 7.5 W max.
Trigger
lighting		 Simultaneous
lighting		 4ch total 15 W max. 15 W max.
Individual
lighting		 15 W max. for 1ch
Drive method Constant voltage method
Lighting method Trigger lighting, Continuous lighting
Luminance control method Duty light adjustment or voltage light adjustment
Duty light adjustment: PWM frequency of 100 kHz, light adjustment
of 255 levels
Voltage light adjustment: Light adjustment of 255 levels
(all are configured with vision system controller)
Trigger lighting Lighting in synchronization with trigger input timing from the
controller.
Trigger lighting delay time Ton: 30μs max.
Lighting duration setting Auto setting in accordance with shutter speed.
External interface Camera connection cable (directly connected with the main unit)
Insulation resistance 0.5 MΩ (100VDC)
Ambient temperature Operating: 0 to +50°C, Storage: -15 to +60°C (with no icing or
condensation)
Ambient humidity Operating and storage: 35% to 85% (with no condensation)
Degree of protection IP20 (IEC60529)
Vibration resistance (destructive) 10 to 150 Hz, (0.7mm double amplitude) 80 min each in X, Y, and
Z directions
Shock resistance (destructive) 150 m/s2 3 times each in 6 directions(up/down, left/right, forward/
backward)
Materials Case,Camera mount plate: Aluminum, Cable: FPVC
Weight Approx. 130g (including
the camera mount plate)		 Approx. 120g (including
the camera mount plate)
Accessories Instruction sheet, Lighting connection table, Camera Mount plate,
Mounting screws (M2 set screw x 4, M2 flat head screw x 4, M4 flat
head screw x 4)
Applicable standards EN61326-1 *4, KC

Model FLV-TCC3HB FLV-TCC1EP
Number of channels 1 Spot Light,
2 standard lights		 1 Spot Light
Applicable light *1 FLV series (excluding
FLV-LN series)		 FLV-EP series
Applicable camera *2 FH-S series, FZ-S series
Applicable vision system controller FH series, FZ5 series
Input voltage Supplied from applicable camera (12
V) or external power supply (24 V) *3		 Supplied from applicable
camera (12 V)
External power supply voltage 24 VDC 10% (including ripple) ⎯
Current consumption 1.5A max. 1.0A max.
Recommended
power supply		 S8VS-06024 (manufactured by
OMRON, 24 VDC, 2.5 A, 60 W)		 ⎯
Power of
connected
light		 12 VDC
for
camera
supply		 Continuous lighting 0ch connection: 1,2ch
total 5.5 W max.
0ch non-connection:
1,2ch total 7.5 W max.		 All FLV-EP series
can be connected.
Trigger
lighting		 Simultaneous
lighting		 0ch connection:
1,2ch total 5.5 W max.
0ch non-connection:
1,2ch total 7.5 W max.
Individual
lighting		 7.5 W max. for 1ch
24 VDC
for
external
supply		 Continuous lighting 0ch connection:
1,2ch total 5.5 W max.
0ch non-connection:
1,2ch total 7.5 W max.		 ⎯
Trigger
lighting		 Simultaneous
lighting		 0ch connection:
1,2ch total 14 W max.
0ch non-connection:
1,2ch total 15 W max.
Individual
lighting		 15 W max. for 1ch
Drive method 0ch Constant current method 1ch/
2ch: Constant voltage method		 Constant current method
Lighting method Trigger lighting, Continuous lighting
Luminance control method 0ch Duty light adjustment or current
light adjustment 1ch/2ch Duty light
adjustment or voltage light
adjustment
Duty light adjustment: PWM frequency
of 100 kHz, light adjustment of 255
levels current light adjustment/
Voltage light adjustment: Light
adjustment of 255 levels (all are
configured with vision system
controller)		 Duty light adjustment or
current light adjustment
Duty light adjustment:
PWM frequency of 100 kHz,
light adjustment of 255
levels current light
adjustment: Light
adjustment of 255 levels
(all are configured with
vision system controller)
Trigger lighting Lighting in synchronization with trigger input timing from the
controller.
Trigger lighting delay time Ton: 30μs max.
Lighting duration setting Auto setting in accordance with shutter speed.
External interface Camera connection cable (directly connected with the main unit)
Insulation resistance 0.5 MΩ (100VDC)
Ambient temperature Operating: 0 to +50°C, Storage: -15 to +60°C (with no icing or
condensation)
Ambient humidity Operating and storage: 35% to 85% (with no condensation)
Degree of protection IP20 (IEC60529)
Vibration resistance (destructive) 10 to 150 Hz, (0.7mm double amplitude) 80 min each in X, Y, and
Z directions
Shock resistance (destructive) 150 m/s2 3 times each in 6 directions(up/down, left/right, forward/
backward)
Materials Case,Camera mount plate: Aluminum, Cable: FPVC
Weight Approx. 130g (including
the camera mount plate)		 Approx. 120g (including
the camera mount plate)
Accessories Instruction sheet, Lighting connection table, Camera Mount plate,
Mounting screws (M2 set screw x 4, M2 flat head screw x 4, M4 flat
head screw x 4)
Applicable standards EN61326-1 *4, KC

*1. Check the lighting connection table of accessory.
*2. When mounting on the FH-S[]12, use the FH-SM12-XLC (sold separately).
*3. When supplying the power to this product from an external input power supply (24V), make sure to turn ON the power
to this product first or at the same time with the vision system controller. If you reverse this order, this product will
not recognize the 24V external input, so lighting greater than 7.5W will not be possible.
*4. Electromagnetic environment: Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)
Also, the following condition is applied to the immunity test of this product.
There are case that Lighting brightness fluctuate Max 10%.

Analog Lighting Controller for FLV Series
FLV-ATC Series

Lighting Controller for Standard Light FLV-ATC21024/-ATC41024

Model FLV-ATC21024-[] *1 FLV-ATC41024-[] *1
Number of channels 2 4
Applicable light FLV series (FLV-EP series and FLV-LN series are excluded.)
Power supply voltage *2 100 to 240 VAC, 50/60 Hz
Current consumption 1 A max.
Power of connected light 2ch total 40 W max.
30 W max. for 1ch		 4ch total 40 W max.
30 W max. for 1ch
Drive method Constant voltage method
Lighting method Trigger lighting, Continuous lighting
Luminance control method Voltage light adjustment: 14.0 to 24.0 V
Trigger lighting Lighting in synchronization with input from the trigger input terminal
Trigger lighting delay time T_on: 100 μs max.
External interface Trigger input terminal block
Dielectric strength 1500 VAC 50/60 Hz 1 min
Insulation resistance 20 MΩ (500 VDC)
Ambient temperature Operating: 0 to 50°C, Storage: -15 to 60°C (with no icing or condensation)
Ambient humidity Operating/storage: 35% to 85% (with no condensation)
Degree of protection IP20 (IEC60529)
Vibration resistance (destructive) 10 to 150 Hz, (0.2 mm double amplitude) 80 min each in X, Y, and Z directions
Shock resistance (destructive) 150 m/s2 3 times each in 6 directions (up/down, left/right, forward/backward)
Materials Case: Aluminum
Weight Approx. 800 g
Accessories Instruction sheet, AC input cable *1
Applicable standards EN61326-1 *3

*1. The suffixed symbol of the model name means the plug type of the accessory cable. A model name with no suffix
means type A.
*2. This product is the exclusive use for apparatus inclusion in the industrial machine field.
This product cannot be used for the connection to electric power equipment, such as a common residence, store,
and small establishment, because of nonconformity with to Electrical Appliance and Material Safety Law (PSE).
*3. Electromagnetic environment: Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)
Also, the following condition is applied to the immunity test of this product.
There are case that Lighting brightness fluctuate Max 10%.

Lighting Controller for Spot Light FLV-ATC10405/-ATC40405

Model FLV-ATC10405-[] *1 FLV-ATC40405-[] *1
Number of channels 1 4
Applicable light FLV-EP series
Power supply voltage *2 100 to 240 VAC, 50/60 Hz
Current consumption 0.6 A max.
Power of connected light 3 W max. 4ch total 12 W max.
3 W max. for 1ch
Drive method Constant current method
Lighting method Trigger lighting, Continuous lighting
Luminance control method Current light adjustment: 5 A max.
Trigger lighting Turning the light off in synchronization with input from the trigger input terminal
Trigger lighting delay time T_on: 1000 μs max.
External interface Trigger input terminal block
Dielectric strength 1500 VAC 50/60 Hz 1 min
Insulation resistance 20 MΩ (500 VDC)
Ambient temperature Operating: 0 to 50°C, Storage: -15 to 60°C (with no icing or condensation)
Ambient humidity Operating/storage: 35% to 85% (with no condensation)
Degree of protection IP20 (IEC60529)
Vibration resistance (destructive) 10 to 150 Hz, (0.2 mm double amplitude) 80 min each in X, Y, and Z directions
Shock resistance (destructive) 150 m/s2 3 times each in 6 directions (up/down, left/right, forward/backward)
Materials Case: Aluminum
Weight Approx. 800 g
Accessories Instruction sheet, AC input cable *1
Applicable standards EN61326-1 *3

*1. The suffixed symbol of the model name means the plug type of the accessory cable. A model name with no suffix
means type A.
*2. This product is the exclusive use for apparatus inclusion in the industrial machine field.
This product cannot be used for the connection to electric power equipment, such as a common residence, store,
and small establishment, because of nonconformity with to Electrical Appliance and Material Safety Law (PSE).
*3. Electromagnetic environment: Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)
Also, the following condition is applied to the immunity test of this product.
There are case that Lighting brightness fluctuate Max 10%.

Lighting Controller for Line Light: FLV-ATC26024-100V/-200V

Model FLV-ATC26024-100V[] *1 FLV-ATC26024-200V[] *1
Number of channels 2
Applicable light FLV-LN series
Power supply voltage *2 100 to 120 VAC, 50/60 Hz 200 to 240 VAC, 50/60 Hz
Current consumption 7 A max. 4 A max.
Power of connected light 2ch total 240 W max.
120 W max. for 1ch
Drive method Constant voltage method
Lighting method Trigger lighting, Continuous lighting
Intensity control method Current light adjustment: 5 A max.
Luminance control method Turning the light off in synchronization with input from the trigger input terminal
Trigger lighting delay time T_on: 500 μs max.
External interface Trigger input terminal block
Dielectric strength 1500 VAC 50/60 Hz 1 min
Insulation resistance 20 MΩ (500 VDC)
Ambient temperature Operating: 0 to 40°C, Storage: -15 to 60°C (with no icing or condensation)
Ambient humidity Operating/storage: 35% to 85% (with no condensation)
Degree of protection IP20 (IEC60529)
Vibration resistance (destructive) 10 to 150 Hz, (0.2 mm double amplitude) 80 min each in X, Y, and Z directions
Shock resistance (destructive) 150 m/s2 3 times each in 6 directions (up/down, left/right, forward/backward)
Materials Case: Aluminum
Weight Approx. 2.1 kg
Accessories Instruction sheet, AC input cable *1
Applicable standards EN61326-1 *3

*1. The suffixed symbol of the model name means the plug type of the accessory cable. A model name with no suffix
means type A.
*2. This product is the exclusive use for apparatus inclusion in the industrial machine field.
This product cannot be used for the connection to electric power equipment, such as a common residence, store,
and small establishment, because of nonconformity with to Electrical Appliance and Material Safety Law (PSE).
*3. Electromagnetic environment: Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)
Also, the following condition is applied to the immunity test of this product.
There are case that Lighting brightness fluctuate Max 10%.

Digital Lighting Controller for FLV Series
3Z4S-LT IDGB Series

Model 3Z4S-LT IDGB-50M2-L01 3Z4S-LT IDGB-150M4-L01
Rated capacity 46 W 144 W
Number of channels 2 4
Applicable light FLV Series (excluding FLV-EP Series and FLV-LN Series)
Power supply voltage 24 VDC±5%
Current consumption 2.08 A max. 6.25 A max.
Power of connected light *1 2 ch total 46 W max.
46 W max. for 1 ch		 4 ch total 144 W max.
70 W max. for 1 ch
3279_sp_5_1
Drive method Constant voltage method
Lighting method Continuous lighting
Luminance control method PWM light adjustment
Light adjustment 256 levels (Duty ratio of 0 to 100% at a lighting frequency of 125 kHz) *3
Delay time 0 to 9,000 μs in 1 μs increments
(Actual output will be delayed by the sum of the external ON/OFF response time
described below and the set delay time.)
External ON/OFF response *2 High mode --- OFF → ON: 40 μs or less, ON → OFF: 10 μs or less
Low mode --- OFF → ON: 10 μs or less, ON → OFF: 40 μs or less
Ambient temperature Operating: 0 to 50 °C, Storage: -20 to 65 °C, (with no icing or condensation)
Ambient humidity Operating and storage: 35% to 85% (with no condensation)
Cooling method Natural air cooling Forced air cooling
Weight Approx. 700 g Approx. 1,000 g
Overvoltage category Category I
Applicable standards EMC Directives: EN 55011 Group 1 Class A, EN 61000-6-2
Environmental regulation Conforms to RoHS Directive
Pollution degree 2

*1. When connecting lights to multiple channels, make sure that the total power consumption of the connected lights is
within the specification of the lighting controller.
*2. Measured with a rated light connected.
*3. There will be some variation in light adjustment between units when the level is set between 0 and 10 or between 250
and 255.

（單位：mm）

Bar Light
FLV-BR Series

FLV-BR6022[]

FLV 外觀尺寸 2

FLV-BR8532[]

FLV 外觀尺寸 3

FLV-BR11222[]

FLV 外觀尺寸 4

FLV-BR14030[]

FLV 外觀尺寸 5

FLV-BR15020[]

FLV 外觀尺寸 6

FLV-BR21222[]

FLV 外觀尺寸 7

FLV-BR21230[]

FLV 外觀尺寸 8

FLV-BR38037[]

FLV 外觀尺寸 9

FLV-BR48031[]

FLV 外觀尺寸 10

FLV-BR6424UV

FLV 外觀尺寸 11

FLV-BR11624UV

FLV 外觀尺寸 12

FLV-BR21230UV

FLV 外觀尺寸 13

Direct Ring Light
FLV-DR Series

FLV-DR3220[]

FLV 外觀尺寸 15

FLV-DR4415[]

FLV 外觀尺寸 16

FLV-DR5030[]

FLV 外觀尺寸 17

FLV-DR6615[]

FLV 外觀尺寸 18

FLV-DR7000[]

FLV 外觀尺寸 19

FLV-DR7030[]

FLV 外觀尺寸 20

FLV-DR9000[]

FLV 外觀尺寸 21

FLV-DR9030[]

FLV 外觀尺寸 22

FLV-DR9215[]

FLV 外觀尺寸 23

FLV-DR12030[]

FLV 外觀尺寸 24

FLV-DR6030UV

FLV 外觀尺寸 25

FLV-DR7530UV

FLV 外觀尺寸 26

FLV-DR9030UV

FLV 外觀尺寸 27

Low Angle Ring Light
FLV-DL Series

FLV-DL5890[]

FLV 外觀尺寸 29

FLV-DL7260[]

FLV 外觀尺寸 30

FLV-DL9090[]

FLV 外觀尺寸 31

FLV-DL12060[]

FLV 外觀尺寸 32

FLV-DL15060[]

FLV 外觀尺寸 33

Coaxial Light
FLV-CL Series

FLV-CL30[]

FLV 外觀尺寸 35

FLV-CL40[]

FLV 外觀尺寸 36

FLV-CL60[]

FLV 外觀尺寸 37

FLV-CL80[]

FLV 外觀尺寸 38

FLV-CL100[]

FLV 外觀尺寸 39

Shadowless Ring Light
FLV-FR Series

FLV-FR114[]

FLV 外觀尺寸 41

FLV-FR150[]

FLV 外觀尺寸 42

Shadowless Low Angle Ring Light
FLV-FP Series

FLV-FP130[]

FLV 外觀尺寸 44

Shadowless Dome Ring Light
FLV-FS Series

FLV-FS74[]

FLV 外觀尺寸 46

Shadowless Light
FLV-FQ Series

FLV-FQ48[]

FLV 外觀尺寸 48

Spot Light
FLV-EP50 Series

FLV-EP50[]

FLV 外觀尺寸 50

High-power Spot Light
FLV-EP08 Series

FLV-EP0803[]

FLV 外觀尺寸 52

Direct Back Light
FLV-DB Series

FLV-DB3729[]

FLV 外觀尺寸 54

FLV-DB101812[]

FLV 外觀尺寸 55

FLV-DB130130[]

FLV 外觀尺寸 56

FLV-DB212152[]

FLV 外觀尺寸 57

Edge Type Light
FLV-FB Series

FLV-FB5050[]

FLV 外觀尺寸 59

FLV-FB7070[]

FLV 外觀尺寸 60

FLV-FB9090[]

FLV 外觀尺寸 61

FLV-FB130130[]

FLV 外觀尺寸 62

FLV-FB200200[]

FLV 外觀尺寸 63

Edge Type Coaxial Light
FLV-FX Series

FLV-FX100[]

FLV 外觀尺寸 65

FLV-FX143[]

FLV 外觀尺寸 66

Dome Light
FLV-DD Series

FLV-DD70[]

FLV 外觀尺寸 68

FLV-DD100[]

FLV 外觀尺寸 69

FLV-DD150[]

FLV 外觀尺寸 70

Line Light
FLV-LN Series

FLV-LN82W/B

FLV 外觀尺寸 72

FLV-LN142W/B

FLV 外觀尺寸 73

FLV-LN322W/B

FLV 外觀尺寸 74

FLV-LN442W/B

FLV 外觀尺寸 75

FLV-LN122R

FLV 外觀尺寸 76

FLV-LN222R

FLV 外觀尺寸 77

FLV-LN322R

FLV 外觀尺寸 78

FLV-LN422R

FLV 外觀尺寸 79

Camera-mount Lighting Controller for FLV Series
FLV-TCC Series

Lighting Controller

FLV-TCC4

FLV 外觀尺寸 82

FLV-TCC1

FLV 外觀尺寸 83

FLV-TCC3HB

FLV 外觀尺寸 84

FLV-TCC1EP

FLV 外觀尺寸 85

Camera mount plate (provided)

FLV 外觀尺寸 86

Analog Lighting Controller for FLV Series
FLV-ATC Series

Lighting Controller for Standard Light FLV-ATC21024/-ATC41024

FLV-ATC21024-[]

FLV 外觀尺寸 89

FLV-ATC41024-[]

FLV 外觀尺寸 90

Lighting Controller for Spot Light FLV-ATC10405/-ATC40405

FLV-ATC10405-[]

FLV 外觀尺寸 92

FLV-ATC40405-[]

FLV 外觀尺寸 93

Lighting Controller for Line Light: FLV-ATC26024-100V/-200V

FLV-ATC26024-[]

FLV 外觀尺寸 95

Digital Lighting Controller for FLV Series
3Z4S-LT IDGB Series

Digital Lighting Controllers

IDGB-50M2-L01

FLV 外觀尺寸 97

IDGB-150M4-L01

FLV 外觀尺寸 98

External ON/OFF Cables

IC-MIL-20-[]

FLV 外觀尺寸 99

External Light Control Cables

IC-MIL-26-[]

FLV 外觀尺寸 100

Options for FLV series

Cable

FLV-XC[]

FLV 外觀尺寸 103

FLV-XC[]R

FLV 外觀尺寸 104

FLV-XC[]EP

FLV 外觀尺寸 105

FLV-XC[]EPR

FLV 外觀尺寸 106

FLV-XC[]LN

FLV 外觀尺寸 107

FLV-XC[]S2

FLV 外觀尺寸 108

English

Global Edition

以下是海外共通的產品型錄，其中可能包含不在台灣銷售的型號。

在台灣訂購時請注意確認。

※若型錄PDF檔案太大，建議按滑鼠右鍵＂另存目標＂下載。
Catalog Name Catalog Number
[size]		 Last Update
Vision Accessory Catalog Q198-E1-15
[54743KB] 		Sep 15, 2022
20220915
 Vision Accessory Catalog
如有需要請洽各所營業人員

誠睿台南所 TEL：06-2493086
誠睿台中所 TEL：04-23380790
誠睿新竹所 TEL：03-6685558
客服信箱 service@hitifa.com.tw
如有需要請洽各所營業人員

誠睿台南所 TEL：06-2493086
誠睿台中所 TEL：04-23380790
誠睿新竹所 TEL：03-6685558
客服信箱 service@hitifa.com.tw
更多案例 更多產品 TOP
