E3S-GS3E4
產品特色
A Grooved-type Sensor That Doesn't Require Optical Axes Alignment
Grooved-type Photoelectric Sensor
| Sensing method | Appearance | Sensing distance | Model |
|---|---|---|---|
| Grooved-type |  |
30 mm (Infrared light) | E3S-GS3E4 2M |
| Sensing method | Grooved-type | |
|---|---|---|
| Model | E3S-GS3E4 | |
| Sensing distance | 30 mm | |
| Standard sensing object | Opaque, 6-mm dia. min. | |
| Minimum detectable object | 3-mm dia. min. (black mark on transparent sheet) | |
| Light source (wavelength) | Infrared LED (950 nm) | |
| Power supply voltage | 12 to 24 VDC ±10%, ripple (p-p): 10% max. | |
| Current consumption | 40 mA max. | |
| Control output | Load power supply voltage: 24 VDC max., Load current: 80 mA max. (residual voltage: 1.5 V max.); NPN voltage output; Light-ON/Dark-ON mode selector |
|
| Protection circuits | Power supply reverse polarity, Output short-circuit protection | |
| Response time | Operate or reset: 1 ms max. | |
| Sensitivity adjustment | One-turn adjuster | |
| Ambient illumination (Receiver side) |
Incandescent lamp: 3,000 lx max. Sunlight: 10,000 lx max. |
|
| Ambient temperature | Operating: - 25 to 55 ° C (with no icing or condensation) Storage: - 40 to 70 ° C (with no icing or condensation) |
|
| Ambient humidity | Operating: 35% to 85% (with no condensation) Storage: 35% to 95% (with no condensation) |
|
| Insulation resistance | 20 MΩ min. (at 500 VDC) | |
| Dielectric strength | 1,000 VAC at 50/60 Hz for 1 min | |
| Vibration resistance (destruction) | 10 to 55 Hz with a 1.5-mm double amplitude for 2 h each in X, Y and Z directions | |
| Shock resistance (destruction) | 500 m/s2, for 3 times each in X, Y and Z directions | |
| Degree of protection | IEC IP67 | |
| Connection method | Pre-wired (standard length: 2 m) | |
| Weight (packed state) | Approx. 330 g | |
| Materials | Case | Zinc die-cast |
| Lens | Polycarbonate | |
| Indicator window | Polycarbonate | |
| Accessories | Adjustment screwdriver, Sensitivity adjuster, Instruction sheet | |

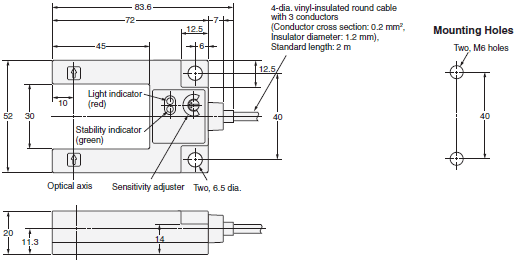

（單位：mm）
Unless otherwise specified, the tolerance class IT16 is used for dimensions in this data sheet.
