• Electronic Relay with the same operation as the G4Q Latching Relay. Compared with the G4Q, the 61F-AO has a shorter power supply application time and no restrictions on mounting direction.
• Compact form allows space-saving design
• Free power supply makes design/inventory management easy
• Easy to replace during maintenance due to compatibility with the 61F-APN2
| Type | Model |
|---|---|

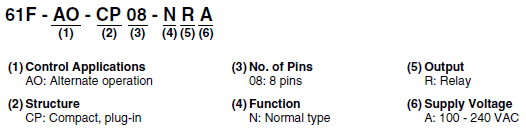

| Alternate Operation Relay | 61F-AO-CP08-NRA |
| 61F-AO-CP08-NRA | |
|---|---|
| Supply voltage/frequency | 100 VAC - 240 VAC 50/60 Hz |
| Operating voltage range | 85 to 110% of rated voltage |
| Operating frequency range | ± 5 Hz of the rated frequency |
| Power consumption | 1.6 VA max. |
| Contact ratings | 3 A at 250 VAC (Resistive load (cosφ = 1)) 1.5 A at 250 VAC (Inductive load (cosφ = 0.4)) |
| Ambient temperature | -10 to 55°C |
| Ambient humidity | 25% to 85% RH |
| Ambient storage temperature | -10 to 55°C |
| Ambient storage humidity | 25% to 85% RH |
| Weight | Approx. 100 g |
| Accessories | PFC-N8 |
| 61F-AO-CP08-NRA | |
|---|---|
| Response time | Operate: 25 ms max. Release: 30 ms max. |
| Minimum pulse width | Min. ON time: 40 ms min. Min. OFF time: 2 s min. |
| Insulation resistance | 10 MΩ min. at 500 VDC (between each terminal and power supply) |
| Dielectric strength | 2,000 VAC, 50/60 Hz for 1 min (between each terminal and power supply) |
| Life expectancy | Electrical: 100,000 operations min. Mechanical: 1,000,000 operations min. |

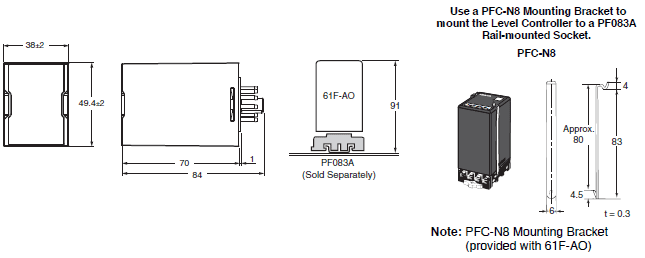

（單位：mm）
