• Simple configuration and management of multiple readers via WebLinkPC
• Point-and-shoot decode performance and minimal workflow disruption
• Industry-leading 1D/2D DPM decoding performance with Omron’s X-Mode Imaging Technology (V410-H XD)
• IP52 sealing to protect against spills
• Captures 1D and 2D barcodes at variable distances and densities
• Covered speaker and screw holes to mitigate bacteria buildup (V410-H HC)
• On-the-fly switching between handheld and hands-free reading
| Part | Description | Part Number |
|---|---|---|
 |
V410-H XD Handheld Reader, Black Grey, Wired, with X-Mode | V410-HDS4608XD |
| V410-H SR Handheld Reader, Black Grey, Wired | V410-HDS4608SR | |
 |
V410-H HC Handheld Reader, White, Wired | V410-HDS4608HC |
| Appearance | Type | Part Number |
|---|---|---|
 |
Presentation Stand, V410-H | V410-AS0 |
 |
Cable Assembly, Style 3 USB, 7 Ft, Mod Plug | V410-WUB-2M |
 |
Cable Assembly, RS232, DB9F, TXD-2, 7 Ft, V410-H | V410-WR-2M |
 |
Kit, V410-H AC Power Supply 5.2VDC, 1.1A | V410-AC0-1 |
| V410-H | XD | SR | HC |
|---|---|---|---|
| Item | Description | ||
| Physical Characteristics | |||
| Dimensions | 6.5 in. H x 2.6 in. W x 3.9 in. D 165 mm H x 67 mm W x 98 mm D |
||
| Weight | 5.7 oz. / 161.9 g | ||
| Input Voltage Range | 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply | ||
| Operating Current at Nominal Voltage (5.0V) |
375 mA (typical) | 340 mA (typical) | 375 mA (typical) |
| Standby Current (Idle) at Nominal Voltage (5.0V) |
150 mA (typical) | ||
| Color | Black Grey | Black Grey | Healthcare White |
| Supported Host Interfaces |
USB 1.1, RS-232 | ||
| USB Certification | USB 1.1 Certified | ||
| Keyboard Support | Supports over 90 international keyboards | ||
| Electronic Article Surveillance |
Compatible with Checkpoint EAS deactivation system |
||
| User Indicators | Direct Decode Indicator, Good Decode LEDs, rear view LEDs, beeper (adjustable tone and volume), haptic/vibration |
Direct Decode Indicator, Good Decode LEDs, rear view LEDs, beeper (adjustable tone and volume) |
Direct Decode Indicator, Good Decode LEDs, rear view LEDs, beeper (adjustable tone and volume), haptic/vibration |
| Performance Characteristics | |||
| Light Source | Aiming Pattern: circular 528nm true green LED |
Aiming Pattern: circular 617nm amber LED |
Aiming Pattern: circular 528nm true green LED |
| Illumination | (2) Warm White LEDs | (2) 660nm Red LEDs | (2) Warm White LEDs |
| Imager Field of View | 34° H x 21.6° V nominal | 36.1° H x 22.6° V nominal | 35° H x 22° V nominal |
| Image Sensor | 1280 x 800 pixels | ||
| Minimum Print Contrast | 15% minimum reflective difference | ||
| Skew Tolerance | +/- 60° | ||
| Pitch Tolerance | +/- 60° | ||
| Roll Tolerance | 0° - 360° | ||
| Imaging Characteristics | |||
| Graphics Format Support | Images can be exported as Bitmap, JPEG, or TIFF | ||
| Image Quality | 96 PPI on an A4 document | ||
| Environmental | |||
| Operating Temperature | 32.0° to 122.0° F / 0.0° to 50.0°C | ||
| Storage Temperature | -40.0° to 158.0° F / -40.0° to 70.0°C | ||
| Humidity | 5% to 95% RH, non-condensing | ||
| Drop Specification | Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete | ||
| Tumble Specification | Designed to withstand 2,000 tumbles in 1.5 ft./0.5 m tumbler | ||
| Environmental Sealing | IP52 | ||
| Approved Cleaners | Standard disinfectants | ||
| Electrostatic Discharge (ESD) |
ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect | ||
| Ambient Light Immunity | 0 to 10,000 foot-candles / 0 to 107,600 lux | ||
| Accessories | Gooseneck Intellistand | ||
| Symbol Decode Capability | |||
| 1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
||
| 2D | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, Data Matrix, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm, DotCode, Dotted Data Matrix |
PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, Data Matrix, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm, DotCode, Dotted Data Matrix |
PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, Data Matrix, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm |
| OCR | OCR-A, OCR-B, MICR, US Currency | ||
| Minimum Element Resolution |
Code 39 - 2.0 mil | Code 39 - 3.0 mil | Code 39 - 2.0 mil |
| Data Matrix - 4.0 mil | Data Matrix - 5.0 mil | Data Matrix - 4.0 mil | |
| Decode Ranges (Typical; Printing resolution, contrast, and ambient light-dependent) | |||
| Symbology/Resolution | Near/Far | Near/Far | Near/Far |
| Code 128: 2 mil | 0.3 in. / 8 mm to 2.3 in. / 58 mm |
||
| Code 128: 3 mil | 0 in. / 0 mm to 3.5 in. / 88 mm |
||
| Code 128: 5 mil | 2.7 in. / 69 mm to 5.4 in. / 137 mm |
1.7 in. / 43 mm to 5.0 in. / 127 mm |
|
| Code 128: 15 mil | 4.2 in. / 107 mm to 8.6 in. / 218 mm |
||
| Code 39: 2 mil | 0.2 in. / 5 mm to 3.0 in. / 76 mm |
||
| Code 39: 3 mil | 0 in. / 0 mm to 3.8 in. / 96 mm |
2.2 in. / 56 mm to 5.4 in. / 137 mm |
1.3 in. / 33 mm to 6.0 in. / 152 mm |
| Code 39: 5 mil | 0 in. / 0 mm to 5.2 in. / 132 mm |
0.7 in. / 18 mm to 11.0 in. / 279 mm |
0.1 in. / 3 mm to 11.5 in. / 292 mm |
| Code 39: 20 mil | 0 in. / 0 mm to 44.0 in. / 1118 mm |
0.6 in. / 15 mm to 29.0 in. / 737 mm |
|
| PDF417: 4 mil | 0 in. / 0 mm to 3.3 in. / 84 mm |
||
| PDF417: 5 mil | 0 in. / 0 mm to 3.8 in. / 96 mm |
||
| PDF417: 6.6 mil | 0 in. / 0 mm to 4.5 in. / 114 mm |
||
| PDF417: 6.7 mil | 1.3 in. / 33 mm to 10.0 in. / 254 mm |
0.6 in. / 15 mm to 9.3 in. / 236 mm |
|
| UPC: 13 mil (100%) | 0 in. / 0 mm to 8.5 in. / 215 mm |
0 in. / 0 mm to 28.0 in. / 711 mm |
0 in. / 0 mm to 18.0 in. / 457 mm |
| Data Matrix: 4 mil | 0.2 in. / 5 mm to 2.8 in. / 71 mm |
||
| Data Matrix: 5 mil | 0 in. / 0 mm to 3.4 in. / 86 mm |
||
| Data Matrix: 10 mil | 0 in. / 0 mm to 4.8 in. / 122 mm |
1.0 in. / 25 mm to 11.5 in. / 292 mm |
0.2 in. / 5 mm to 9.5 in. / 241 mm |
| QR Code: 10 mil | 0 in. / 0 mm to 4.5 in. / 114 mm |
||
| QR Code: 20 mil | 0 in. / 0 mm to 17.5 in. / 445 mm |
0 in. / 0 mm to 13.5 in. / 343 mm |
|
| Utilities and Device Management | |||
| WebLinkPC | Programs reader parameters, upgrades firmware, provides encoded barcode data, allows image-based troubleshooting |
||
| Regulatory Compliance | |||
| LED Safety Standard | IEC 62471 Exempt Risk Group | ||
| EMC Standards | EN 55032, EN 55035, FCC Part 15, Subpart B (Class B) | ||
| Safety Standards | EN 62368-1 | ||
| Certifications | RCM, EAC, BSMI, CE, cULus (KC under application) | ||

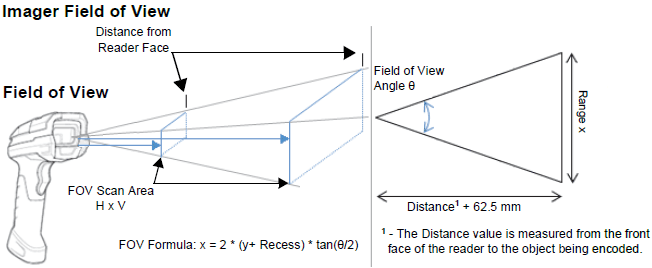

| y (mm) |
y + Recess | θ | Range x (mm) |
FOV Scan Area H x V (mm) |
Distance from Reader Face (mm) |
FOV Scan Area H x V (in) |
Distance from Reader Face (in) |
|---|---|---|---|---|---|---|---|
| 5 | 67.5 | 34 | 41 | 41 x 26 | 5 | 1.6 x 1.0 | 0.2 |
| 5 | 67.5 | 21.6 | 26 | - | - | - | - |
| 71 | 133.5 | 34 | 82 | 82 x 51 | 71 | 3.2 x 2.0 | 2.8 |
| 71 | 133.5 | 21.6 | 51 | - | - | - | - |
| y (mm) |
y + Recess | θ | Range x (mm) |
FOV Scan Area H x V (mm) |
Distance from Reader Face (mm) |
FOV Scan Area H x V (in) |
Distance from Reader Face (in) |
|---|---|---|---|---|---|---|---|
| 25 | 87.5 | 36.1 | 57 | 57 x 35 | 25 | 2.2 x 1.4 | 1 |
| 25 | 87.5 | 22.6 | 35 | - | - | - | - |
| 445 | 507.5 | 36.1 | 331 | 331 x 203 | 445 | 13.0 x 8.0 | 17.5 |
| 445 | 507.5 | 22.6 | 203 | - | - | - | - |
| y (mm) |
y + Recess | θ | Range x (mm) |
FOV Scan Area H x V (mm) |
Distance from Reader Face (mm) |
FOV Scan Area H x V (in) |
Distance from Reader Face (in) |
|---|---|---|---|---|---|---|---|
| 3 | 65.5 | 35 | 41 | 41 x 25 | 3 | 1.6 x 1.0 | 0.1 |
| 3 | 65.5 | 22 | 25 | - | - | - | - |
| 292 | 354.5 | 25 | 223 | 223 x 138 | 292 | 8.8 x 5.4 | 11.5 |
| 292 | 354.5 | 22 | 138 | - | - | - | - |

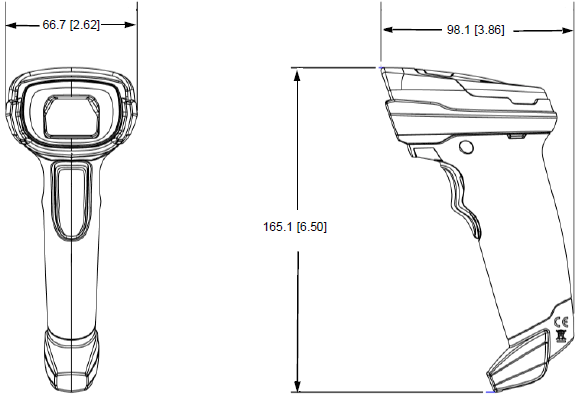

（單位：mm）
Note: Reader dimensions are the same for the V410-H XD, V410-H SR, and V410-H HC.
