Omron now provides our machine vision solution developed for the manufacturing floor as a package that can be installed on PC-based systems.
FJ Series (Camera and Software Vision Package)
產品特色
Built-in high-quality image processing in a PC system. Camera and Software Vision Package.
Quick Installation on Your PC-based Systems
Cameras
Connect quickly and Expand easily
GigE Cameras

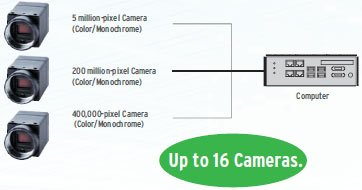

Six different GigE cameras which has compatibility with FJ software are available. They can realize quick connectivity and stable working. It can be expanded up to 16 cameras.
Measurement Controls
Simple programming and quick testing
Menu driven Software
More than 100 proven processing items from OMRON, have a GUI developed for the manufacturing floor in a long factory automation experiences.
This greatly reduces program development work in comparison with library based programming.

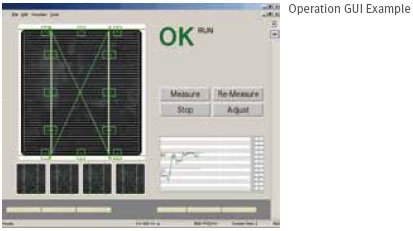

GUI Design
Quick development original GUIs
(This example was created with FJ’s Application Producer and Visual Studio®.)
Layout Editor
You can easily customize the positions, sizes, and functions of windows and buttons based on OMRON's GUIs, which are highly appraised for being easy to use and easy to understand.
Wide Range of GUI Modules
You can use a lot of custom controls and sample codes implemented in Application Producer to create your own GUIs easily.
Algorithms
Highly robust measurement algorithms.
HDR Sensing
The dynamic range has been increased by up to 5,000 times to enable clear imaging of inspection objects that was previous not possible due to lighting inconsistencies or halation.
Real Color Sensing
Inspecting real color data enables detecting minute differences in colors that are difficult to detect with color gray conversion or filtering.
Programming
Implement own program
You can implement your own program as original processing item with using Visual Studio® and Application Producer easily.
Macro Processing Items
You can implement even advanced calculations on the processing flow as a Macro processing items easily.
It allow you to edit the program on the controller and the compiling is not necessary. So you can develop and adjust the system quickly.
･Microsoft® Visual Studio® and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
･Intel and the Intel logo are trademarks of Intel Corporation in the U.S. and/or other countries.
･Other company names and product names in this document are the trademarks or registered trademarks of their respective companies.
| Type | Model | Operating environment | |||
|---|---|---|---|---|---|
| Camera & Software Vision Package • Application software × 1 license (CD-ROM × 1, Dongle key × 1) • Camera × 1 unit |
 |
400,000 pixels |
Monochrome | FJ-SG2-S | • CPU: Intel Pentium Processor (SSE2 or higher) • OS: Windows 7 Professional (32/ 64bit) or Enterprise (32/64bit) or Ultimate (32/64bit), Windows 10 (32/ 64bit) • .NET Framework: .NET Framework 3.5 SP1 or higher • Memory: At least 2 GB RAM Available disk space: At least 2 GB • Camera interface: Ethernet 1000BASE-T • Display: XGA (1024 × 768), True Color (32-bit) or higher • Optical drive: CD/DVD drive |
| 400,000 pixels |
Color | FJ-SCG2-S | |||
| 2 million pixels |
Monochrome | FJ-S2MG2-S | |||
| 2 million pixels |
Color | FJ-SC2MG2-S | |||
| 5 million pixels |
Monochrome | FJ-S5MG2-S | |||
| 5 million pixels |
Color | FJ-SC5MG2-S | |||
| Camera (Single unit) |
 |
400,000 pixels |
Monochrome | FJ-SG2 | - |
| 400,000 pixels |
Color | FJ-SCG2 | |||
| 2 million pixels |
Monochrome | FJ-S2MG2 | |||
| 2 million pixels |
Color | FJ-SC2MG2 | |||
| 5 million pixels |
Monochrome | FJ-S5MG2 | |||
| 5 million pixels |
Color | FJ-SC5MG2 | |||
| Tripod Mount (Optional adapter for fastening the camera with tripod screws) |
 |
--- | TP-KWA | ||
| Camera cable (LAN) |
 |
Cable length: 3 m, 5 m, 10 m, 20 m, 40 m |
FJ-VSG []M *2 |
||
| Camera cable (Power, I/O) |
 |
Cable length: 3 m, 5 m, 10 m *1 |
FJ-VSP2 []M *2 |
||
| Development environment Application Producer *3 |
Media only | CD-ROM | FH-AP1 | • CPU: Intel Pentium Processor (SSE2 or higher) • OS: Windows 7 Professional (32/64bit) or Enterprise (32/64bit) or Ultimate (32/ 64bit), Windows 8 Pro (32/64bit) or Enterprise (32/64bit), Windows 8.1 Pro (32/64bit) or Enterprise (32/64bit), Windows 10 Pro (32/64bit) or Enterprise (32/64bit) The following operating environment is required to use the camera FJ-[][][]G2. Windows 7 Professional (32/64bit) or Enterprise (32/64bit) or Ultimate (32/ 64bit) Windows 10 (32/64bit) • .NET Framework: .NET Framework 3.5 SP1 or higher • Memory: At least 2 GB RAM Available disk space: At least 2 GB • Browser: Microsoft® Internet Explorer 6.0 or later • Display: XGA (1024 × 768), True Color (32-bit) or higher • Optical drive: CD/DVD drive • The following operating environment is required to use the camera FJ-S[][][]G2. Camera interface: Ethernet 1000BASE-T • The following software is required to customize the software: Microsoft® Visual Studio® 2008 Professional, or Microsoft® Visual Studio® 2010 Professional, or Microsoft® Visual Studio® 2012 Professional |
|
| 1 license | --- | FH-AP1L | |||
*1. The boxes in the model numbers are replaced by the cable length: 3 m = 3, 5 m = 5, 10 m = 10, 20 m = 20 and 40 m = 40
*2. The boxes in the model numbers are replaced by the cable length: 3 m = 3, 5 m = 5, 10 m = 10
*3. Use the development environment Application Procedure version 6.31A or higher. The FJ-S[]G2/S[]2MG2/S[]5MG2
Camera cannot be used with the Application Procedure version lower than 6.31A.
*2. The boxes in the model numbers are replaced by the cable length: 3 m = 3, 5 m = 5, 10 m = 10
*3. Use the development environment Application Procedure version 6.31A or higher. The FJ-S[]G2/S[]2MG2/S[]5MG2
Camera cannot be used with the Application Procedure version lower than 6.31A.
Lenses
Refer to the Vision Accessory Catalog (Cat. No. Q198) for details.
| Camera Model | Resolution | Recommended lens | ||
|---|---|---|---|---|
| Standard Lens | Telecentric Lens | Vibrations and Shocks Resistant Lens |
||
| FJ-SG2 | 0.4 million pixels | SV-V Series | VS-TCH Series | VS-MCA Series |
| FJ-SCG2 | ||||
| FJ-S2MG2 | 2 million pixels | SV-H Series | ||
| FJ-SC2MG2 | ||||
| FJ-S5MG2 | 5 million pixels | |||
| FJ-SC5MG2 | ||||
Camera
| FJ-SCG2/SG2 | FJ-SC2MG2/S2MG2 | FJ-SC5MG2/S5MG2 | ||
|---|---|---|---|---|
| Imaging element | Progressive scan 1/2.9" CMOS | Progressive scan 1/1.7"CMOS | Progressive scan 2/3"CMOS | |
| Shutter | Global shutter | |||
| Effective pixels | 720 (H) × 540 (V) | 1,624 (H) × 1,240 (V) | 2,448 (H) × 2,048 (V) | |
| Pixel size | 6.9 (μm) × 6.9 (μm) | 4.5 (μm) × 4.5 (μm) | 3.45 (μm) × 3.45 (μm) | |
| Synchronous system | Internal synchronous | |||
| Frame rate | 282.8 fps | 54.6 fps | 21.9 fps | |
| Number of uptake lines | 4 to 540 line | 8 to 1240 line | 4 to 2048 line | |
| Gain | 0 dB to +20.8 dB | |||
| Shutter speed | 1 μs to 16.777 s | |||
| Video output | Digital 8 bit | |||
| Trigger input | External trigger/Software trigger (Ethernet) | |||
| External output | Strobe trigger/Trigger READY (can be configured by software) | |||
| I/F | Gigabit Ethernet (1 Gbit/s) | |||
| Lens mount | C mount | |||
| Power delivery |
Camera cable (LAN) | Power over Ethernet (Conform to IEEE802.3af) | ||
| Camera cable (power supply, I/O) |
10.8 to 13.2 VDC | |||
| Power consumption | PoE supply: 4.7 W | PoE supply: 4.9 W | PoE supply: 4.4 W | |
| Power and I/O connector supply: 3.7 W |
Power and I/O connector supply: 4.0 W |
Power and I/O connector supply: 3.6 W |
||
| Vibration resistance | 10 to 150 Hz, Half amplitude 0.35 mm (Acceleration: Max. 50 m/s2), 3 directions (X/Y/Z) 8 minutes each, 10 times |
|||
| Impact resistance | 150 m/s2, 6 directions (Up and Down, Right and Left, Back and Forth) 3 times each |
|||
| Ambient temperature | Operating: 0 to 39°C, or 64°C or less at the top of the casing |
Operating: 0 to 36°C, or 64°C or less at the top of the casing |
Operating: 0 to 40°C, or 64°C or less at the top of the casing |
|
| Storage: -20 to 70°C (with no icing or condensation) | ||||
| Ambient humidity | Operating and storage: 35% to 85% (with no condensation) | |||
| Ambient environment | No corrosive gas | |||
| Protective structure | IEC60529 standard IP30 | |||
| Weight | Approx. 65 g | |||
| Materials | Aluminum alloy | |||
| Minimum cable bending radius | FJ-VSG: 27.2 mm FJ-VSP2: 43.2 mm | |||
Dongle key
| Interface | USB 2.0 |
|---|---|
| Operating current | 50 mA maximum |
| Operating temperature/humidity | 0 to 50°C / 35 to 85% (No condensation) |
| Storage temperature/humidity | -25 to 70°C / 35 to 85% (No condensation) |
| Weight | Approx. 6 g |
| Dimensions | Approx. 44.0 mm (L) × 16.0 mm (W) × 8.0 mm (H) |
（單位：mm）

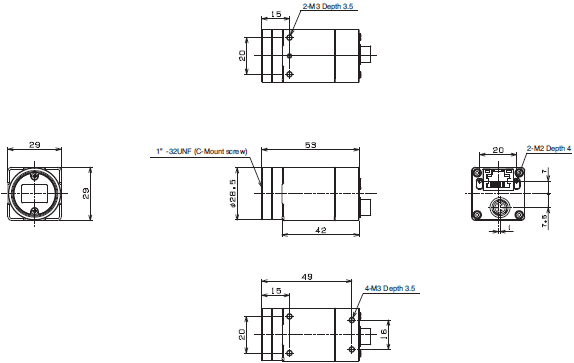

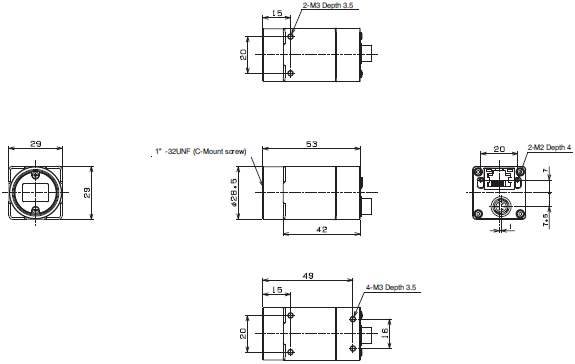

Camera
FJ-SG2/SCG2/S5MG2/SC5MG2
FJ-S2MG2/SC2MG2

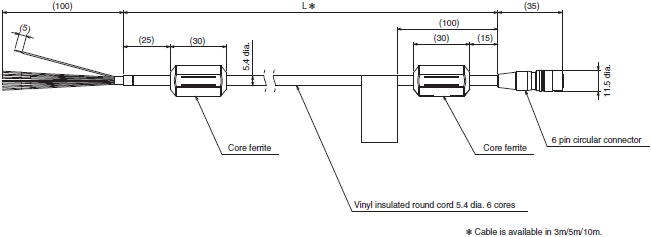

Camera cable (LAN)
FJ-VSG [][]M

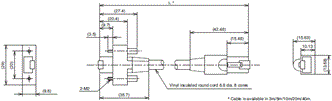

Camera cable (Power, I/O)
FJ-VSP2 [][]M
English
Global Edition
| Catalog Name | Catalog Number [size] |
Last Update | |
|---|---|---|---|
 FJ Series (Camera & Software Vision Package) Data Sheet |
Q188-E1-04 [1807KB] |
Jan 04, 2021
20210104
|
FJ Series (Camera & Software Vision Package) Data Sheet |
| FJ Series Catalog |
Q185-E1-04 [2902KB] |
Jan 04, 2021
20210104
|
FJ Series Catalog |
