The High-precision Object Detection Required for Positioning
FZ5
產品特色
A range of processing items for positioning and inspection
Converting Measurement Results to Output User Units
Easily Integrate Interfaces into the Machine
Easy Setup with Program Scalability
FZ5 Series Sensor Controllers
| Item | CPU | No. of cameras | Output | Model | |
|---|---|---|---|---|---|
 |
Controllers integrated with LCD |
High-speed Controllers | 2 | NPN | FZ5-1200 |
| PNP | FZ5-1205 | ||||
| 4 | NPN | FZ5-1200-10 | |||
| PNP | FZ5-1205-10 | ||||
| Standard Controllers | 2 | NPN | FZ5-800 | ||
| PNP | FZ5-805 | ||||
| 4 | NPN | FZ5-800-10 | |||
| PNP | FZ5-805-10 | ||||
Cameras
| Item | Descriptions | Color/ Monochrome |
Image read time |
Model | |
|---|---|---|---|---|---|
 |
Digital CCD/CMOS Cameras (Lens required) |
5 million pixels | Color | 38.2 ms | FZ-SC5M3 |
| Monochrome | FZ-S5M3 | ||||
 |
2 million pixels | Color | 33.3 ms | FZ-SC2M | |
| Monochrome | FZ-S2M | ||||
 |
300,000 pixels | Color | 12.5 ms | FZ-SC | |
| Monochrome | FZ-S | ||||
 |
Small Digital CCD Cameras (Lenses for small camera required) |
300,000-pixel flat type | Color | 12.5 ms | FZ-SFC |
| Monochrome | FZ-SF | ||||
 |
300,000-pixel pen type | Color | 12.5 ms | FZ-SPC | |
| Monochrome | FZ-SP | ||||
 |
Intelligent Compact CMOS Cameras (Camera + Manual Focus Lens + High power Lighting) |
Narrow view | Color | 16.7 ms | FZ-SQ010F |
| Standard view | Color | FZ-SQ050F | |||
 |
Wide View (long-distance) | Color | FZ-SQ100F | ||
| Wide View (short-distance) | Color | FZ-SQ100N | |||
Camera Cables
| Item | Descriptions | Cable length *2 | Model |
|---|---|---|---|
 |
Camera Cable | 2 m | FZ-VS3 2M |
| 3 m | FZ-VS3 3M | ||
| 5 m | FZ-VS3 5M | ||
| 10 m | FZ-VS3 10M | ||
 |
Bend resistant Camera Cable | 2 m | FZ-VSB3 2M |
| 3 m | FZ-VSB3 3M | ||
| 5 m | FZ-VSB3 5M | ||
| 10 m | FZ-VSB3 10M | ||
 |
Right-angle Camera Cable *1 | 2 m | FZ-VSL3 2M |
| 3 m | FZ-VSL3 3M | ||
| 5 m | FZ-VSL3 5M | ||
| 10 m | FZ-VSL3 10M | ||
 |
Bend resistant Right-angle Camera Cable *1 | 2 m | FZ-VSLB3 2M |
| 3 m | FZ-VSLB3 3M | ||
| 5 m | FZ-VSLB3 5M | ||
| 10 m | FZ-VSLB3 10M | ||
 |
Long-distance Camera Cable | 15 m | FZ-VS4 15M |
 |
Long-distance Right-angle Camera Cable *1 | 15 m | FZ-VSL4 15M |
 |
Cable Extension Unit Up to two Extension Units and three Cables can be connected. (Maximum cable length: 45 m *2) |
- | FZ-VSJ |
*1 This Cable has an L-shaped connector on the Camera end.
*2 The maximum cable length depends on the Camera being connected, and the model and length of the Cable being
used. For further information, please refer to the ″Cameras/Cables Connection Table″ and ″Maximum Extension
Length Using Cable Extension Units FZ-VSJ″.
*2 The maximum cable length depends on the Camera being connected, and the model and length of the Cable being
used. For further information, please refer to the ″Cameras/Cables Connection Table″ and ″Maximum Extension
Length Using Cable Extension Units FZ-VSJ″.
Cameras/Cables Connection Table
| Type of camera |
Model | Cable length |
Digital CCD/CMOS cameras | Small digital CCD cameras Pen type/ flat type |
Intelli-gent compact CMOS cameras |
||
|---|---|---|---|---|---|---|---|
| 300,000- pixel |
2 million- pixel |
5 million- pixel |
|||||
| FZ-S/SC | FZ-S2M/ SC2M |
FZ-S5M3/ SC5M3/ S5M2 |
FZ-SF/SFC FZ-SP/SPC |
FZ-SQ[] | |||
| Camera Cables Right-angle camera cables |
FZ-VS3 FZ-VSL3 |
2 m | Yes | Yes | Yes | Yes | Yes |
| 3 m | Yes | Yes | Yes | Yes | Yes | ||
| 5 m | Yes | Yes | Yes | Yes | Yes | ||
| 10 m | Yes | Yes | No | Yes | Yes | ||
| Bend resistant camera cables Bend resistant Right-angle Camera Cable |
FZ-VSB3 FZ-VSLB3 |
2 m | Yes | Yes | Yes | Yes | Yes |
| 3 m | Yes | Yes | Yes | Yes | Yes | ||
| 5 m | Yes | Yes | Yes | Yes | Yes | ||
| 10 m | Yes | Yes | No | Yes | Yes | ||
| Long-distance camera cable Long-distance right-angle camera cable |
FZ-VS4 FZ-VSL4 |
15 m | Yes | Yes | No | Yes | Yes |
Maximum Extension Length Using Cable Extension Units FZ-VSJ
| Item | Model | Maximum cable length using 1 Camera Cable |
Max. number of connectable Extension Units |
Using Cable Extension Units FZ-VSJ |
|
|---|---|---|---|---|---|
| Max. cable length |
Connection configuration |
||||
| Digital CCD/CMOS Cameras |
FZ-S/SC FZ-S2M/SC2M |
15 m (Using FZ-VS4/VSL4) |
2 | 45 m | Camera cable: 15 m ✕ 3 Extension Unit: 2 |
| FZ-S5M3/SC5M3 | 5 m (Using FZ-VS[]/VSL[]) |
2 | 15 m | Camera cable: 5 m ✕ 3 Extension Unit: 2 |
|
| Small Digital CCD Cameras Flat type/ Pen type |
FZ-SF/SFC FZ-SP/SPC |
15 m (Using FZ-VS4/VSL4) |
2 | 45 m | Camera cable: 15 m ✕ 3 Extension Unit: 2 |
| Intelligent Compact CMOS Cameras |
FZ-SQ[] | 15 m (Using FZ-VS4/VSL4) |
2 | 45 m | Camera cable: 15 m ✕ 3 Extension Unit: 2 |
LED Monitor Cable
| Item | Descriptions | Cable length | Model |
|---|---|---|---|
 |
LED Monitor Cable | 2 m | FZ-VM 2M |
| 5 m | FZ-VM 5M |
Parallel I/O Cable
| Item | Descriptions | Cable length |
Model |
|---|---|---|---|
 |
Parallel I/O Cable | 2 m | FZ-VP 2M |
| 5 m | FZ-VP 5M | ||
 |
Parallel I/O Cable for Connector-terminal Conversion Unit Connector-Terminal Block Conversion Units can be connected (Terminal Blocks Recommended Products: OMRON XW2K-50G-T*) |
2 m | FZ-VPX 2M |
| 5 m | FZ-VPX 5M | ||
 |
Ultra-Compact Interface Wiring System (General-Purpose) | XW2K-50G-T* | |
* Refer to the XW2K Series Datasheet (Cat. No. G152) for details.
Recommended EtherNet/IP Communications Cables
Use Straight or cross STP (shielded twisted-pair) cable of category 5 or higher for EtherNet/IP.
| Item | Descriptions | Model | ||
|---|---|---|---|---|
| -- | Wire Gauge and Number of Pairs: AWG24, 4-pair Cable |
Cables | Hitachi Metals, Ltd. | NETSTAR-C5E SAB 0.5 × 4P CP *1 |
| -- | Kuramo Electric Co. | KETH-SB *1 | ||
| -- | RJ45 Connectors | Panduit Corporation | MPS588-C *1 | |
| -- | Wire Gauge and Number of Pairs: AWG22, 2-pair Cable |
Cables | Kuramo Electric Co. | KETH-PSB-OMR *2 |
| -- | JMACS Japan Co.,Ltd. | PNET/B *2 | ||
 |
RJ45 Assembly Connector |
OMRON | XS6G-T421-1 *2 | |
Note: Please be careful while cable processing for EtherNet/IP, connectors on only one end should be shield connected.
*1 We recommend you to use above cable For EtherNet/IP and RJ45 Connector together.
*2 We recommend you to use above cable For EtherNet/IP and RJ45 Assembly Connector together.
*1 We recommend you to use above cable For EtherNet/IP and RJ45 Connector together.
*2 We recommend you to use above cable For EtherNet/IP and RJ45 Assembly Connector together.
Accessories
| Item | Descriptions | Model | ||
|---|---|---|---|---|
 |
LCD Monitor 8.4 inches For Box-type Controllers |
FZ-M08 | ||
 |
USB Memory | 2 GB | FZ-MEM2G | |
| 8 GB | FZ-MEM8G | |||
 |
VESA Attachment For installing the LCD integrated-type controller |
FZ-VESA | ||
 |
Desktop Controller Stand For installing the LCD integrated-type controller |
FZ-DS | ||
 |
Display/USB Switcher | FZ-DU | ||
| -- | Mouse Recommended Products Driverless wired mouse (A mouse that requires the mouse driver to be installed is not supported.) |
--- | ||
 |
Industrial Switching Hubs for EtherNet/IP and Ethernet |
5 port | Current consumption: 0.07 A |
W4S1-05D |
| --- | External Lighting | --- | FLV Series * | |
| FL Series * | ||||
 |
Lighting Controller (Required to control external lighting from a Controller) |
For FLV-Series |
Camera Mount Lighting Controller | FLV-TCC Series * |
 |
Analog Lighting Controller | FLV-ATC Series * | ||
 |
For FL-Series |
Camera Mount Lighting Controller | FL-TCC Series * | |
 |
For Intelligent Compact Camera |
Mounting Bracket | FQ-XL | |
 |
Mounting Brackets | FQ-XL2 | ||
 |
Polarizing Filter Attachment | FQ-XF1 | ||
| --- | Mounting Bracket for FZ-S[] | FZ-S-XLC | ||
| Mounting Bracket for FZ-S[]2M | FZ-S2M-XLC | |||
| Mounting Bracket for FH-S[], FZ-S[]5M[] | FH-SM-XLC | |||
* Refer to the Vision Accessory Catalog (Cat. No. Q198) for details.
Lenses
Refer to the Vision Accessory Catalog (Cat. No. Q198) for details.
| Resolution | Camera Model | Size of image element |
Recommended lens | ||
|---|---|---|---|---|---|
| Standard Lens |
Telecentric Lens |
Vibrations and Shocks Resistant Lens |
|||
| 300,000-pixel | FZ-SF/SFC | 1/3” equivalent | FZ-LES Series | --- | --- |
| FZ-SP/SPC | |||||
| FZ-S/SC | SV-V Series | VS-TCH Series | VS-MCA Series Non-telecentric Macro VS-MC Series |
||
| 2 million-pixel | FZ-S2M/SC2M | 1/1.8” equivalent | SV-H Series | ||
| VS-H1 Series | VS-TEV Series | VS-MCA Series | |||
| 5 million-pixel | FZ-S5M3/SC5M3 | 2/3” equivalent | SV-H Series | VS-TCH Series | VS-MCA Series Non-telecentric Macro VS-MC Series |
FZ5 Sensor Controllers
| Type | High-speed Controllers | Standard Controllers | ||||
|---|---|---|---|---|---|---|
| Model | NPN | FZ5-1200 | FZ5-1200-10 | FZ5-800 | FZ5-800-10 | |
| PNP | FZ5-1205 | FZ5-1205-10 | FZ5-805 | FZ5-805-10 | ||
| Controller type | Controllers integrated with LCD | |||||
| No. of Cameras | 2 | 4 | 2 | 4 | ||
| Connected Camera | Can be connected to FZ-S series. | |||||
| Proc- essing reso- lution |
When connected to a intelligent compact camera |
752 (H) × 480 (V) | ||||
| When connected to a 300,000-pixel camera |
640 (H) × 480 (V) | |||||
| When connected to a 2 million-pixel camera |
1600 (H) × 1200 (V) | |||||
| When connected to a 5 million-pixel camera |
2448 (H) × 2044 (V) | |||||
| No. of scenes | 128 *1 | |||||
| Number of logged images *2 |
When connected to a intelligent compact camera |
Connected to 1 camera |
232 | |||
| Connected to 2 cameras |
116 | |||||
| Connected to 3 cameras |
77 | |||||
| Connected to 4 cameras |
58 | |||||
| When connected to a 300,000- pixel camera |
Connected to 1 camera |
Color camera: 270, Monochrome Camera: 272 | ||||
| Connected to 2 cameras |
Color camera: 135, Monochrome Camera: 136 | |||||
| Connected to 3 cameras |
Color camera: 90, Monochrome Camera: 90 | |||||
| Connected to 4 cameras |
Color camera: 67, Monochrome Camera: 68 | |||||
| When connected to a 2 million- pixel camera |
Connected to 1 camera |
Color camera: 43, Monochrome Camera: 43 | ||||
| Connected to 2 cameras |
Color camera: 21, Monochrome Camera: 21 | |||||
| Connected to 3 cameras |
Color camera: 14, Monochrome Camera: 14 | |||||
| Connected to 4 cameras |
Color camera: 10, Monochrome Camera: 10 | |||||
| When connected to a 5 million- pixel camera |
Connected to 1 camera |
Color camera: 16, Monochrome Camera: 16 | ||||
| Connected to 2 cameras |
Color camera: 8, Monochrome Camera: 8 | |||||
| Connected to 3 cameras |
Color camera: 5, Monochrome Camera: 5 | |||||
| Connected to 4 cameras |
Color camera: 4, Monochrome Camera: 4 | |||||
| Operation | Touch pen, mouse, etc. | |||||
| Settings | Create series of processing steps by editing the flowchart (Help messages provided). |
|||||
| Language | Japanese, English, Chinese (simplified), Chinese (Traditional), Korean, German, French, Italian, Spanish |
|||||
| Serial communications | RS-232C/422: 1 CH | |||||
| EtherNet communications | Ethernet 1000BASE-T | |||||
| EtherNet/IP communications | Ethernet port baud rate: 100 Mbps (100Base-TX) | |||||
| Parallel I/O | (When used in Multi-line random-trigger mode) • 17 inputs (RESET, STEP0/ENCTRIG_Z0, STEP1/ENCTRIG_Z1, DSA0 to 1, ENCTRIG_A0 to 1, ENCTRIG_B0 to 1, DI0 to 7), • 29 outputs (RUN/BUSY1, BUSY0, GATE0 to 1, OR0 to 1, READY0 to 1, ERROR, STGOUT0 to 3, DO0 to 15) (When used in other mode) • 13 inputs (RESET, STEP0/ENCTRIG_Z0, DSA0, ENCTRIG_A0, ENCTRIG_B0, DI0 to 7), • 26 outputs (RUN, BUSY0, GATE0, OR0, READY0, ERROR, STGOUT0 to 3, DO0 to 15) * STGOUT 2 to 3 only for camera 4 ch type |
|||||
| Monitor interface | Integrated Controller and LCD 12.1 inch TFT color LCD (Resolution: XGA 1,024 × 768 dots) |
|||||
| USB interface | 4 channels (supports USB 1.1 and 2.0) | |||||
| Power supply voltage *3 | 20.4 to 26.4 VDC | |||||
| Current con- sump- tion (at 24.0 VDC) *4 |
When connected to a intelligent compact camera |
5.0 A max. | 7.5 A max. | 5.0 A max. | 7.5 A max. | |
| When connected to a 300,000-pixel camera |
3.7 A max. | 4.9 A max. | 3.7 A max. | 4.9 A max. | ||
| When connected to a 2 million-pixel camera |
||||||
| When connected to a 5 million-pixel camera |
||||||
| Ambient temperature range | Operating: 0 to 45 °C for low cooling fan speeds, 0 to 50 °C for high cooling fan speeds Storage: -20 to 65 °C (with no icing or condensation) |
|||||
| Ambient humidity range | Operating and storage: 35% to 85% (with no condensation) | |||||
| Weight | Approx. 3.2 kg | Approx. 3.4 kg | Approx. 3.2 kg | Approx. 3.4 kg | ||
| Accessories | Touch pen (one, inside the front panel), Instruction Manual, 6 mounting brackets | |||||
*1 This can be increased up to 1024 using the Scene group conversion tool.
*2 The image logging capacity changes when multiple cameras of different types are connected at the same time.
*3 Do not ground the positive terminal of the 24-VDC power supply to a Lite Controller.
If the positive terminal is grounded, electrical shock may occur when an SG (0-V) part, such as the case of the Controller
or Camera, is touched.
*4 The current consumption when the maximum number of cameras supported by each controller are connected.
If a lighting controller model is connected to a lamp, the current consumption is as high as when an intelligent compact
camera is connected.
*2 The image logging capacity changes when multiple cameras of different types are connected at the same time.
*3 Do not ground the positive terminal of the 24-VDC power supply to a Lite Controller.
If the positive terminal is grounded, electrical shock may occur when an SG (0-V) part, such as the case of the Controller
or Camera, is touched.
*4 The current consumption when the maximum number of cameras supported by each controller are connected.
If a lighting controller model is connected to a lamp, the current consumption is as high as when an intelligent compact
camera is connected.
Cameras
Digital CCD/CMOS Cameras
| Model | FZ-S | FZ-SC | FZ-S2M | FZ-SC2M | FZ-S5M3 | FZ-SC5M3 |
|---|---|---|---|---|---|---|
| Image elements | Interline transfer reading all pixels, CCD image elements (1/3-inch equivalent) |
Interline transfer reading all pixels, CCD image elements (1/1.8-inch equivalent) |
CMOS image elements (2/3-inch equivalent) |
|||
| Color/Monochrome | Monochrome | Color | Monochrome | Color | Monochrome | Color |
| Effective pixels | 640 (H) × 480 (V) | 1600 (H) × 1200 (V) | 2448 (H) × 2048 (V) | |||
| Imaging area H x V (opposing corner) |
4.8 × 3.6 (6.0 mm) | 7.1 × 5.4 (8.9 mm) | 8.4 × 7.1 (11 mm) | |||
| Pixel size | 7.4 (μm) × 7.4 (μm) | 4.4 (μm) × 4.4 (μm) | 3.45 (μm) × 3.45 (μm) | |||
| Shutter function | Electronic shutter; select shutter speeds from 20 μs to 100 ms | |||||
| Partial function | 12 to 480 lines | 12 to 1200 lines | 4 to 2048 lines | |||
| Frame rate (Image Acquisition Time) |
80 fps (12.5 ms) | 30 fps (33.3 ms) | 25.6 fps (38.2 ms) | |||
| Lens mounting | C mount | |||||
| Field of vision, installation distance |
Selecting a lens according to the field of vision and installation distance | |||||
| Ambient temperature range |
Operating: 0 to 50 °C Storage: -25 to 65 °C (with no icing or condensation) |
Operating: 0 to 40 °C Storage: -25 to 65 °C (with no icing or condensation) |
||||
| Ambient humidity range |
Operating and storage: 35% to 85% (with no condensation) | |||||
| Weight | Approx. 55 g | Approx. 76 g | Approx. 85 g | |||
| Accessories | Instruction manual | |||||
Small CCD Digital Cameras
| Model | FZ-SF | FZ-SFC | FZ-SP | FZ-SPC |
|---|---|---|---|---|
| Image elements | Interline transfer reading all pixels, CCD image elements (1/3-inch equivalent) | |||
| Color/Monochrome | Monochrome | Color | Monochrome | Color |
| Effective pixels | 640 (H) × 480 (V) | |||
| Imaging area H x V (opposing corner) | 4.8 × 3.6 (6.0 mm) | |||
| Pixel size | 7.4 (μm) × 7.4 (μm) | |||
| Shutter function | Electronic shutter; select shutter speeds from 20 μm to 100 ms | |||
| Partial function | 12 to 480 lines | |||
| Frame rate (Image Acquisition Time) | 80 fps (12.5 ms) | |||
| Lens mounting | Special mount (M10.5 P0.5) | |||
| Field of vision, installation distance | Selecting a lens according to the field of vision and installation distance | |||
| Ambient temperature range | Operating: 0 to 50 °C (camera amp), 0 to 45 °C (camera head) Storage: -25 to 65 °C (with no icing or condensation) |
|||
| Ambient humidity range | Operating and storage: 35% to 85% (with no condensation) | |||
| Weight | Approx. 150 g | |||
| Accessories | Instruction manual, installation bracket, Four mounting brackets (M2) |
Instruction manual | ||
Intelligent Compact CMOS Cameras
| Model | FZ-SQ010F | FZ-SQ050F | FZ-SQ100F | FZ-SQ100N |
|---|---|---|---|---|
| Image elements | CMOS color image elements (1/3-inch equivalent) | |||
| Color/Monochrome | Color | |||
| Effective pixels | 752 (H) × 480 (V) | |||
| Imaging area H x V (opposing corner) |
4.51 × 2.88 (5.35 mm) | |||
| Pixel size | 6.0 (μm) × 6.0 (μm) | |||
| Shutter function | 1/250 to 1/32,258 | |||
| Partial function | 8 to 480 lines | |||
| Frame rate (Image Acquisition Time) |
60 fps (16.7 ms) | |||

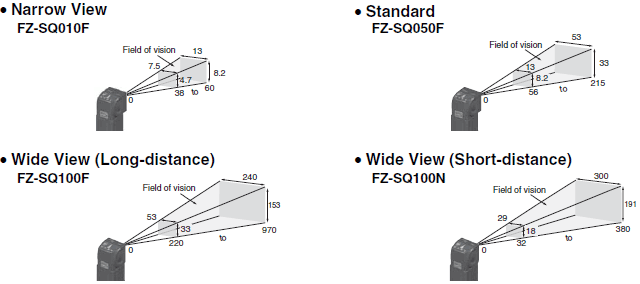

| Field of vision | 7.5 × 4.7 to 13 × 8.2 mm |
13 × 8.2 to 53 × 33 mm |
53 × 33 to 240 × 153 mm |
29 × 18 to 300 × 191 mm |
| Installation distance | 38 to 60 mm | 56 to 215 mm | 220 to 970 mm | 32 to 380 mm |
| LED class * | Risk Group2 | |||
| Ambient temperature range | Operating: 0 to 50 °C Storage: -25 to 65 °C |
|||
| Ambient humidity range | Operating and storage: 35% to 85% (with no condensation) | |||
| Weight | Approx. 150 g | Approx. 140 g | ||
| Accessories | Mounting bracket (FQ-XL), polarizing filter attachment (FQ-XF1), instruction manual and warning label |
|||
* Applicable standards: IEC62471-2
Cable, LCD Monitor
Camera Cables
| Model | FZ-VS3 (2 m) | FZ-VSB3 (2 m) | FZ-VSL3 (2 m) | FZ-VSLB3 (2 m) |
|---|---|---|---|---|
| Type | Standard | Bend resistant | Right-angle | Bend resistant Right-angle |
| Shock resistiveness (durability) | 10 to 150 Hz single amplitude 0.15 mm 3 directions, 8 strokes, 4 times | |||
| Ambient temperature range | Operation and storage: 0 to 65 °C (with no icing or condensation) | |||
| Ambient humidity range | Operation and storage: 40 to 70%RH (with no condensation) | |||
| Ambient atmosphere | No corrosive gases | |||
| Material | Cable sheath, connector: PVC | |||
| Minimum bending radius | 69 mm | 69 mm | 69 mm | 69 mm |
| Weight | Approx. 170 g | Approx. 180 g | Approx. 170 g | Approx. 180 g |
Cable Extension Unit
| Model | FZ-VSJ |
|---|---|
| Power supply voltage *1 | 11.5 to 13.5 VDC |
| Current consumption *2 | 1.5 A max. |
| Ambient temperature range | Operating: 0 to 50 °C; Storage: -25 to 65 °C (with no icing or condensation) |
| Ambient humidity range | Operating and storage: 35 to 85% (with no condensation) |
| Maximum Units connectable | 2 Units per Camera |
| Weight | Approx. 240 g |
| Accessories | Instruction Sheet and 4 mounting screws |
*1 A 12-VDC power supply must be provided to the Cable Extension Unit when connecting the Intelligent Compact Camera,
or the Lighting Controller.
*2 The current consumption shows when connecting the Cable Extension Unit to an external power supply.
or the Lighting Controller.
*2 The current consumption shows when connecting the Cable Extension Unit to an external power supply.
LCD Monitor
| Model | FZ-M08 |
|---|---|
| Size | 8.4 inches |
| Type | Liquid crystal color TFT |
| Resolution | 1,024 × 768 dots |
| Input signal | Analog RGB video input, 1 channel |
| Power supply voltage | 21.6 to 26.4 VDC |
| Current consumption | Approx. 0.7 A max. |
| Ambient temperature range | Operating: 0 to 50 °C; Storage: -25 to 65 °C (with no icing or condensation) |
| Ambient humidity range | Operating and storage: 35 to 85% (with no condensation) |
| Weight | Approx. 1.2 kg |
| Accessories | Instruction Sheet and 4 mounting brackets |
Long-distance Camera Cables
| Model | FZ-VS4 (15 m) | FZ-VSL4 (15 m) |
|---|---|---|
| Type | Standard | Right-angle |
| Shock resistiveness (durability) | 10 to 150 Hz single amplitude 0.15 mm 3 directions, 8 strokes, 4 times | |
| Ambient temperature range | Operation and storage: 0 to 65 °C (with no icing or condensation) | |
| Ambient humidity range | Operation and storage: 40 to 70%RH (with no condensation) | |
| Ambient atmosphere | No corrosive gases | |
| Material | Cable sheath, connector: PVC | |
| Minimum bending radius | 78 mm | |
| Weight | Approx. 1400 g | |
Parallel Cable
| Model | FZ-VP | FZ-VPX |
|---|---|---|
| Vibration resistiveness | 10 to 150 Hz single amplitude 0.15 mm 3 directions, 8 strokes, 4 times | |
| Ambient temperature range | Operation: 0 to 50 °C; Storage: -20 to 65 °C (with no icing or condensation) | |
| Ambient humidity range | Operation and storage: 35 to 85%RH (with no condensation) | |
| Ambient atmosphere | No corrosive gases | |
| Material | Cable sheath: heat-resistant PVC Connector: resin | |
| Minimum bending radius | 75 mm | |
| Weight | Approx. 160 g | Approx. 180 g |
LED Monitor Cable
| Model | FZ-VM |
|---|---|
| Vibration resistiveness | 10 to 150 Hz single amplitude 0.15 mm 3 directions, 8 strokes, 4 times |
| Ambient temperature range | Operation: 0 to 50 °C; Storage: -20 to 65 °C (with no icing or condensation) |
| Ambient humidity range | Operation and storage: 35 to 85%RH (with no condensation) |
| Ambient atmosphere | No corrosive gases |
| Material | Cable sheath: heat-resistant PVC Connector: PVC |
| Minimum bending radius | 75 mm |
| Weight | Approx. 170 g |
（單位：mm）
Sensor Controllers

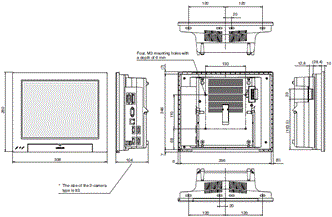

FZ5-series LCD-integrated type
FZ5-1200/-1205/-1200-10/-1205-10
FZ5-800/-805/-800-10/-805-10
Cameras
Digital CCD/CMOS Cameras
300,000-pixel camera
FZ-S
FZ-SC
2 million-pixel camera
FZ-S2M
FZ-SC2M
5 million-pixel camera
FZ-S5M3
FZ-SC5M3
Small digital CCD cameras
Camera head

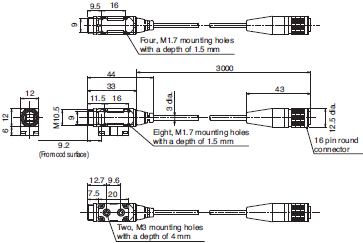

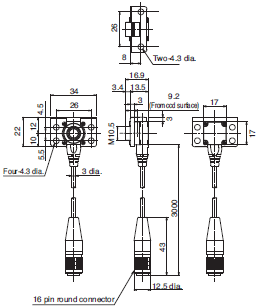

Flat camera
FZ-SF
FZ-SFC
Pen-shaped camera
FZ-SP
FZ-SPC
Camera amplifier
Can be used for both flat cameras and pen-shaped cameras
Intelligent Compact CMOS Cameras

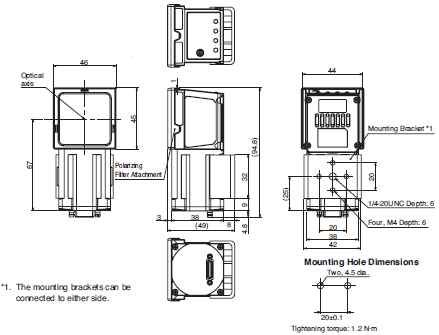

Narrow view/Standard
FZ-SQ010F
FZ-SQ050F

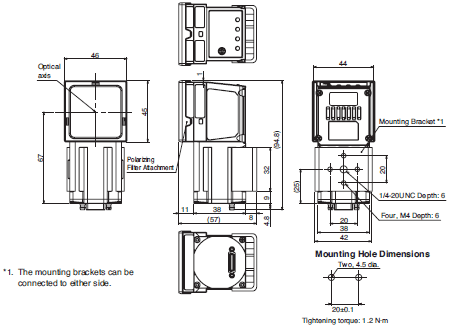

Wide View
FZ-SQ100F (long-distance)
FZ-SQ100N (short-distance)
Cables
Camera Cable

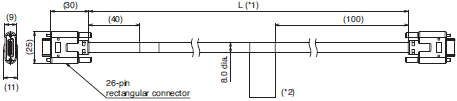

Camera Cable
FZ-VS3
Bend resistant Camera Cable
FZ-VSB3

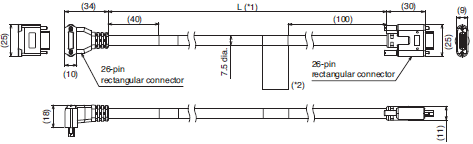

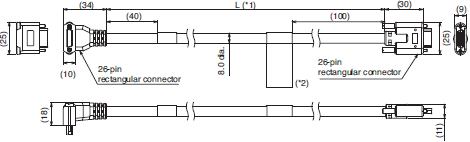

Right-angle Camera Cable
FZ-VSL3
Bend resistant Right-angle Camera Cable
FZ-VSLB3
Long-distance Camera Cable
FZ-VS4

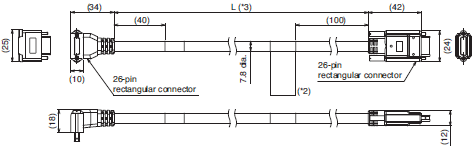

Long-distance Right-angle Camera Cable
FZ-VSL4
*1. Cable is available in 2 m/3 m/5 m/10 m.
*2. Each camera cables has polarity.
Please ensure that the name plate side of the cable is connected to the controller.
*3. Cable is available in 15 m.
*2. Each camera cables has polarity.
Please ensure that the name plate side of the cable is connected to the controller.
*3. Cable is available in 15 m.

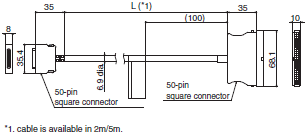

Parallel Cable
FZ-VP
FZ-VPX

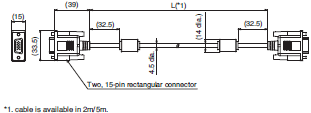

LED Monitor Cable
FZ-VM

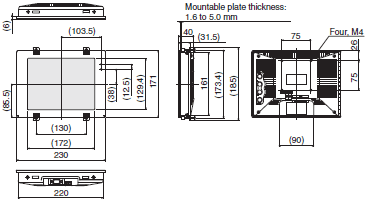

LCD Monitor
FZ-M08
Camera Cable Extension Unit
FZ-VSJ
English
Global Edition
| Catalog Name | Catalog Number [size] |
Last Update | |
|---|---|---|---|
 FZ5 Series Data Sheet |
Q203-E1-07 [1447KB] |
May 09, 2022
20220509
|
FZ5 Series Data Sheet |
如有需要請洽各所營業人員
誠睿台南所 TEL：06-2493086
誠睿台中所 TEL：04-23380790
誠睿新竹所 TEL：03-6685558
客服信箱 service@hitifa.com.tw
誠睿台南所 TEL：06-2493086
誠睿台中所 TEL：04-23380790
誠睿新竹所 TEL：03-6685558
客服信箱 service@hitifa.com.tw
如有需要請洽各所營業人員
誠睿台南所 TEL：06-2493086
誠睿台中所 TEL：04-23380790
誠睿新竹所 TEL：03-6685558
客服信箱 service@hitifa.com.tw
誠睿台南所 TEL：06-2493086
誠睿台中所 TEL：04-23380790
誠睿新竹所 TEL：03-6685558
客服信箱 service@hitifa.com.tw
