E3C-LDA[]N

E3C-LDA[]N

產品特色
Variable Laser Beam for Spot, Line, or Area Detection
商品洽詢
- 產品描述 - 種類 額定/性能 外觀尺寸 型錄 操作手冊 CAD

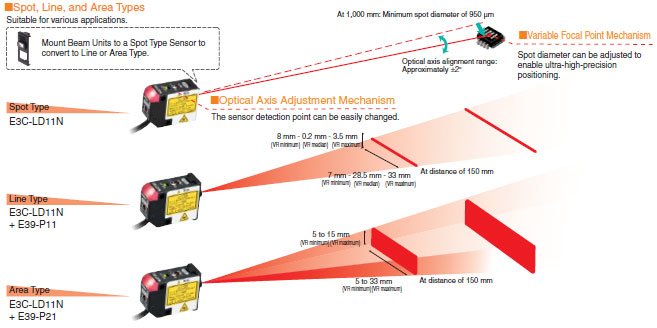

Diffuse Reflective Model

Provide ample long-distance detection of 1,000 mm.

Three beam types means a wider variety of applications.

E3C-LDA[]N 特長 2
E3C-LDA[]N 特長 3

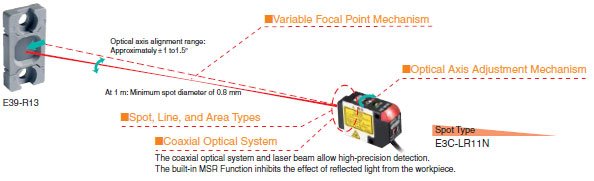

Coaxial Retroreflective Model

Easy Sensor Installation and Sensing Characteristics Equivalent to Through-beam Sensors.

E3C-LDA[]N 特長 5
E3C-LDA[]N 特長 6

Sensor Heads

Sensing method Appearance Beam
shape		 Sensing
distance		 Laser
Class		 Model
Diffuse-reflective 3849_lu_1_1 Spot *2
(variable)		 1 m Class 2 E3C-LD11N 2M
Coaxial Retro-reflective
(with MSR function)
*1		 3849_lu_1_2 Spot *2
(variable)		 7 m Class 2 E3C-LR11N 2M
Spot
(2.0-mm fixed dia.)		 7 m Class 1 E3C-LR12N 2M

*1. Select a Reflector (order separately) according to the application.
*2. Mounting a Beam Unit (sold separately) allows the use of line and area beams. or Area beam type.

Amplifier Units

Connection method Appearance Inputs/outputs Model
NPN output PNP output
Pre-wired Amplifier Units 3849_lu_2_1 2 outputs + 1 input E3C-LDA21N 2M E3C-LDA51N 2M
Amplifier Units with
Wire-saving Connectors		 3849_lu_2_2 2 outputs E3C-LDA6N E3C-LDA8N
1 output + 1 input E3C-LDA7N E3C-LDA9N

Accessories (Order Separately)

Wire-saving connectors (Required for models for Wire-saving Connectors.)

*Protective stickers: provided.

Item Appearance Cable length No. of conductors Model
Master
Connector		 3849_lu_3_1 2 m 4 E3X-CN21
Slave
Connector		 3849_lu_3_2 2 E3X-CN22

Beam Unit (for E3C-LD11N/LR11N)

A Beam Unit is not provided with the Sensor and must be ordered separately as required.

Applicable Sensor Head Appearance Beam shape Model
E3C-LD11N 3849_lu_4_1 Line E39-P11
Area E39-P21
E3C-LR11N 3849_lu_4_2 Line E39-P31
Area E39-P41

Mounting Bracket

A Mounting Bracket is not provided with the Amplifier Unit and must be ordered separately as required.

Appearance Model Quantity
3849_lu_5_1 E39-L143 1

Note: Refer to E39-L/-S/-R on your OMRON website for details.

End Plate

A End Plate is not provided with the Amplifier Unit and must be ordered separately as required.

Appearance Model Quantity
3849_lu_6_1 PFP-M 1

Note: Refer to PFP-[]N/-M/-S on your OMRON website for details.

Reflectors (Required when using retro-reflective models)

A Reflector is not provided with the Sensor head. Be sure to order a Reflector separately.

Type Appearance Model
Standard
Effective area: 23 × 23 mm *		 3849_lu_7_1 E39-R12
Standard
Effective area: 7 × 7 mm *		 3849_lu_7_2 E39-R13
Transparent object detection
Effective area: 23 × 23 mm *		 3849_lu_7_3 E39-R14
Sheet (cuttable)
Effective area: 195 × 22 mm		 3849_lu_7_4 E39-RS4
Sheet (cuttable)
Effective area: 108 × 46 mm		 3849_lu_7_5 E39-RS5

Note: Refer to E39-L/-S/-R on your OMRON website for details.
* Use a standard model (E39-R12/R13) if the distance from the Sensor is 400 mm or more. Use the short-distance model (E39-R14) if the distance is less than 400 mm.

Sensor Heads

Type Diffuse-reflective Coaxial Retro-reflective (with MSR function)
Item E3C-LD11N E3C-LD11N +
E39-P11		 E3C-LD11N +
E39-P21		 E3C-LR11N E3C-LR11N +
E39-P31		 E3C-LR11N +
E39-P41		 E3C-LR12N
Light source
(wavelength)		 Red semiconductor laser diode
(650 nm),3 mW max.
(JIS Class 2, IEC/EN Class 2,
and FDA Class 2)		 Red semiconductor laser diode
(650 nm), 3 mW max. (JIS Class 2,
IEC/EN Class 2, and FDA Class 2)		 1 mW max.
(JIS Class 1,
IEC/EN Class
1, and FDA
Class 2)
Sensing
distance
*1, *2		 Super
High-speed
Mode
(SHS)		 30 to 250 mm 2 m 700 mm 400 mm 2 m
High-speed
Mode (HS)		 30 to 250 mm 2 m 700 mm 400 mm 2 m
Standard
Mode (Stnd)		 30 to 700 mm 5 m 1,300 mm 700 mm 5 m
Giga Mode
(GIGA)		 30 to 1000 mm 7 m 1,700 mm 900 mm 7 m
Focus *3 0.8 mm max.
(at distances
up to 300 mm)		 33 mm
(at 150 mm)		 33 × 15 mm
(at 150 mm)		 0.8 mm max.
(at distances
up to 1,000
mm)		 28 mm
(at 150 mm)		 28 × 16 mm
(at 150 mm)		 2.0-mm dia.
(at distance up
to 1,000 mm)
Functions Variable focal point mechanism (focus adjustment) *4,
optical axis adjustment mechanism (axis adjustment)
Indicators LDON indicator: Green; Operation indicator: Orange
Ambient
illumination
(Receiver side)		 Incandescent lamp: 3,000 lx
Ambient
temperature		 Operating: -10 to 55°C, Storage: -25 to 70°C (with no icing or condensation)
Ambient
humidity		 Operating/storage: 35% to 85% (with no condensation)
Insulation
resistance		 20 MΩ min. at 500 VDC
Dielectric
strength		 1,000 VAC at 50/60 Hz for 1 minute
Shock
resistance		 Destruction: 300 m/s2 6 directions 3 times each (up/down, right/left, forward/backward)
Vibration
resistance		 Destruction: 10 to 150 Hz with double amplitude of 0.7 mm, in X, Y, and Z directions for 80 min each
Degree of
protection		 IP40 (IEC) IP40 (IEC 60529)
Connection
method		 Connector (standard cable length: 2 m)
Materials Case and cover: ABS
Front surface filter: Methacrylic resin		 Case and cover: ABS
Front surface filter: Glass
Weight
(packed state)		 Approx. 85 g Approx. 100 g
Accessories Instruction manual, Laser warning labels (English)

*1. The sensing distance of E3C-LD11N is the value of the white paper.
*2. The sensing distance of E3C-LR[][]N is values apply when a E39-R12 Reflector is used.
*3. The beam radius is the value for the middle measurement distance and indicates a typical value for the middle sensing distance.
The radius is defined by light intensity of 1/e2 (13.5%) of the central light intensity.
Light will extend beyond the main beam and may be affected by conditions surrounding the object being measured.
*4. The E3C-LR12N has a fixed beam size (the focal point cannot be changed).

Amplifier Units

Model NPN output E3C-LDA21N E3C-LDA6N E3C-LDA7N
PNP output E3C-LDA51N E3C-LDA8N E3C-LDA9N
Connection
method *2		 Pre-wired Wire-saving Connector
Applicable Amplifier Unit E3C-L[][][]N
Outputs 2 outputs 2 outputs 1 output
External input *1 1 input --- 1 input
Supply voltage 12 to 24 VDC ±10%, ripple (p-p) 10% max.
Power consumption Power consumption: 1080 mW max. (when the power supply voltage is 24 V, the current consumption is 45 mA max.)
Control output Load power supply voltage: 26.4 VDC, open collector output type (depends on the NPN/PNP output format)
Load current: 100 mA max. for 1 to 3 units use, 20 mA max. for 4 or more units joined.
Residual voltage: Load current less than 10 mA: 1 V max., load current 10 to 100 mA: 2 V max.
Off-state current: 0.1 mA max.
Indicators 7-segment displays (Threshold Level display: green, Incident Light Level display: white)
Display direction: Switchable between normal and reversed.
OUT indicator (orange), L/D indicator (orange), ST indicator (blue), DPC indicator (green),
and OUT selection indicator (orange, only on models with 2 outputs)
Protection circuits Power supply reverse polarity protection, output short-circuit protection, and output reverse polarity protection
Response
time		 Super-high-
speed
mode (SHS)		 Operate or reset: 80 μs
High-speed
mode (HS)		 Operate or reset: 250 μs
Standard
mode
(Stnd)		 Operate or reset: 1 ms
Giga mode
(GIGA)		 Operate or reset: 4 ms
Sensitivity adjustment Smart Tuning (2-point tuning, full auto tuning, power tuning, percentage tuning) or manual adjustment
Maximum connectable Units 16
No. of Units
for mutual
interference
prevention
*3		 Super
High-speed
Mode (SHS)		 0
Note: The mutual interference prevention function is disabled when the detection mode is set to High Speed mode (SHS).
High-speed
Mode (HS)		 10
Standard
Mode (Stnd)		 10
Giga Mode
(GIGA)		 10
Functions Dynamic
power
control (DPC)		 Provided
Timer Select from timer disabled, OFF-delay, ON-delay or one-shot timer. 1 to 9,999 ms
Zero reset Negative values can be displayed. (Threshold value is shifted.)
Resetting
settings		 Initial reset (factory defaults)
Power tuning Select from ON or OFF.
Output 1 Select from normal detection mode or area detection mode.
Output 2 Select from normal detection mode, alarm output mode or error output mode. ---
External input Select from input OFF,
tuning, power tuning,
emission OFF or zero reset.		 --- Select from input OFF,
tuning, power tuning,
emission OFF or zero reset.
Hysteresis
width		 Select from standard setting or user setting.
Ambient temperature
range		 Operating:
Groups of 1 or 2 Amplifier Units: -25 to 55°C, Groups of 3 to 10 Amplifier Units: -25 to 50°C,
Groups of 11 to 16 Amplifier Units: -25 to 45°C
Storage:
-30 to 70°C (with no icing or condensation)
Ambient humidity range Operating and storage: 35 to 85% (with no condensation) within the surrounding air temperature range shown above
Altitude 2000 m max.
Installation environment Pollution degree 3 (as per IEC 60947-1)
Insulation resistance 20 MΩ (at 500 VDC)
Dielectric strength 1,000 VAC at 50/60 Hz for 1 min
Vibration resistance (destruction) 10 to 55 Hz with a 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance
(destruction)		 500 m/s2 for 3 times each in X, Y, and Z directions
Weight
(packed state/sensor only)		 Approx. 115 g/
approx. 75 g		 Approx. 60 g/approx. 20 g
Materials Case Polycarbonate (PC)
Protective
cover		 Polycarbonate (PC)
Cable PVC
Accessories Instruction manual, compliance sheet

*1. The following details apply to the input.

Contact input (relay or switch) Non-contact input (transistor) Input time *1-1
NPN ON: Shorted to 0 V
(Sourcing current: 1 mA max.)		 ON: 1.5 V max.
(Sourcing current: 1 mA max.)		 ON: 9 ms min.
OFF: 20 ms min.
OFF: Open or shorted to Vcc OFF: Vcc - 1.5 V to Vcc
(Leakage current: 0.1 mA max.)
PNP ON: Shorted to Vcc
(Sinking current: 3 mA max.)		 ON: Vcc - 1.5 V to Vcc
(Sinking current: 3 mA max.)
OFF: Open or shorted to 0 V OFF: 1.5 V max.
(Leakage current: 0.1 mA max.)

*1-1. Input time is 25 ms (ON)/(OFF) only when (in tUnE) input is selected.

*2. Separately purchase the E3X-CN21 Master Connector (4-conductor) when using this product as a single unit or as a master unit, or the E3X-CN22 Slave Connector (2-conductor) when using as a slave unit. Either Connector can be used.
*3. The tuning will not change the number of units. In standard mode and giga mode, set the threshold value to 400 or more.

（單位：mm）

Sensor Heads

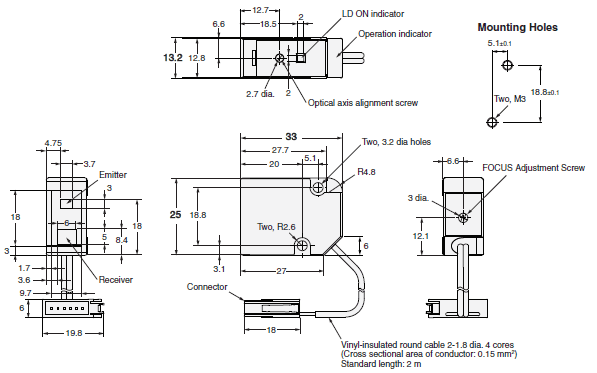

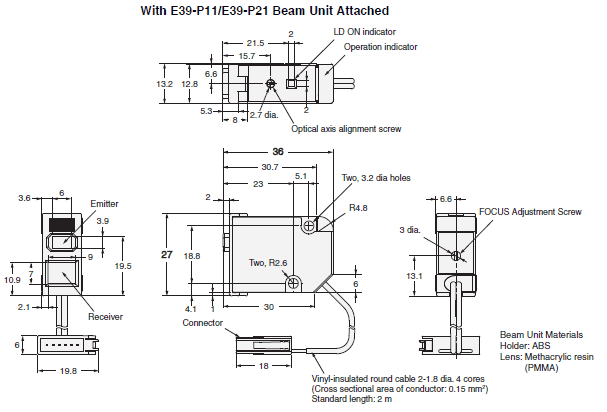

E3C-LD11N

E3C-LDA[]N 外觀尺寸 1
E3C-LDA[]N 外觀尺寸 2

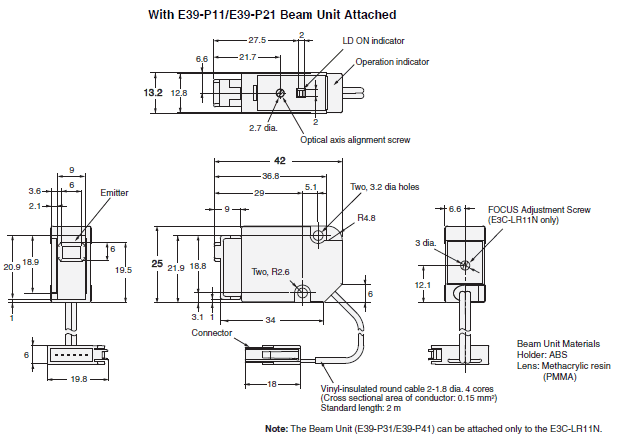

E3C-LR11N
E3C-LR12N

E3C-LDA[]N 外觀尺寸 3
E3C-LDA[]N 外觀尺寸 4

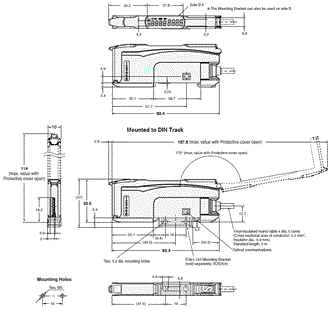

Amplifier Units

Pre-wired Amplifier Units
E3C-LDA21N
E3C-LDA51N

E3C-LDA[]N 外觀尺寸 5

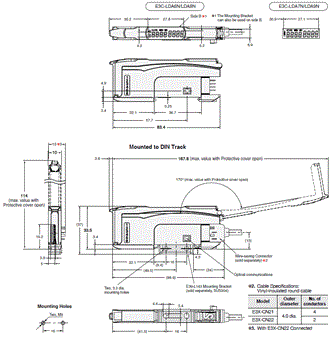

Amplifier Units with Wire-saving Connectors
E3C-LDA6N
E3C-LDA7N
E3C-LDA8N
E3C-LDA9N

E3C-LDA[]N 外觀尺寸 6

Accessories (Sold Separately)

Wire-saving Connectors

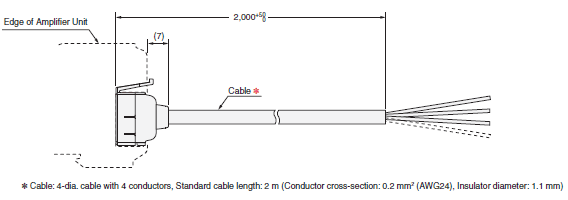

Master Connector
E3X-CN21

E3C-LDA[]N 外觀尺寸 8

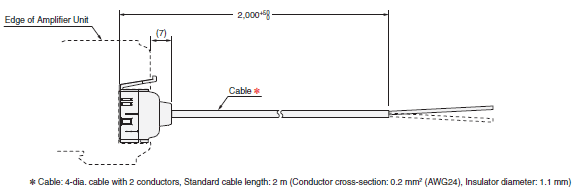

Slave Connector
E3X-CN22

E3C-LDA[]N 外觀尺寸 9
