Since values conforming to the standards are directly applied as inspection criteria, there is no dependency on the skill and expertise of the programmer.
*1: IATF (ISO/TS) 16949, IPC quality standards, etc.
VT-S1080
產品特色
Innovating manufacturing through Omron advanced inspection technology
Minimization of programming efforts by quantitative inspection and AI-assisted qualitative inspection

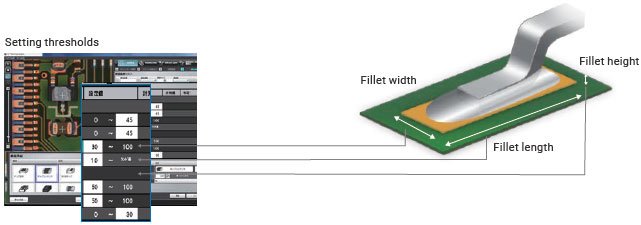

Quantitative inspection conforming to international standards*1

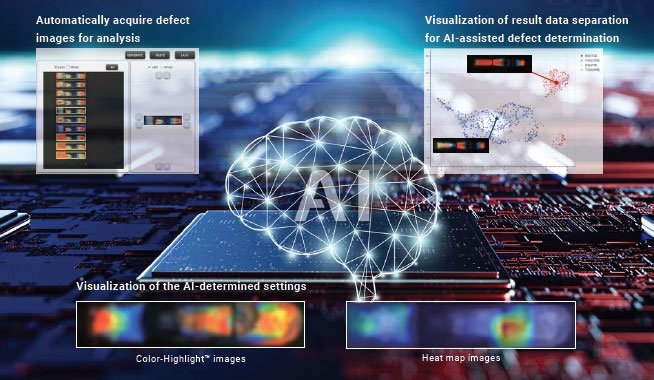

Using AI technology to minimize programming and visual inspection efforts
Omron is developing a variety of reliable AI tools to address customer concerns such as defects going undetected and/or managing large amounts of machine learning data when using AI for inspection.
By controlling everything from AI image acquisition to model creation and testing, Omron provides end-to-end support to address all concerns about the introduction of AI that caters to production floor needs.
High-precision solder shape reconstruction helps achieve zero defect products

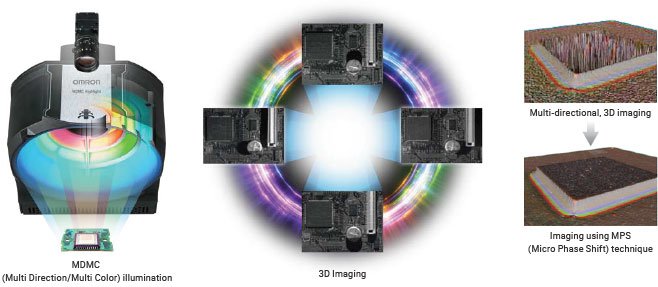

Equipped with Omron's own MDMC (Multi Direction/Multi Color) illumination and new MPS (Micro Phase Shift) moiré technique, the system achieves highly robust*2 and reliable inspection performance. [Patented]
*2: Strong against noise that effects the judgement of inspection results such as shadows, secondary reflections, abnormal
defect shapes and other uncertain factors.
*2: Strong against noise that effects the judgement of inspection results such as shadows, secondary reflections, abnormal
defect shapes and other uncertain factors.

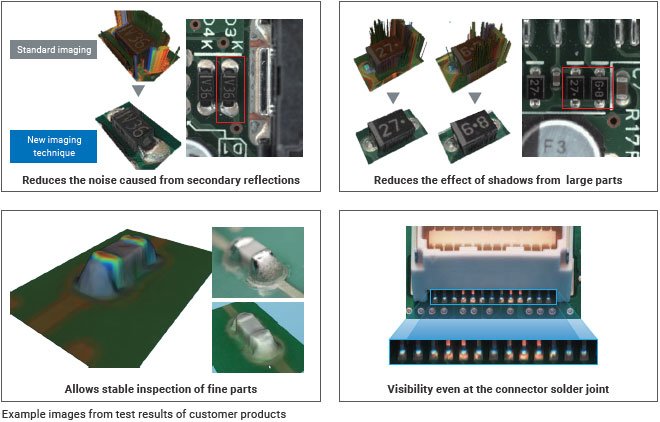

Example of high-precision solder shape reconstruction

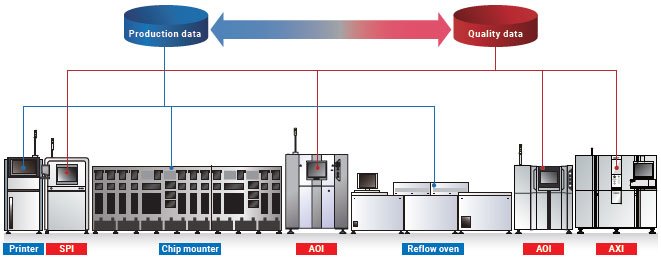

Maximizing good-quality throughput by using M2M*1 system focusing on quality
*1: Abbreviation of machine-to-machine
It is a mechanism to optimize the quality and equipment operation status without human intervention, made possible
by enabling autonomous communication and exchange of information between various connected, production
equipment.
It is a mechanism to optimize the quality and equipment operation status without human intervention, made possible
by enabling autonomous communication and exchange of information between various connected, production
equipment.

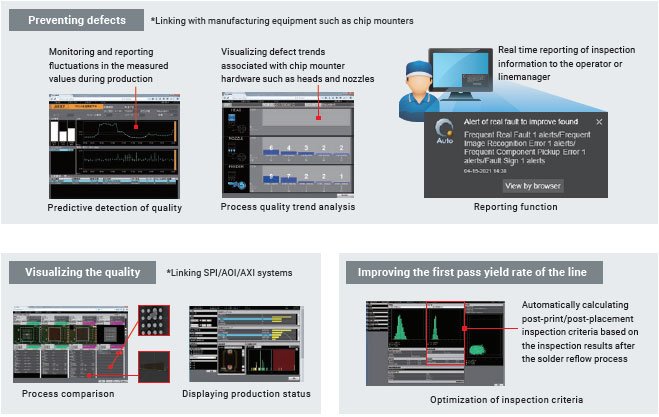

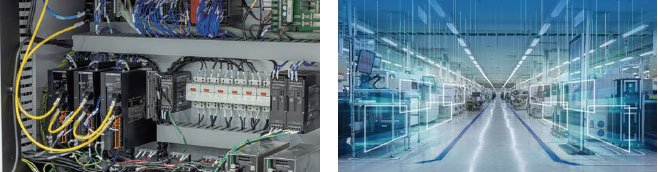

Continuous manufacturing made possible by equipment monitoring and predictive maintenance
Equipped with Omron control hardware technology, this system allows real-time collection of information from all the IoT connected devices inside the inspection equipment. It allows the equipment status to be visualized, enabling predictive maintenance and quality traceability.
If you have a question about this product, please click on "Inquiry" above.
Hardware configuration
| Type | VT-S1080 | |
|---|---|---|

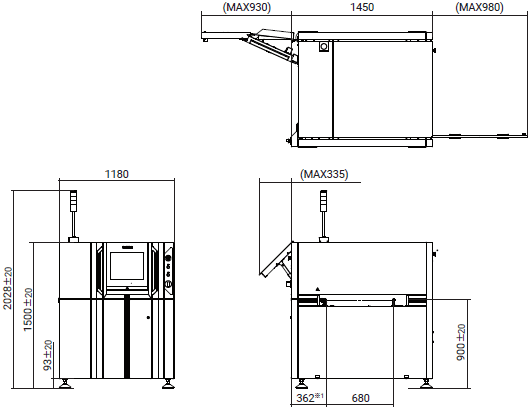

| Outer dimensions | 1180(W) x 1450(D) x 1500(H)mm | |
| Weight | Approx. 1250 kg | |
| Power supply | Voltage | 200 to 240 V AC (Single phase); Voltage fluctuation range ±10% |
| Rated power | 2.0 kVA (Maximum current 10 A) | |
| Line height | 900±20mm | |
| Air supply | Not required | |
| Operating temperature range | 10 to 35°C | |
| Operating humidity range | 35 to 80% RH (Non-condensing) | |
| Vision system | Imaging system | 12M pixel camera |
| Inspection principle | MDMC*1 illumination + 3D reconstruction through MPS*2 technology |
|
| Image resolution | 12.5μm | |
| FOV | 50.0 x 37.5mm | |
*1:Multi Direction/Multi Color
*2:Micro Phase Shift
Functional specifications
| Supported PCB size | 50(W) x 50(D)～510(W) x 680(D)mm |
|---|---|
| Weight | (Max) 4 kg |
| Thickness | 0.4～4mm |
| Clearance | Above the conveyor belt: 54 mm or less; Below the conveyor belt: 50 mm or less (Including board thickness/curvature/bend/part tolerance, etc.) |
| Height measurement range |
25mm |
| Inspection item | Component height, lift, tilt, missing or wrong component, wrong polarity, flipped component, OCR inspection, 2D code, component offset (X/Y/rotation), fillet (height/length, end joint width, wetting angle, side joint length), exposed land, foreign material, land error, lead offset, lead posture, lead presence, solder ball, solder bridge, distance between components, component angle |
（單位：mm）
