The XS5 NEXT Series uses a special PVC cable that limits deterioration of the cable sheath due to both water-soluble and water-insoluble cutting oil.
Omron's proprietary molding technique prevents cutting oil intrusion from mating sections. Moreover, using the same new HNBR/fluoride rubber as in oil-resistant components of connector mating sections helps improve the overall oil resistance.
XS5 NEXT Series
產品特色
Round Oil-resistive Smartclick Connectors for E2E NEXT Series, that are Resistant to Oil, and that Reduce Installation Work
Better Cable Oil Resistance, and Improved Overall Oil Resistance with New Rubber Material in Mating Sections

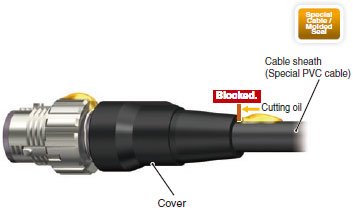

Special PVC Cable + Molding Sealing Method

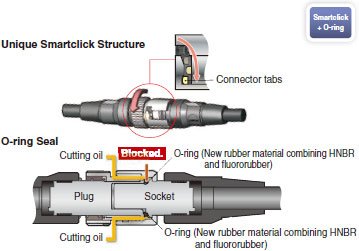

Smartclick Structure + O-ring

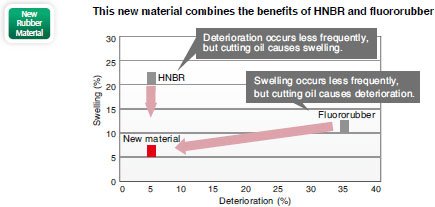

[Patented] New Rubber Material Combining and Fluororubber
Hydrogenated nitrile butadiene rubber (HNBR), which provides superior resistance to oil, was blended with fluororubber in a unique OMRON compound to develop a new rubber that provides superior resistance to both swelling and deterioration due to cutting oil.
It is used in seals for joints and moving sections that prevent ingress to prevent deterioration and destruction of the seal due to cutting oil, resulting in increased oil resistance performance.

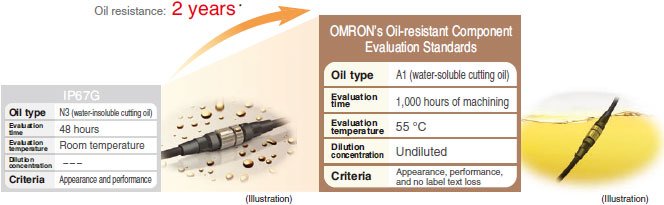

P67G quality and Omron's Oil Resistance Component Evaluation System for two years of proven oil resistant capability
* Applicable oil types: specified in JIS K 2241:2000
“2-year oil resistance” refers to median values (=Typical values) of the product designs and the oil-resistance performance
evaluation results.
Products to be shipped will have around 2 years of oil resistance; actual oil resistance will vary depending on the product.
“2-year oil resistance” refers to median values (=Typical values) of the product designs and the oil-resistance performance
evaluation results.
Products to be shipped will have around 2 years of oil resistance; actual oil resistance will vary depending on the product.

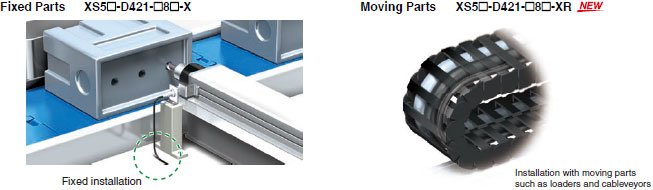

Varied product lineup to suit the application

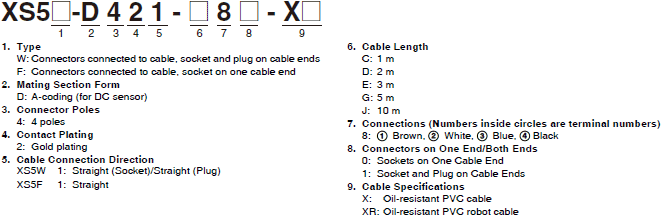

Model Number Legend
Use this legend when determining the product specifications from the model number. When ordering, use a model number from the table in Ordering Information.
Ordering Information
Connectors
| Type | Cable outer diameter (mm) |
Cable specifications |
Cable length (m) |
Model | UL |
|---|---|---|---|---|---|
| Socket and Plug on Cable Ends |
6 dia. | Oil-resistant PVC cable |
1 | XS5W-D421-C81-X | UL2238 certified (File no. E207683) |
| 2 | XS5W-D421-D81-X | ||||
| 3 | XS5W-D421-E81-X | ||||
| 5 | XS5W-D421-G81-X | ||||
| 10 | XS5W-D421-J81-X | ||||
| 6 dia. | Oil-resistant PVC robot cable |
1 | XS5W-D421-C81-XR | ||
| 2 | XS5W-D421-D81-XR | ||||
| 3 | XS5W-D421-E81-XR | ||||
| 5 | XS5W-D421-G81-XR | ||||
| 10 | XS5W-D421-J81-XR | ||||
| Sockets on One Cable End |
6 dia. | Oil-resistant PVC cable |
1 | XS5F-D421-C80-X | |
| 2 | XS5F-D421-D80-X | ||||
| 3 | XS5F-D421-E80-X | ||||
| 5 | XS5F-D421-G80-X | ||||
| 10 | XS5F-D421-J80-X | ||||
| 6 dia. | Oil-resistant PVC robot cable |
1 | XS5F-D421-C80-XR | ||
| 2 | XS5F-D421-D80-XR | ||||
| 3 | XS5F-D421-E80-XR | ||||
| 5 | XS5F-D421-G80-XR | ||||
| 10 | XS5F-D421-J80-XR |
Accessories (Sold Separately)
Connector Covers

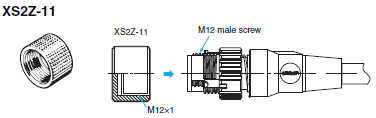

Water-resistive Covers
| Model | Material | Suitable connector | Remarks | |
|---|---|---|---|---|
| Model | Mounting portion | |||
| XS2Z-11 | Brass/ nickel plated |
XS5W | M12 male screw | This provides IP67 levels of protection. When mounting the Water-resistive Cover to a Connector, be sure to apply a torque range between 0.39 and 0.49 N·m to tighten the Water-resistive Cover. |

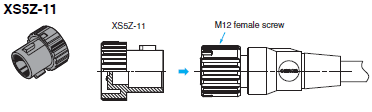

| XS5Z-11 | PBT | XS5F/XS5W | M12 female screw | This provides IP67 levels of protection. This uses the Smart click mechanism. There's no need to keep track of locking torque. |
Water-resistive Covers

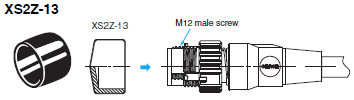

Dust Covers
| Model | Material | Suitable connector | Remarks | |
|---|---|---|---|---|
| Model | Mounting portion | |||
| XS2Z-13 | Rubber/ black |
XS5W | M12 male screw | The Dust Cover is for dust prevention and does not ensure IP67 degree of protection. When mounting the Dust Cover to a connector, be sure to press the Dust Cover onto the Connector until the Connector is fully inserted into the Dust Cover. |
| XS2Z-14 | XS5F/XS5W | Contact blocks (female contact) |
||
| XS2Z-15 | M12 female screw | |||
Dust Covers
Ratings and Specifications
| Rated current | 4 A |
|---|---|
| Rated voltage | 250 VDC |
| Contact resistance (connector) | 40 mΩ max. (at 20 mV max., 100 mA max.) |
| Insulation resistance | 1,000 MΩ min. (at 500 VDC) *1 |
| Dielectric strength (connector) | 1,500 VAC for 1 minute (leakage current: 1 mA max.) |
| Degree of protection | IP67 (IEC60529) IP69K (ISO20653 (formerly DIN Standard 40050 PART9)) OMRON’s Oil-resistant Component Evaluation Standards *2 Cutting oil type JIS K 2241:2000-specification cutting oil, at 35°C or below) |
| Insertion tolerance | 50 times |
| Lock strength | Tensile: 100 N/15 s, Torsion: 1 N·m/15 s |
| Cable holding strength | Tensile: 100 N/15 s, Torsion: 1 N·m/15 s |
| Lock operating force | 0.1 to 0.25 N·m |
| Ambient operating temperature range | -25 to +70°C *3 |
| Ambient humidity range | 20 to 85%RH |
*1. State at shipping.
*2. “OMRON’s Oil-resistant Component Evaluation Standards” are OMRON’s own durability evaluation standards.
Protection performance with oil-resistive connector (XS5F/W-X) correctly mated.
This performance does not apply if an oil-resistive connector (XS5F/W-X) is missing, and cord wiring is exposed.
*3. Use the robot cable within a temperature range of 0 to 70°C to avoid the wire breakage when moving.
Materials and Finishes
| Item | XS5F/W-X | XS5F/W-XR |
|---|---|---|
| Oil-resistant PVC cable | Oil-resistant PVC robot cable | |
| Contacts | Copper alloy/Gold plating | |
| Fixtures | Zinc alloy/Nickel plating | |
| Fixtures (Lock) * | Stainless | |
| Pin block | PBT resin | |
| O-ring | Material combining HNBR and fluororubber | |
| Cover | PBT resin | |
| Cable | UL 758 (AWM) 6 mm dia. AWG20 |
UL 758 (AWM) 6 mm dia. AWG21 |
* Only plug

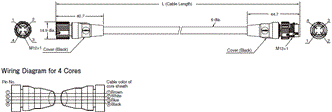

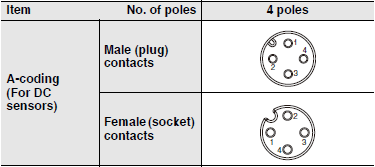

Connector Pinout Diagram (from Mating Side)
（單位：mm）
Both end connector type
XS5W-D421-[]81-X
XS5W-D421-[]81-XR

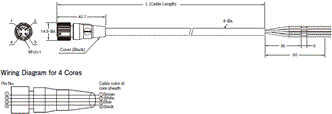

One end connector type
XS5F-D421-[]80-X
XS5F-D421-[]80-XR
