• Mounting area reduced by 35% (in comparison with 40-pole XW2B Units) to contribute to downsizing control panels and automatic equipment.
• Fallout prevention for terminal screws.
• Round or forked crimp terminals can be used.
• Mount to DIN Track or via screws.
Unique DIN Track lock can maintain open status during DIN Track attachment and removal.
• Terminal cover can be locked open.
• Screw terminals are arranged by color in groups of five to simplify counting terminal numbers.
| Mounted Connector |
No. of poles | Model | Mounted Connector model | Cable Connector model |
|---|---|---|---|---|
| XG4A MIL Connectors |
20 | XW2D-20G6 | XG4A-2031 | XG4M-2030-T |
| 34 | XW2D-34G6 | XG4A-3431 | XG4M-3430-T | |
| 40 | XW2D-40G6 | XG4A-4031 | XG4M-4030-T | |
| XW2D-40G6-RF *1 | XG4A-4031 | XG4M-4030-T | ||
| XW2D-40G6-RM *2 | XG4A-4031 | XG4M-4030-T | ||
| 50 | XW2D-50G6 | XG4A-5031 | XG4M-5030-T | |
| MR Sockets | 20 | XW2D-20X6 | MR-20RFD2 *3 | MR-20M *3 |
| 34 | XW2D-34X6 | MR-34RFD2 *3 | MR-34M *3 | |
| 50 | XW2D-50X6 | MR-50RFD2 *3 | MR-50M *3 | |
| MR Plugs | 20 | XW2D-20Y6 | MR-20RMD2 *3 | MR-20F*3 |
| 34 | XW2D-34Y6 | MR-34RMD2 *3 | MR-34F *3 | |
| 50 | XW2D-50Y6 | MR-50RMD2 *3 | MR-50F *3 |
Refer to the XW2Z Datasheet.
| Rated current | 1 A |
|---|---|
| Rated voltage | 125 VAC, 24 VDC |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength | 500 VAC for 1 min (leakage current: 1 mA max.) |
| Ambient operating temperature | 0 to 55°C |
（單位：mm）

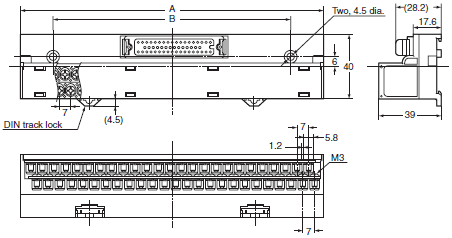

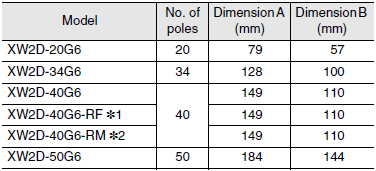

Note: There is only one DIN Track lock located in the center of the terminal block for a 20-pole Unit.

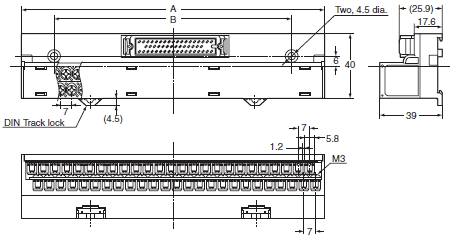

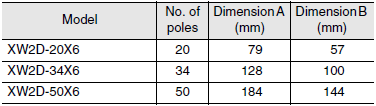

Note: There is only one DIN Track lock located in the center of the Connector for a 20-pole Unit.

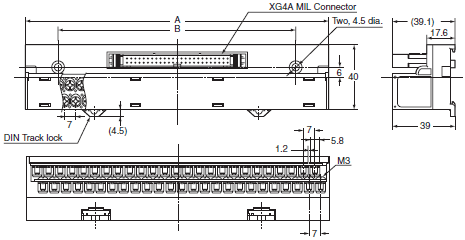

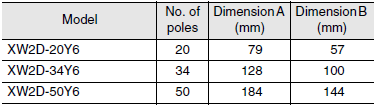

Note: There is only one DIN Track lock located in the center of the terminal block for a 20-pole Unit.
